(35.204.550) - VAR - 334195, 758294, 331844 - REMOTE CONTROL VALVE, RESERVOIR, DUST CAP

Запчасти Case IH FARMALL 120U (35.204.550) - VAR - 334195, 758294, 331844 - REMOTE CONTROL VALVE, RESERVOIR, DUST CAP (35) - HYDRAULIC SYSTEMS

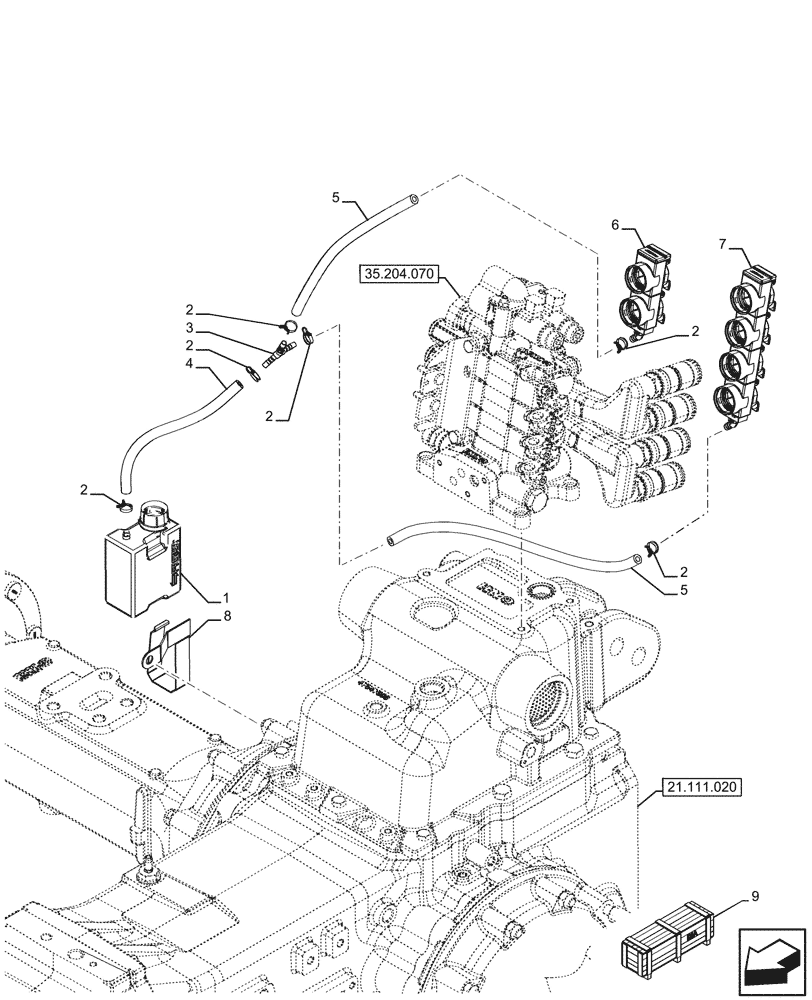

Схема запчастей Case IH FARMALL 120U - (35.204.550) - VAR - 334195, 758294, 331844 - REMOTE CONTROL VALVE, RESERVOIR, DUST CAP (35) - HYDRAULIC SYSTEMS
21.111.020
2
2
3
9
1
2
5
8
2
4
2
5
2
7
6
35.204.070
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87555441

RESERVOIR, HYDRAULIC,600ml

1шт.

2

13423370

CLAMP,13.6mm - 15.1mm

6шт.

3

87397960

TEE,3 Hoses

1шт.

4

47738706

HOSE

1шт.

5

47421652

FLEXIBLE HOSE

2шт.

6

47854676

DUST CAP

RH

1шт.

7

47854673

DUST CAP

LH

1шт.

8

47132144

BRACKET

1шт.

9

718193070

DIA KIT, TRACTOR

3 Remote - 2 Coupler De Luxe, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

9

718193080

DIA KIT, TRACTOR

3 Remote - 2 Coupler De Luxe, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
