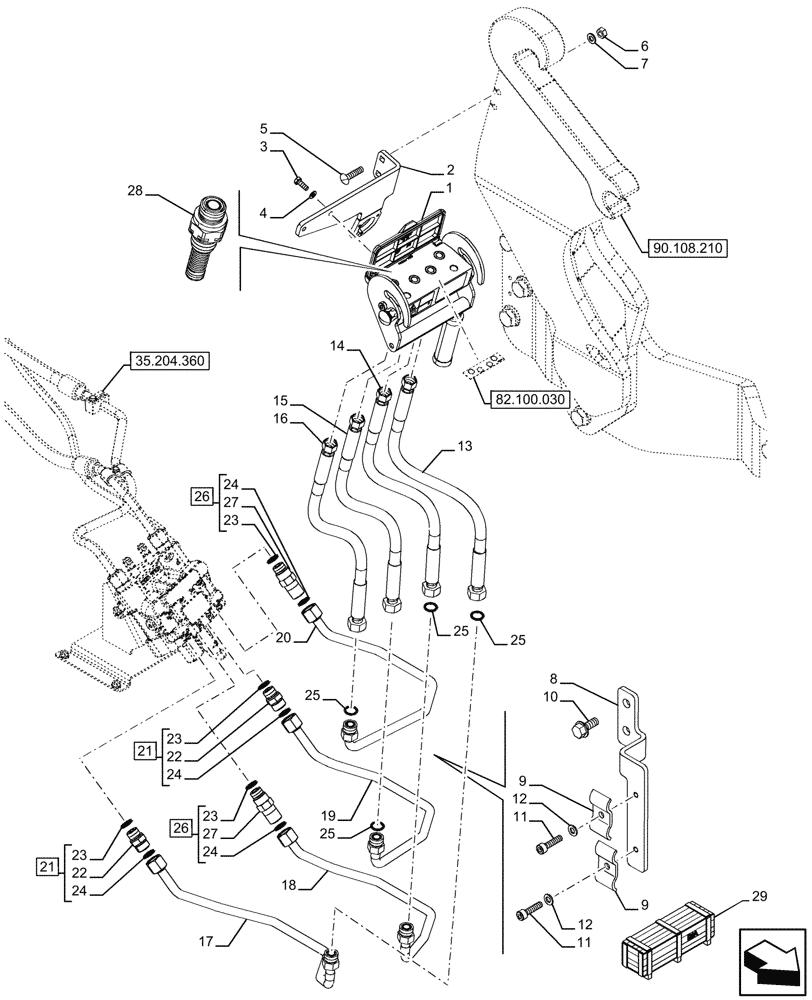

Запчасти Case IH FARMALL 120U (35.204.500) - VAR - 342003, 342004, 744712 - REMOTE CONTROL VALVE, PIPE, MULTIFASTER COUPLER, EU (35) - HYDRAULIC SYSTEMS

1

47629611

HYD CONNECTOR

Hydraulic Multifaster

1шт.

2

47950102

BRACKET

1шт.

3

86625001

BOLT,Hex, M8 x 22mm, Cl 8.8, Full Thd

2шт.

4

84188434

WASHER,8.4mm ID x 16mm OD x 1.6mm Thk

2шт.

5

87682395

CARRIAGE BOLT,Short Sq Nk, M10 x 1.5 x 45mm, Cl 10.9

2шт.

6

100016

NUT,M10 x 1.5, Cl 8

2шт.

7

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

2шт.

8

47629614

BRACKET

1шт.

9

84475431

BRACKET

2шт.

10

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

11

9832203

HEX SOC SCREW,M6 x 25mm, Cl 8.8, Full Thd

2шт.

12

11194371

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.4mm Thk

2шт.

13

47714515

HOSE

Loader Bucket Tip

1шт.

14

47714514

HOSE

Loader Bucket Scoop

1шт.

15

47714513

HOSE

Loader Raise

1шт.

16

47714511

HOSE

Loader Lower

1шт.

17

47714499

PIPE

from Inching Valve to Hydraulic Multifaster

1шт.

18

47714497

PIPE

from Inching Valve to Hydraulic Multifaster

1шт.

19

47714495

PIPE

from Inching Valve to Hydraulic Multifaster

1шт.

20

47714493

PIPE

from Inching Valve to Hydraulic Multifaster

1шт.

21

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

ASSY, Incl 22, 23(Qty 1), 24 (Qty 1)

2шт.

22

NSS

NOT SOLD SEPARAT

Connector, Incl in 21

1шт.

23

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

4шт.

24

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

25

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

26

87480324

HYD CONNECTOR

ASSY, Incl 23(Qty 1), 24 (Qty 1), 27

2шт.

27

NSS

NOT SOLD SEPARAT

Connector, Incl in 26

1шт.

28

87616935

SERVICE KIT,3/8” COUPLING, THREAD SIZE 13/16”-16 UN 2A

Incl. Spring and External Slider

4шт.

29

718241010

DIA KIT, TRACTOR

Pipes KIT for 80 Lt Mechanical Mid Mount Valve, Incl 1 - 24, 26, 27

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
