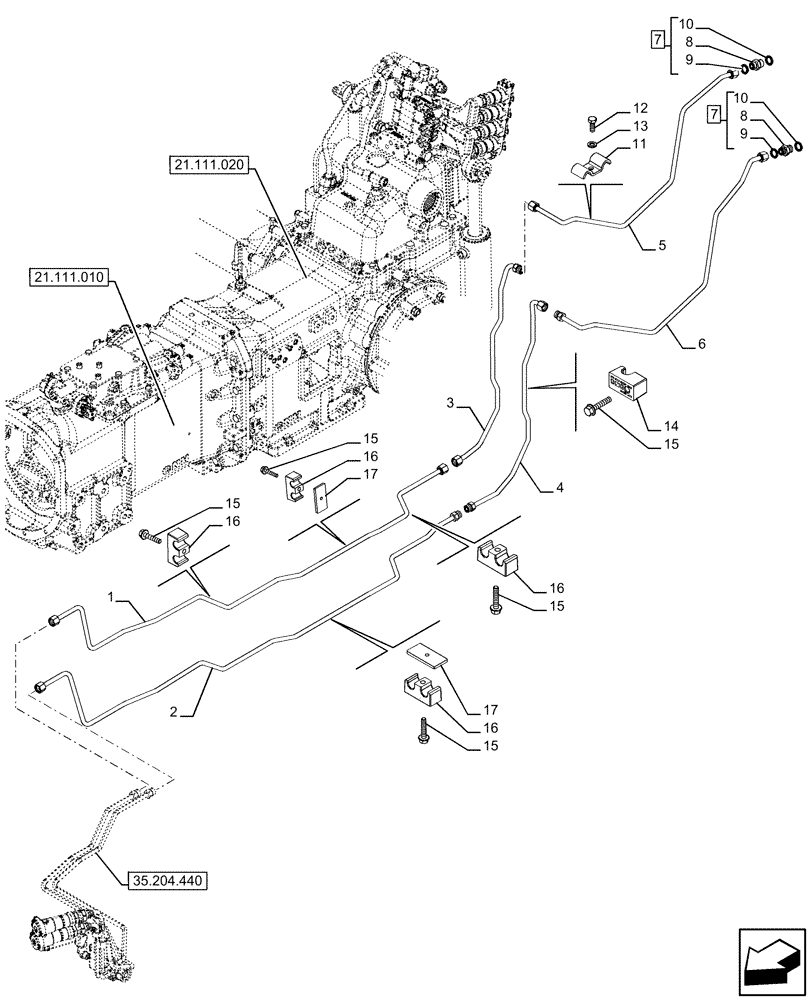

Запчасти Case IH FARMALL 120U (35.204.460) - VAR - 758610 - PIPE COUPLING, STANDARD, AXLE (35) - HYDRAULIC SYSTEMS

1

47744386

PIPE

From Remote Control Valve to 3 Point Hitch Cylinder

1шт.

2

47745128

PIPE

From Remote Control Valve to 3 Point Hitch Cylinder

1шт.

3

47744374

PIPE

From Remote Control Valve to 3 Point Hitch Cylinder

1шт.

4

47744356

PIPE

From Remote Control Valve to 3 Point Hitch Cylinder

1шт.

5

47926735

PIPE

From Remote Control Valve to 3 Point Hitch Cylinder

1шт.

6

47926731

PIPE

From Remote Control Valve to 3 Point Hitch Cylinder

1шт.

7

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

ASSY, Incl 8 - 10

2шт.

8

NSS

NOT SOLD SEPARAT

Connector, Incl in 7

1шт.

9

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

10

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

11

44906584

RETAINER COLLAR,12mm ID

1шт.

12

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

13

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

14

87532290

BRACKET

1шт.

15

16286324

BOLT,Hex, M6 x 30mm, Cl 8.8

5шт.

16

84528172

BRACKET

4шт.

17

84534676

BRACKET

2шт.
