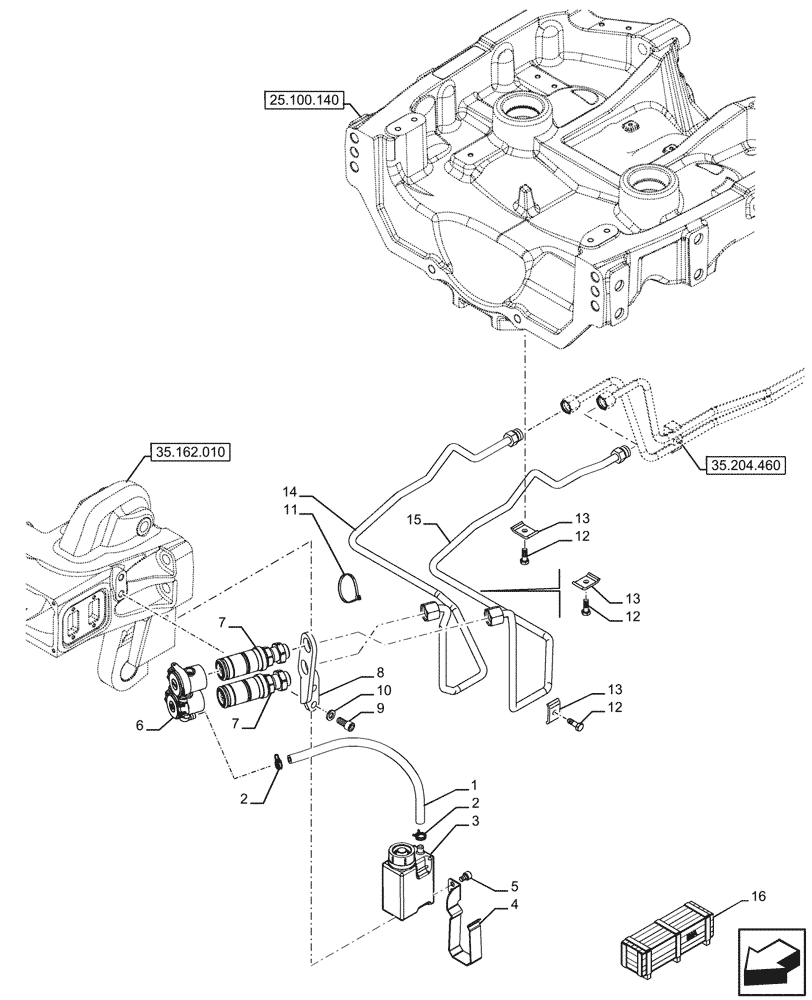

Запчасти Case IH FARMALL 120U (35.204.450) - VAR - 744942, 744943, 758336, 758578, 758610 - REMOTE CONTROL VALVE, COUPLING, FRONT, SUSPENDED FRONT AXLE (35) - HYDRAULIC SYSTEMS

1

47778642

FUEL HOSE

1шт.

2

13423371

HOSE CLAMP,13.6mm - 15.1mm

2шт.

3

84527523

BOTTLE

1шт.

4

47682077

BRACKET

1шт.

5

2168745

SCREW,Hex, M8 x 12mm, Cl 8.8

2шт.

6

47877601

DUST CAP

1шт.

7

84413196

COUPLING, QUICK, FEM

2шт.

8

47722208

BRACKET

1шт.

9

87016466

HEX SOC SCREW,M12 x 25mm, Cl 8.8, Full Thd

1шт.

10

10520021

WASHER,12.2mm ID x 22mm OD x 3mm Thk

1шт.

11

14560187

COLLAR,199mm L

1шт.

12

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

13

84519154

HOSE CLAMP

3шт.

14

47676045

PIPE

3 Point Hitch Lift

1шт.

15

47676007

PIPE

3 Point Hitch Lower

1шт.

16

718235020

DIA KIT, TRACTOR

Chassis Mounted D/A less FPTO F/Suspended Front Axle, Incl 4 - 12, 14, 15

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

16

718033010

DIA KIT, TRACTOR

Chassis Mounted D/A less FPTO F/Suspended Front Axle, Incl 4 - 12, 14, 15

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

16

718237020

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO F/Suspended Front Axle, Incl 4 - 12, 14, 15

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

16

718034010

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO F/Suspended Front Axle, Incl 4 - 12, 14, 15

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
