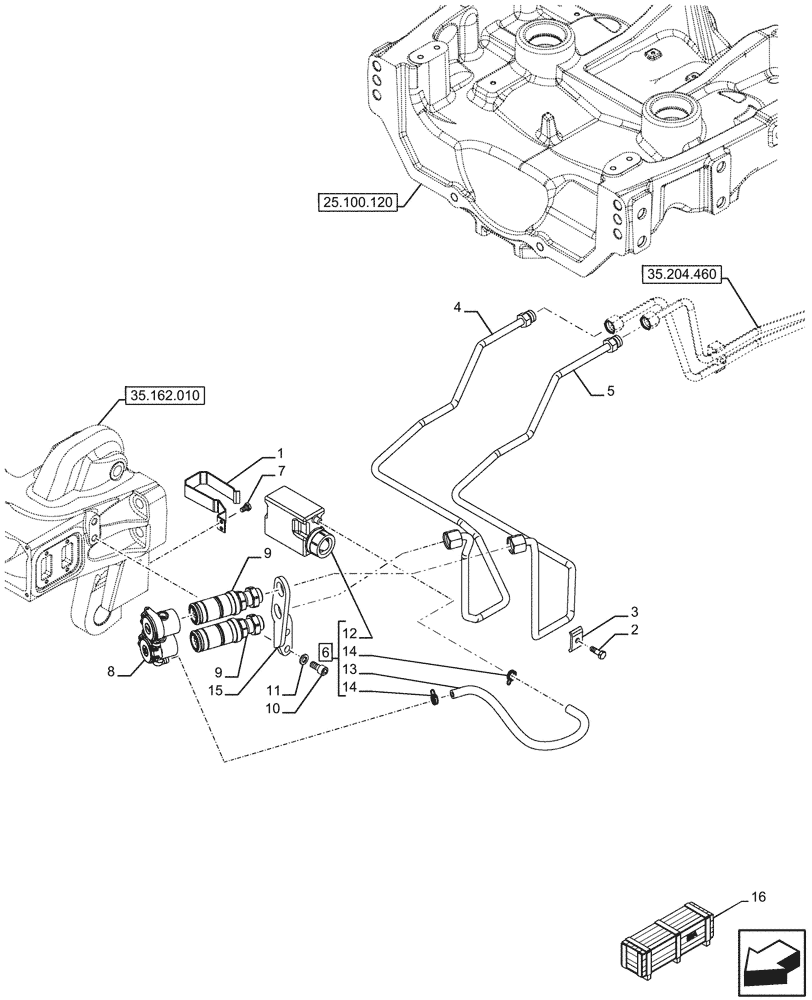

Запчасти Case IH FARMALL 120U (35.204.440) - VAR - 744942, 744943, 758578, 758610 - REMOTE CONTROL VALVE, COUPLING, FRONT, STANDARD, AXLE (35) - HYDRAULIC SYSTEMS

1

84527555

BRACKET

1шт.

2

16043680

BOLT,Hex, M8 x 1.25 x 25mm, Full Thd

1шт.

3

84519154

HOSE CLAMP

1шт.

4

47717151

TUBE

3 Point Hitch Lift

1шт.

5

47717147

TUBE

3 Point Hitch Lower

1шт.

6

84546128

BOTTLE

ASSY, 12 - 14

1шт.

7

CAS2168745

SCREW,M8 x 12mm, Cl 8.8

2шт.

8

47877601

DUST CAP

1шт.

9

84413196

COUPLING, QUICK, FEM

2шт.

10

87016466

HEX SOC SCREW,M12 x 25mm, Cl 8.8, Full Thd

1шт.

11

10520021

WASHER,12.2mm ID x 22mm OD x 3mm Thk

1шт.

12

84527523

BOTTLE

1шт.

13

19308780

FLEXIBLE HOSE

1шт.

14

13423371

HOSE CLAMP,13.6mm - 15.1mm

2шт.

15

47722208

BRACKET

1шт.

16

718090010

DIA KIT, TRACTOR

Chassis Mounted D/A less FPTO for Standard Front Axle, Incl 1, 2, 4 - 11, 15

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

16

718088010

DIA KIT, TRACTOR

Chassis Mounted D/A less FPTO for Standard Front Axle, Incl 1, 2, 4 - 11, 15

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

16

718091010

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO F/Standard Front Axle, Incl 1, 2, 4 - 11, 15

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

16

718089010

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO F/Standard Front Axle, Incl 1, 2, 4 - 11, 15

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
