(35.204.430) - VAR - 758820 - JOYSTICK, MID-MOUNT CONTROL VALVE

Запчасти Case IH FARMALL 120U (35.204.430) - VAR - 758820 - JOYSTICK, MID-MOUNT CONTROL VALVE (35) - HYDRAULIC SYSTEMS

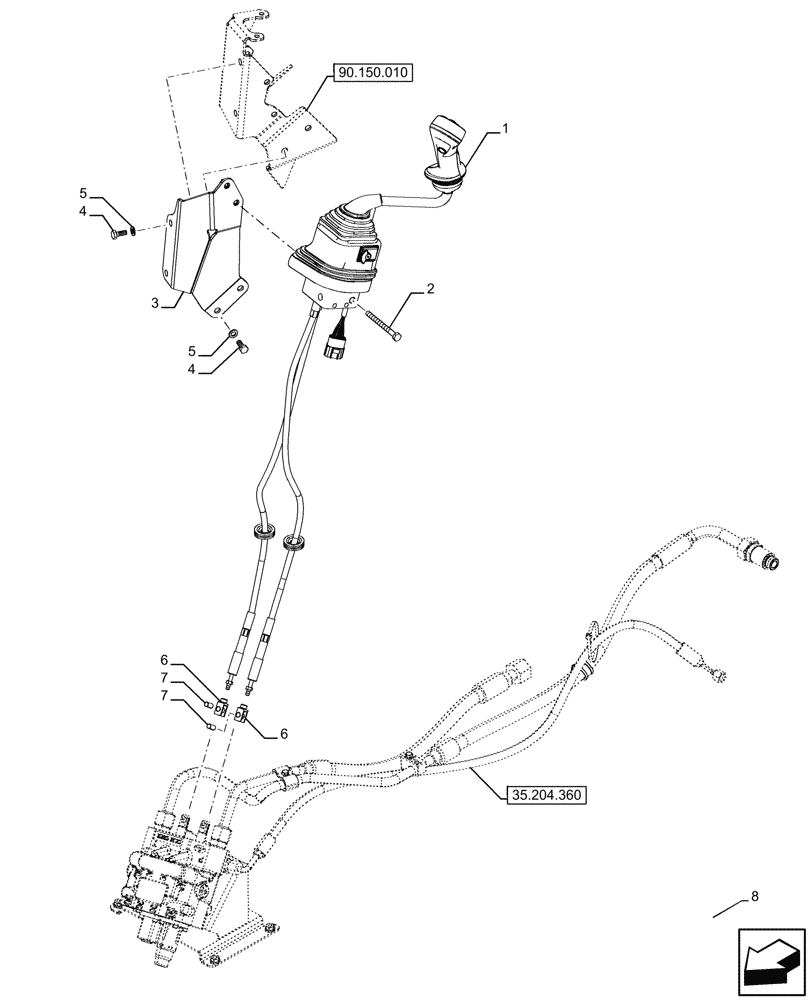

Схема запчастей Case IH FARMALL 120U - (35.204.430) - VAR - 758820 - JOYSTICK, MID-MOUNT CONTROL VALVE (35) - HYDRAULIC SYSTEMS
90.150.010
8
6
6
2
7
5
4
1
7
4
5
3
35.204.360
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47926454

JOYSTICK

1шт.

2

86980389

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

2шт.

3

84585047

BRACKET

1шт.

4

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

5

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

6

87303906

YOKE

2шт.

7

87332065

PIN,9mm OD x 17mm L

2шт.

8

719302070

DIA KIT, TRACTOR

Load Sensing Mid Mount Valve, Incl 1 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

719302090

DIA KIT, TRACTOR

Load Sensing Mid Mount Valve, Incl 1 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

719256070

DIA KIT, TRACTOR

Mid Mount for Pump 61 Liters, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
