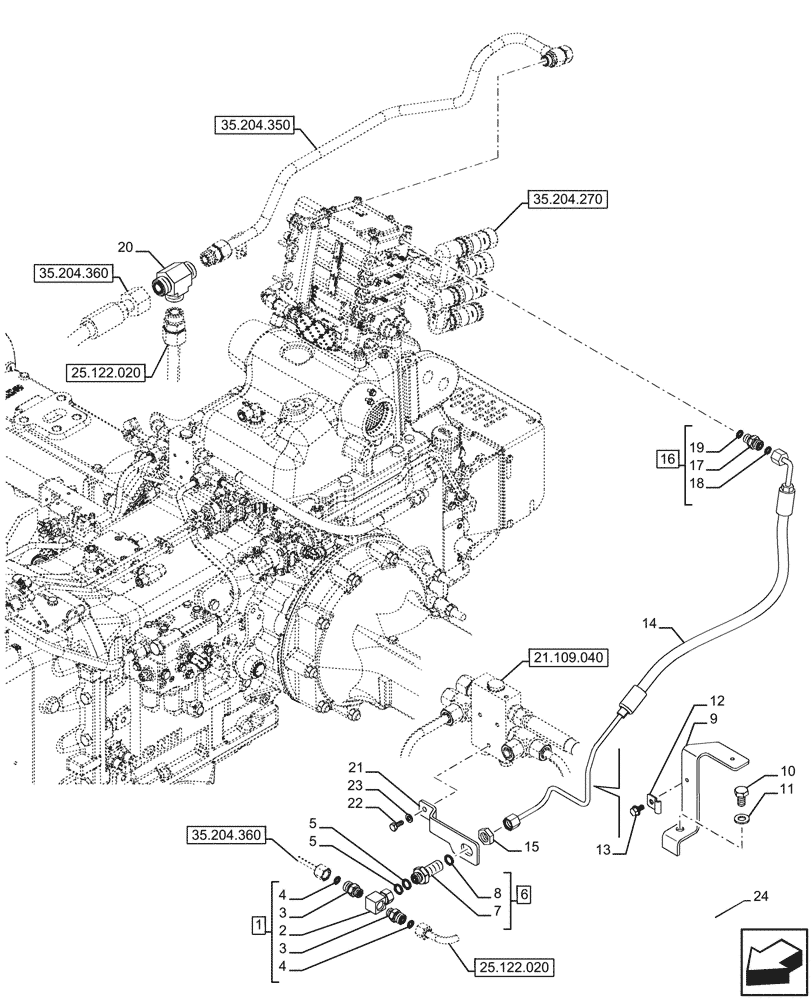

Запчасти Case IH FARMALL 120U (35.204.410) - VAR - 758820, 758821 - ELECTRONIC MID MOUNTED VALVES, PIPE (35) - HYDRAULIC SYSTEMS

1

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

ASSY, Incl 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Elbow, Incl in 1

1шт.

4

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

5

81827528

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

6

86639059

UNION,9/16"-18 ORFS, Blkd

ASSY, Incl 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Unio, Incl in 6

1шт.

8

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

9

47874074

BRACKET

1шт.

10

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

11

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

12

84474589

BRACKET

1шт.

13

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

1шт.

14

47873813

PIPE

from 3 Remote Control Valve to Control Valve

1шт.

15

86639063

BHD LOCK NUT,9/16"-18, ORFS Blkhd

1шт.

16

5185045

HYD CONNECTOR

ASSY, Incl 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

Connector, Incl in 16

1шт.

18

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

19

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

20

87359490

UNION

1шт.

21

47687546

BRACKET

1шт.

22

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

1шт.

23

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

24

719302070

DIA KIT, TRACTOR

Load Sensing Mid Mount Valve

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

24

719302090

DIA KIT, TRACTOR

Load Sensing Mid Mount Valve

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
