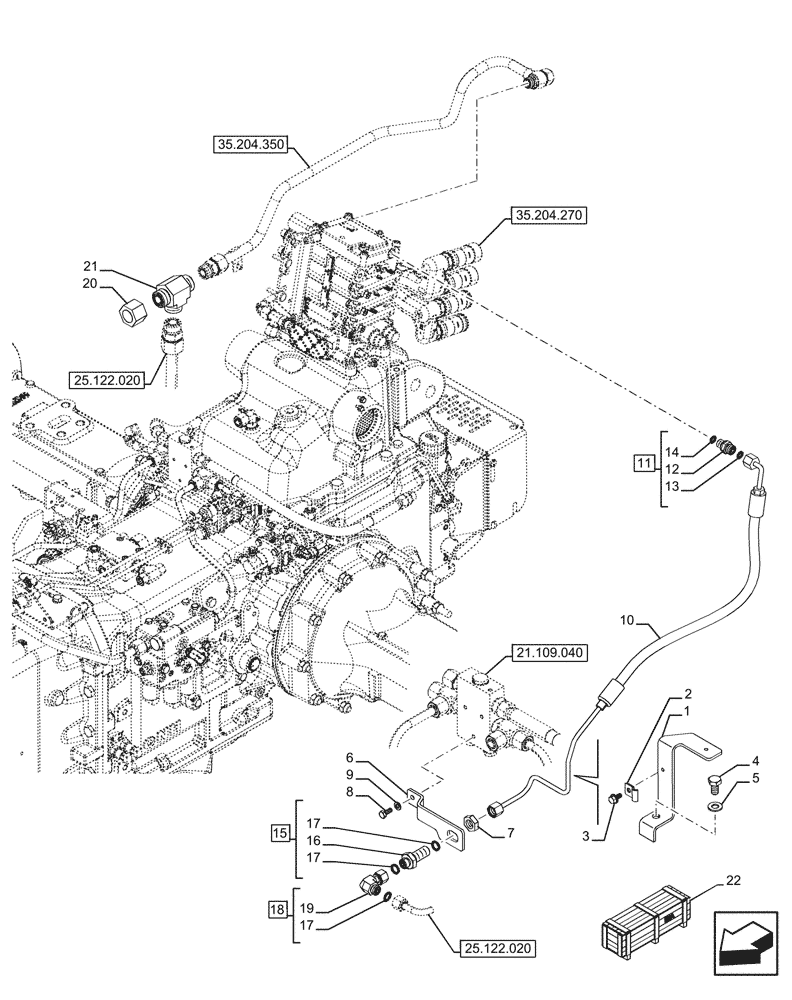

Запчасти Case IH FARMALL 120U (35.204.400) - VAR - 758303, 758820, 758821 - ELECTRONIC MID MOUNTED VALVES, PIPE (35) - HYDRAULIC SYSTEMS

1

47874074

BRACKET

1шт.

2

84474589

BRACKET

1шт.

3

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

1шт.

4

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

5

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

6

47687546

BRACKET

1шт.

7

86639063

BHD LOCK NUT,9/16"-18, ORFS Blkhd

1шт.

8

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

1шт.

9

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

10

47873813

PIPE

from Remote Control Valve to Control Valve

1шт.

11

5185045

HYD CONNECTOR

ASSY, Incl 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

Connector, Incl in 11

1шт.

13

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

14

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

15

86639059

UNION,9/16"-18 ORFS, Blkd

ASSY, Incl 16, 17 (Qty 2)

1шт.

16

NSS

NOT SOLD SEPARAT

Union, Incl in 15

1шт.

17

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

18

84989411

ELBOW,90 Degree, 9/16"-18 ORFS x 9/16"-18 Fem Sw

ASSY, Incl 17 (Qty 1), 19

1шт.

19

NSS

NOT SOLD SEPARAT

Elbow, Incl in 18

1шт.

20

9847689

CAP,1-3/16" - 12 ORFS

1шт.

21

87359490

UNION

1шт.

22

718196070

DIA KIT, TRACTOR

Electrohydraulic Mid Mount with Electronic Joystick, Incl 1 -19

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
