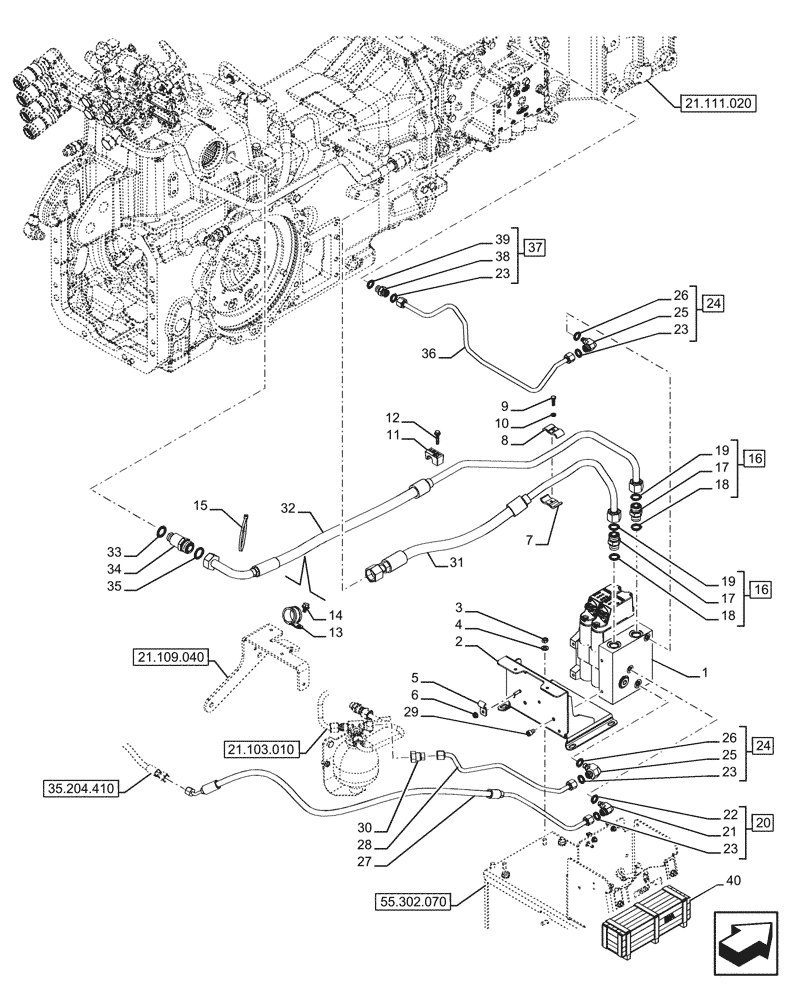

Запчасти Case IH FARMALL 120U (35.204.370) - VAR - 758821 - REAR REMOTE CONTROL VALVES, ELECTRONIC MID MOUNTED VALVES (35) - HYDRAULIC SYSTEMS

1

84322506

CONTROL VALVE

1шт.

2

47732288

BRACKET

1шт.

3

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

4

83931520

WASHER,8.4mm ID x 17mm OD x 2mm Thk

4шт.

5

84332672

BRACKET

1шт.

6

14059211

FLANGE NUT,M6 x 1, Flg, Cl 8

1шт.

7

5180016

BRACKET

1шт.

8

5180153

BRACKET

1шт.

9

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

10

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

11

87326640

CLAMP,16mm ID

1шт.

12

16286324

BOLT,Hex, M6 x 30mm, Cl 8.8

1шт.

13

10442090

RETAINER,26mm, Coat, P Type

1шт.

14

87015907

BOLT,M6 x 10mm, Full Thd, 8.8 PHC

1шт.

15

14560287

CABLE TIE,207.00mm L

1шт.

16

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

ASSY, Incl 17 - 19

2шт.

17

NSS

NOT SOLD SEPARAT

Connector, Incl in 16

1шт.

18

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

19

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

20

86580178

ELBOW,90 Deg, 11/16-16 ORFS x M12 x 1.5 ORB

ASSY, Incl 21 - 23 (Qty 1)

1шт.

21

NSS

NOT SOLD SEPARAT

Elbow, Incl in 20

1шт.

22

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

23

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

24

84553343

90 ELBOW,11/16"-16 ORFS x M10 X 1 ORB

ASSY, Incl 23 (Qty 1), 25, 26

2шт.

25

NSS

NOT SOLD SEPARAT

Elbow, Incl in 24

2шт.

26

84432614

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

27

47732366

PIPE

Load Sensing

1шт.

28

47732371

PIPE

Supply

1шт.

29

14306124

HEX SOC SCREW

4шт.

30

87582905

ORIFICE

1шт.

31

47746888

PIPE

1шт.

32

47526260

PIPE

Discharge

1шт.

33

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

1шт.

34

84605368

HYD CONNECTOR

1шт.

35

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

36

47732364

PIPE

Discarge Servo

1шт.

37

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 23 (Qty 1), 38, 39

1шт.

38

NSS

NOT SOLD SEPARAT

Connector, Incl in 37

1шт.

39

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

40

718196070

DIA KIT, TRACTOR

Electrohydraulic Mid Mount with Electronic Joystick, Incl 1 - 34, 36 - 39

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
