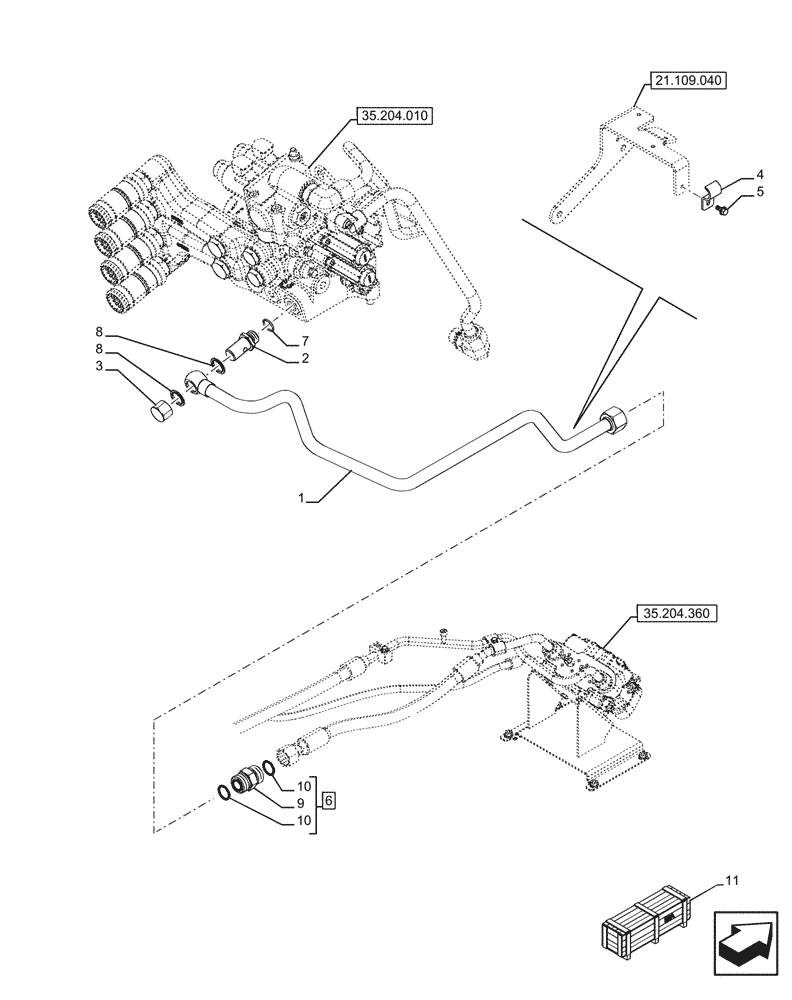

Запчасти Case IH FARMALL 120U (35.204.350) - VAR - 758820, 758821 - REMOTE CONTROL VALVE, DELIVERY PIPE, W/O MID MOUNT VALVES (35) - HYDRAULIC SYSTEMS

1

47756391

PIPE

1шт.

2

47133105

BANJO BOLT,M22 x 1.50 x 58mm, R50

1шт.

3

47133106

PLUG,Hex, M22 x 1.5 x 13mm L

1шт.

4

5156414

CLAMP,20mm ID, 6.5mm Bolt Hole, J Type

1шт.

5

16296924

FLANGE BOLT,Hvy Hex, M6 x 14mm, Cl 8.8, Full Thd

1шт.

6

84100407

UNION,1-3/16"-12 ORFS

ASSY, Incl 9, 10

1шт.

7

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

8

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

2шт.

9

NSS

NOT SOLD SEPARAT

Union, Incl in 6

1шт.

10

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

11

719302070

DIA KIT, TRACTOR

Load Sensing Mid Mount Valve, Incl 1 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

11

719302090

DIA KIT, TRACTOR

Load Sensing Mid Mount Valve, Incl 1 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

11

718196070

DIA KIT, TRACTOR

Electrohydraulic Mid Mount with Electronic Joystick, Incl 1 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
