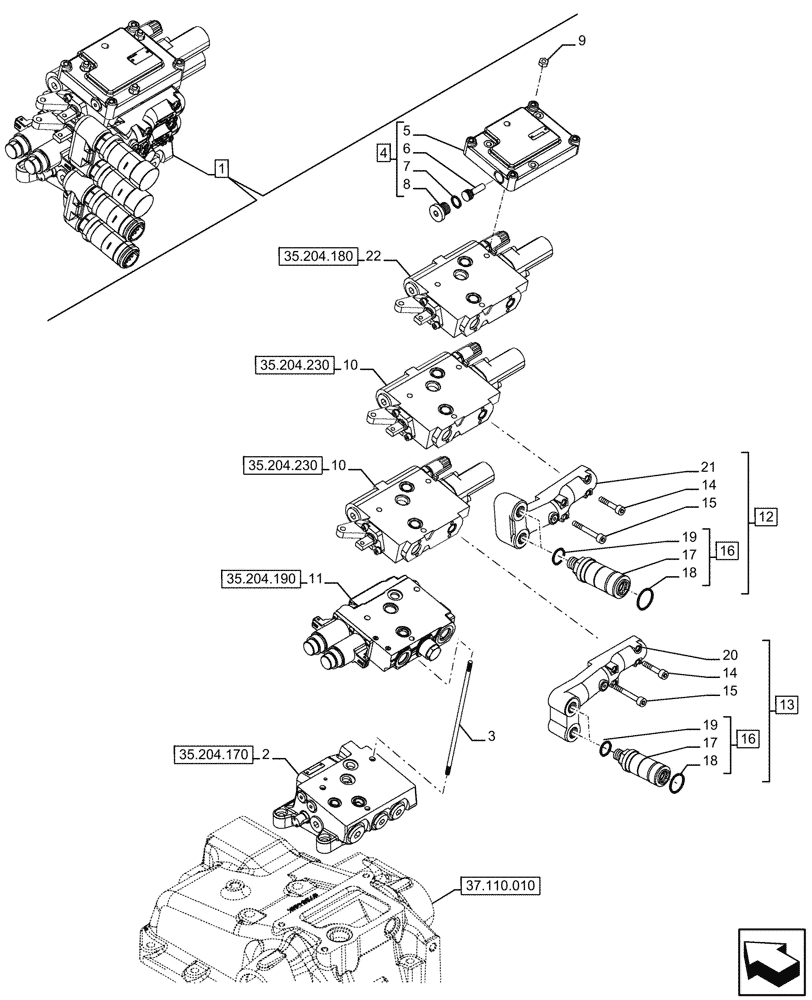

Запчасти Case IH FARMALL 120U (35.204.280) - VAR - 758295, 332844 - 3 REMOTE CONTROL VALVES, REAR, W/ DIVERTER, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

47873779

REMOTE CONTROL VALVE

ASSY, Incl 2 - 22

1шт.

2

47873776

HYDRAULIC MANIFOLD

1шт.

3

47123183

STUD,M8

3шт.

4

5192188

BODY

ASSY, Incl 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

Plate, Incl in 4

1шт.

6

47129441

VALVE

1шт.

7

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.

8

47129435

PLUG

1шт.

9

5195169

NUT,M8

3шт.

10

87328572

HYD VALVE SECTION

2шт.

10

87328572R

REMAN-HYD VALVE

2шт.

10

87328572C

CORE-VALVE HYD

Return Number

2шт.

11

84175671

VALVE SECTION

1шт.

11

84175671R

REMAN-HYD VALVE

1шт.

11

84175671C

CORE-VALVE HYD

Return Number

1шт.

12

47532950

MANIFOLD

ASSY, Incl 14 - 16, 21

1шт.

13

47532947

MANIFOLD

ASSY, Incl 14 - 16, 20

1шт.

14

47129474

HEX SOC SCREW,M6 x 35mm

4шт.

15

47129475

HEX SOC SCREW,M6 x 50mm

4шт.

16

47370116

COUPLING

ASSY, Incl 17 - 19

2шт.

17

NSS

NOT SOLD SEPARAT

Coupler, Incl in 16

2шт.

18

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

19

87382012

SEAL KIT

1шт.

20

NSS

NOT SOLD SEPARAT

Manifold, Incl in 13

1шт.

21

NSS

NOT SOLD SEPARAT

Manifold, Incl in 12

1шт.

22

87546169

CONTROL VALVE

1шт.
