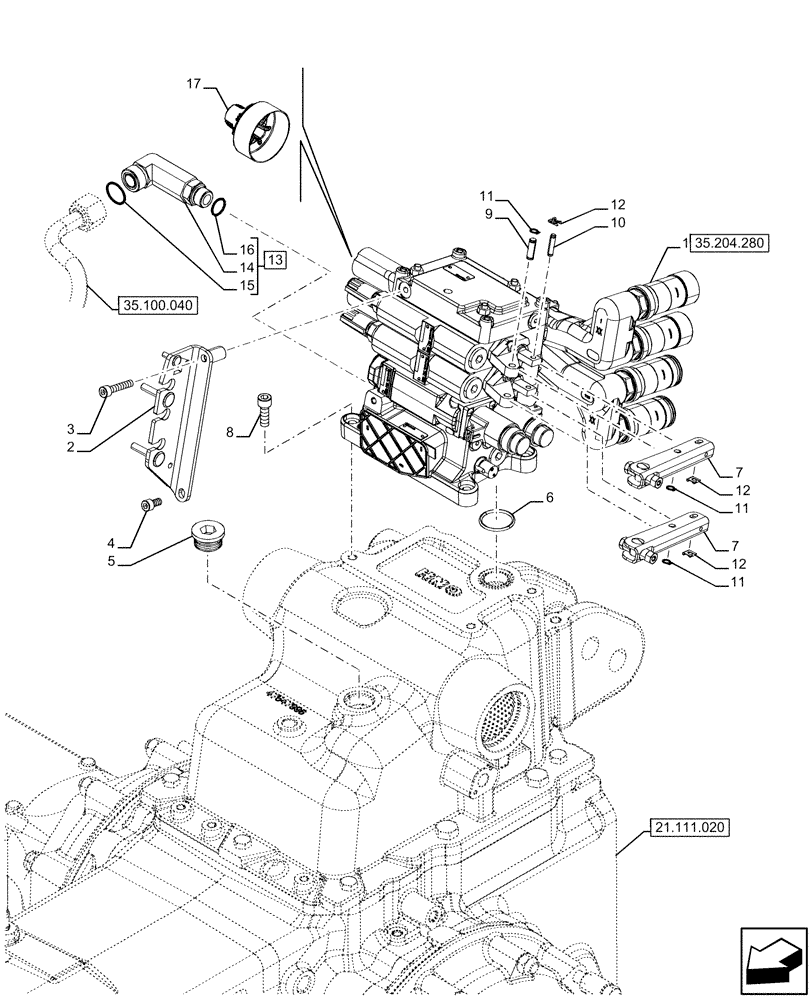

Запчасти Case IH FARMALL 120U (35.204.270) - VAR - 758295, 332844 - 3 REMOTE CONTROL VALVES, REAR, W/ DIVERTER (35) - HYDRAULIC SYSTEMS

1

47873779

REMOTE CONTROL VALVE

1шт.

2

47867804

BRACKET

1шт.

3

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

1шт.

4

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

1шт.

5

10119511

PLUG,M33 x 2 x 16, Cl5.8

1шт.

6

14463881

O-RING,1.359" ID x 0.139" Width

1шт.

7

47786715

LEVER

3шт.

8

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

9

5113008

PIN,8mm OD x 26mm L

3шт.

10

5193177

PIN,6mm OD x 29.48mm L

3шт.

11

11065676

SNAP RING,M8, Ext

6шт.

12

11063971

SPRING CLIP,M6

6шт.

13

5185577

ELBOW

ASSY, Incl 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

Elbow, Incl in 13

1шт.

15

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

16

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

17

47613919

KNOB

1шт.
