(35.204.240) - VAR - 758294, 331844 - 3 REMOTE CONTROL VALVES, REAR

Запчасти Case IH FARMALL 120U (35.204.240) - VAR - 758294, 331844 - 3 REMOTE CONTROL VALVES, REAR (35) - HYDRAULIC SYSTEMS

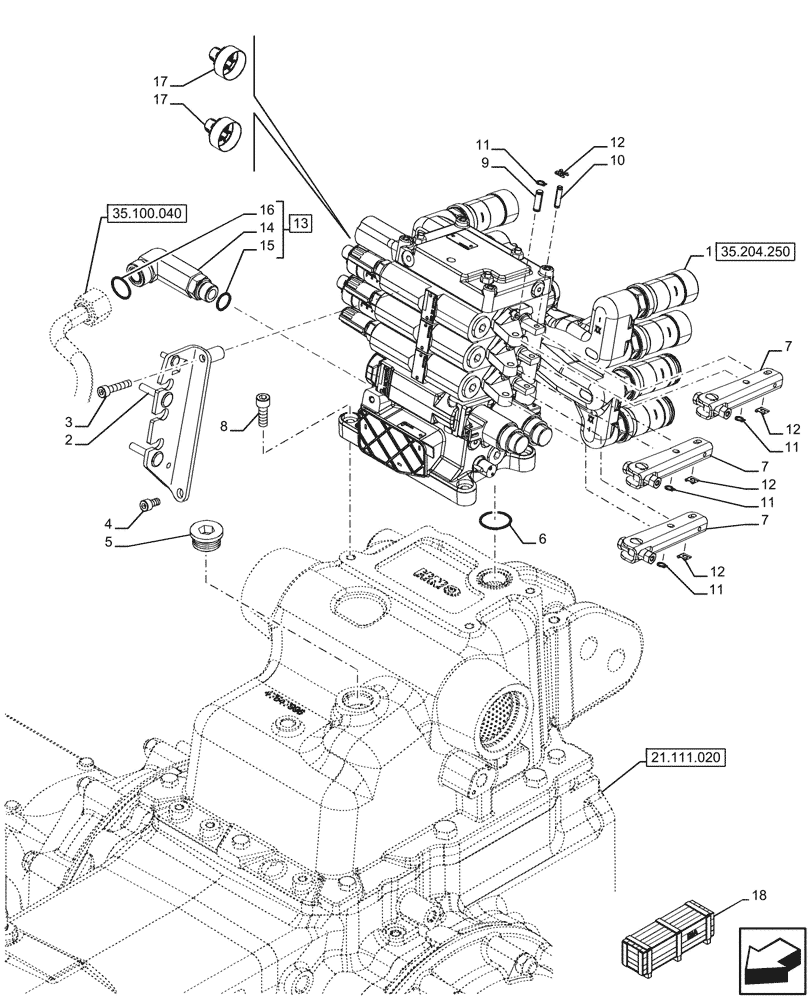

Схема запчастей Case IH FARMALL 120U - (35.204.240) - VAR - 758294, 331844 - 3 REMOTE CONTROL VALVES, REAR (35) - HYDRAULIC SYSTEMS
21.111.020
9
17
7
11
18
12
6
1
7
7
12
12
4
11
11
2
10
16
14
13
3
15
8
12
11
5
17
35.204.250
35.100.040
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47873778

REMOTE CONTROL VALVE

SB 23, For Gear Pump

1шт.

2

47867804

BRACKET

1шт.

3

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

1шт.

4

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

1шт.

5

10119511

PLUG,M33 x 2 x 16, Cl5.8

1шт.

6

14463881

O-RING,1.359" ID x 0.139" Width

1шт.

7

47786715

LEVER

3шт.

8

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

9

5113008

PIN,8mm OD x 26mm L

3шт.

10

5193177

PIN,6mm OD x 29.48mm L

3шт.

11

11065676

SNAP RING,M8, Ext

6шт.

12

11063971

SPRING CLIP,M6

6шт.

13

5185577

ELBOW

ASSY Incl 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

Elbow, Incl in 13

1шт.

15

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

16

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

17

47613919

KNOB

2шт.

18

718193070

DIA KIT, TRACTOR

3 Remote - 2 Coupler De Luxe, Incl 2, 7 (Qty 1), 9 (Qty 1), 10 (Qty 1), 11 (Qty 2), 12 (Qty 2)

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

18

718193080

DIA KIT, TRACTOR

3 Remote - 2 Coupler De Luxe, Incl 2, 7 (Qty 1), 9 (Qty 1), 10 (Qty 1), 11 (Qty 2), 12 (Qty 2)

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
