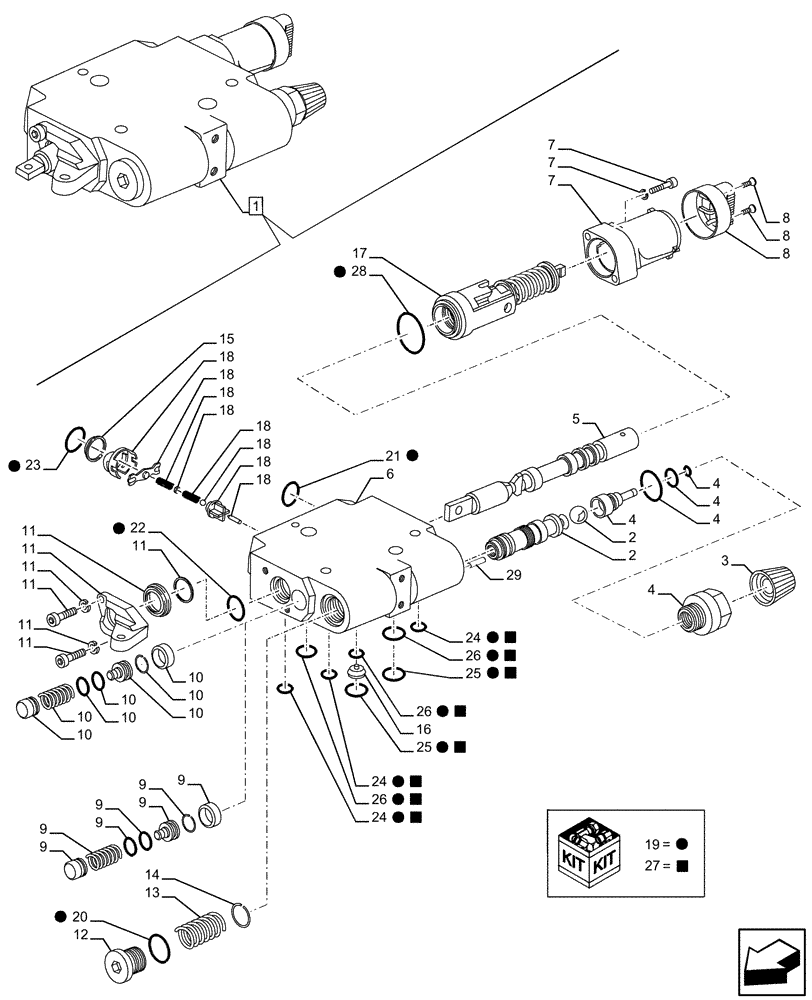

Запчасти Case IH FARMALL 120U (35.204.230) - VAR - 330849 - 2 REMOTE CONTROL VALVES, REAR, W/ RECONFIGURABLE REMOTES, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

87328572

HYD VALVE SECTION

ASSY, Incl 2 - 29

1шт.

1

87328572R

REMAN-HYD VALVE

1шт.

1

87328572C

CORE-VALVE HYD

Return Number

1шт.

2

87394197

REPAIR KIT

1шт.

3

87319988

KNOB

1шт.

4

47130767

KIT

1шт.

5

NSS

NOT SOLD SEPARAT

Rod, Incl in 1

1шт.

6

47129438

PLUG

3шт.

6

NSS

NOT SOLD SEPARAT

Subassembly, Incl in 1

1шт.

7

87531919

REPAIR KIT

1шт.

8

47613919

KNOB

1шт.

9

87376020

SERVICE KIT

1шт.

10

87666211

SERVICE KIT

1шт.

11

47615625

SERVICE KIT

1шт.

12

47615569

PLUG,M22 x 1.5 x 44.1mm L

1шт.

13

84124585

SPRING

1шт.

14

47129463

RETAINER

1шт.

15

84125422

SEAL KIT

1шт.

16

47127006

VALVE

1шт.

17

NSS

NOT SOLD SEPARAT

Subassembly, Incl in 1

1шт.

18

5191720

REPAIR KIT

1шт.

19

87661337

KIT

ASSY, Incl 20 - 26

1шт.

20

NSS

NOT SOLD SEPARAT

O-Ring, 19.4 x 2.1 HNBR

2шт.

21

NSS

NOT SOLD SEPARAT

Shim, 11.8 x 0.04

2шт.

22

NSS

NOT SOLD SEPARAT

O-Ring, 18 x 3 HNBR

2шт.

23

NSS

NOT SOLD SEPARAT

O-Ring, 17 x 2.5 HNBR

2шт.

24

NSS

NOT SOLD SEPARAT

Shim, 11.8 x 0.04

2шт.

25

NSS

NOT SOLD SEPARAT

Support Ring, 24.5 x 2.15

2шт.

26

NSS

NOT SOLD SEPARAT

O-Ring, 18 x 2.5 HNBR

2шт.

27

47127019

SEAL

Alternative part

1шт.

Same Usage/Applicability. To be Ordered when P/N 87376020 is not Available

1шт.

28

NSS

NOT SOLD SEPARAT

O-Ring, 18 x 3 HNBR

1шт.

29

NSS

NOT SOLD SEPARAT

Slotted Spring Pin, Incl in 1

1шт.
