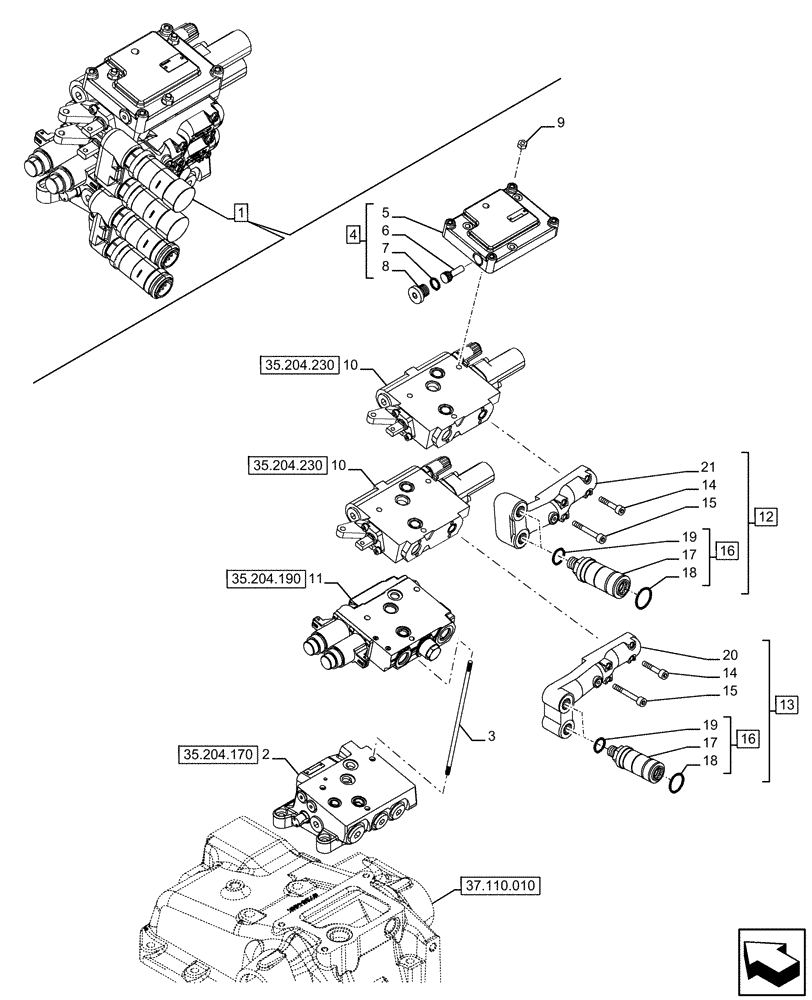

Запчасти Case IH FARMALL 120U (35.204.220) - VAR - 330849 - 2 REMOTE CONTROL VALVES, REAR, W/ RECONFIGURABLE REMOTES, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

47873777

REMOTE CONTROL VALVE

ASSY, Incl 2 - 21

1шт.

2

47873776

HYDRAULIC MANIFOLD

1шт.

3

5195168

TIE-ROD,M8

3шт.

4

5192188

BODY

ASSY, Incl 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

Plate, Incl in 4

1шт.

6

47129441

VALVE

1шт.

7

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.

8

47129435

PLUG

1шт.

9

5195169

NUT,M8

3шт.

10

87328572

HYD VALVE SECTION

2шт.

10

87328572R

REMAN-HYD VALVE

2шт.

10

87328572C

CORE-VALVE HYD

Return Number

2шт.

11

84175671

VALVE SECTION

1шт.

11

84175671R

REMAN-HYD VALVE

1шт.

11

84175671C

CORE-VALVE HYD

Return Number

1шт.

12

47532950

MANIFOLD

ASSY, Incl 14 - 16, 21

1шт.

13

47532947

MANIFOLD

ASSY, Incl 14 - 16, 20

1шт.

14

47129474

HEX SOC SCREW,M6 x 35mm

4шт.

15

47129475

HEX SOC SCREW,M6 x 50mm

4шт.

16

47370116

COUPLING

4шт.

17

NSS

NOT SOLD SEPARAT

Coupler, Incl in 16

2шт.

18

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

19

87382012

SEAL KIT

1шт.

20

NSS

NOT SOLD SEPARAT

Manifold, Incl in 13

1шт.

21

NSS

NOT SOLD SEPARAT

Manifold, Incl in 12

1шт.
