(35.204.190) - VAR - 338844 - 2 REMOTE CONTROL VALVES, REAR, COMPONENTS

Запчасти Case IH FARMALL 120U (35.204.190) - VAR - 338844 - 2 REMOTE CONTROL VALVES, REAR, COMPONENTS (35) - HYDRAULIC SYSTEMS

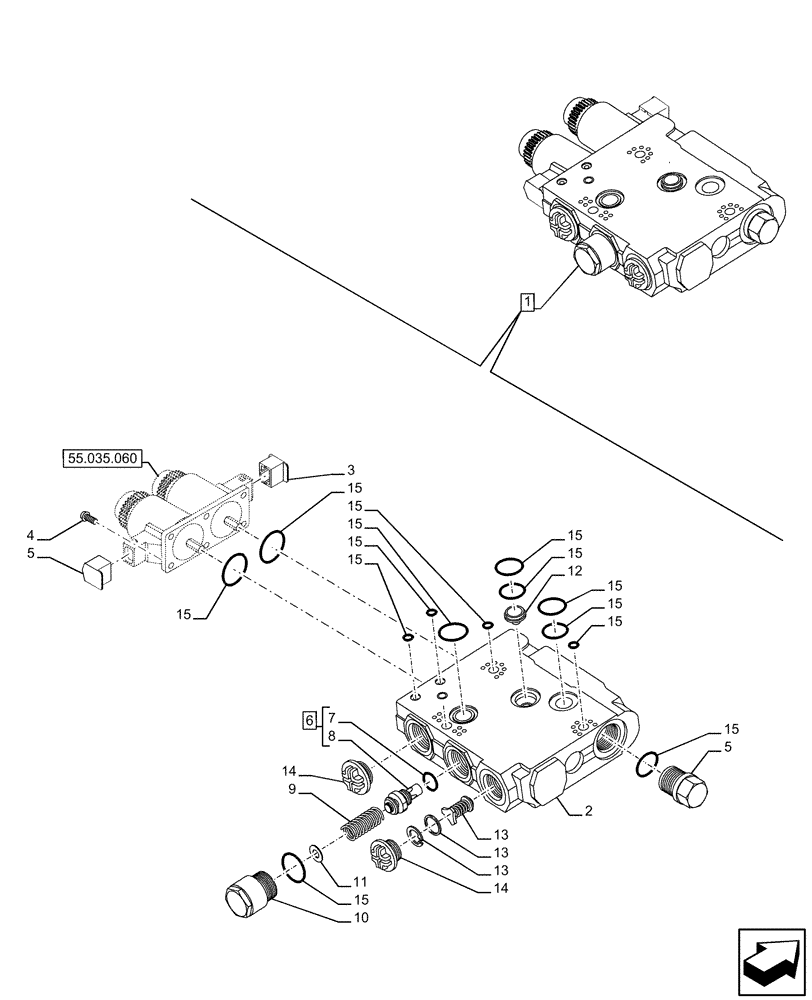

Схема запчастей Case IH FARMALL 120U - (35.204.190) - VAR - 338844 - 2 REMOTE CONTROL VALVES, REAR, COMPONENTS (35) - HYDRAULIC SYSTEMS
55.035.060
15
15
15
11
6
15
14
15
15
13
15
5
15
13
10
15
12
4
13
14
15
15
7
15
9
2
1
8
3
15
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84175671

VALVE SECTION

ASSY, Incl 2 - 15

1шт.

1

84175671R

REMAN-HYD VALVE

1шт.

1

84175671C

CORE-VALVE HYD

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Valve Housing, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Protective Cap, Incl in 1

1шт.

4

47129409

SET SCREW,Oval Head

6шт.

5

87531487

PLUG

1шт.

6

47129415

INSERT

ASSY, Incl 7, 8

1шт.

7

87531495

O-RING,12.00mm ID x 1.75mm

1шт.

8

NSS

NOT SOLD SEPARAT

Valve, Incl in 6

1шт.

9

47129411

SPRING

1шт.

10

47129410

PLUG,Hex, 29.2mm OD

1шт.

11

47129406

SHIM,0.30mm T

0.30mm

1шт.

11

47129416

SHIM,0.80mm T

0.40mm

1шт.

11

47129407

SHIM,0.40mm T

0.80mm

1шт.

12

84127100

SHUT-OFF VALVE

1шт.

13

84232107

REPAIR KIT

1шт.

14

NSS

NOT SOLD SEPARAT

Protective Cap, Incl in 1

2шт.

15

84312718

SEAL KIT

1шт.
