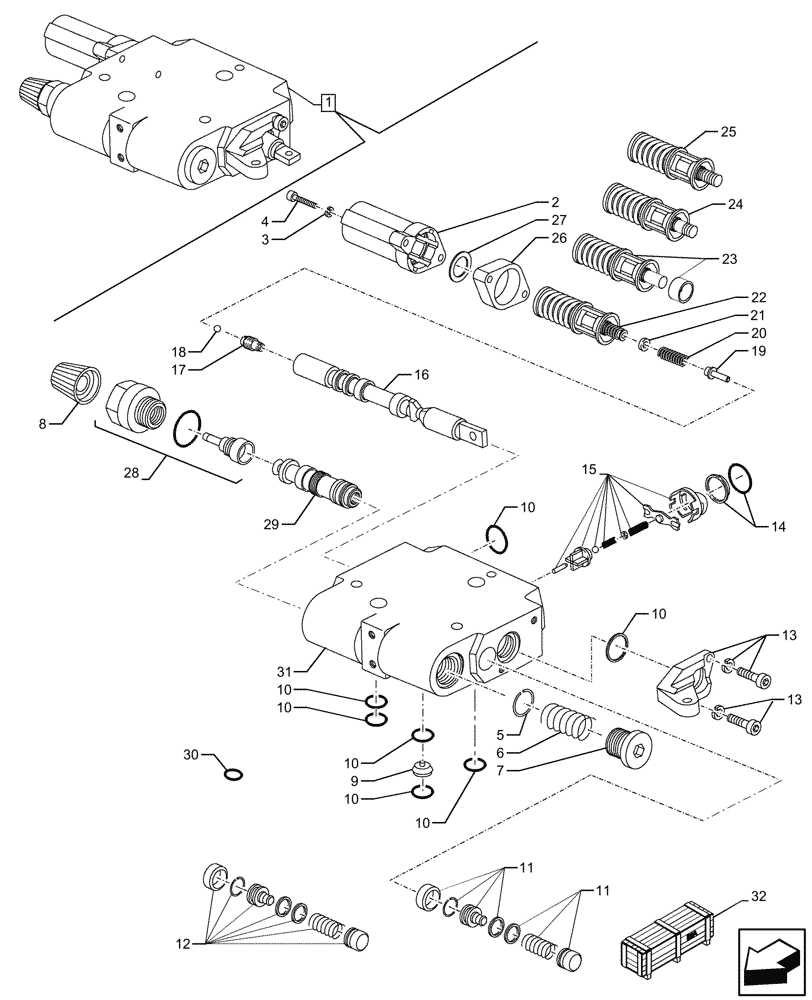

Запчасти Case IH FARMALL 120U (35.204.180) - VAR - 338844 - 2 REMOTE CONTROL VALVES, REAR, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

87546169

CONTROL VALVE

ASSY, Incl 2 - 31

2шт.

2

5191784

CAP

1шт.

3

5191783

SPRING WASHER

2шт.

4

87666210

HEX SOC SCREW,M6 x 30mm

2шт.

5

47129463

RETAINER

1шт.

6

84124585

SPRING

1шт.

7

47615569

PLUG,M22 x 1.5 x 44.1mm L

1шт.

8

87319988

KNOB

1шт.

9

47127006

VALVE

1шт.

10

87661337

KIT

Standard

1шт.

11

87376020

SERVICE KIT

Standard

1шт.

12

87666211

SERVICE KIT

1шт.

13

47615625

SERVICE KIT

1шт.

14

84125422

SEAL KIT

1шт.

15

5191720

REPAIR KIT

1шт.

16

NSS

NOT SOLD SEPARAT

Valve Spool, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Valve Insert, Incl in 1

1шт.

18

NSS

NOT SOLD SEPARAT

Ball, Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

Thrust Pin, Incl in 1

1шт.

20

NSS

NOT SOLD SEPARAT

Compression Spring, Incl in 1

1шт.

21

NSS

NOT SOLD SEPARAT

Shim, Incl in 1

1шт.

22

47618819

KIT

3 Position, W/O Kick-Out

1шт.

23

47618825

KIT

4 Position, W/O Kick-Out & Detent only in Float

1шт.

24

47723996

KIT

4 Position, W/O Kick-Out & Detent in all Positions

1шт.

25

47618828

SERVICE KIT

Standard Equipment

1шт.

26

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

27

NSS

NOT SOLD SEPARAT

Shim, 0.20mm, Incl in 1

3шт.

28

47130767

KIT

1шт.

29

NSS

NOT SOLD SEPARAT

Valve Spool, Incl in 1

3шт.

30

47127019

SEAL

1шт.

31

NSS

NOT SOLD SEPARAT

Valve Housing, Incl in 1

1шт.

32

718362040

DIA KIT, TRACTOR

Kit 3 Position W/O Detent, Incl 22

1шт.

32

710362040

DIA KIT, TRACTOR

Kit 4 Position, W/O Kick-Out & Detent in all Positions, Incl 24

1шт.

32

719362040

DIA KIT, TRACTOR

Kit 4 Position, W/O Kick-Out & Detent only in Float, Incl 23

1шт.
