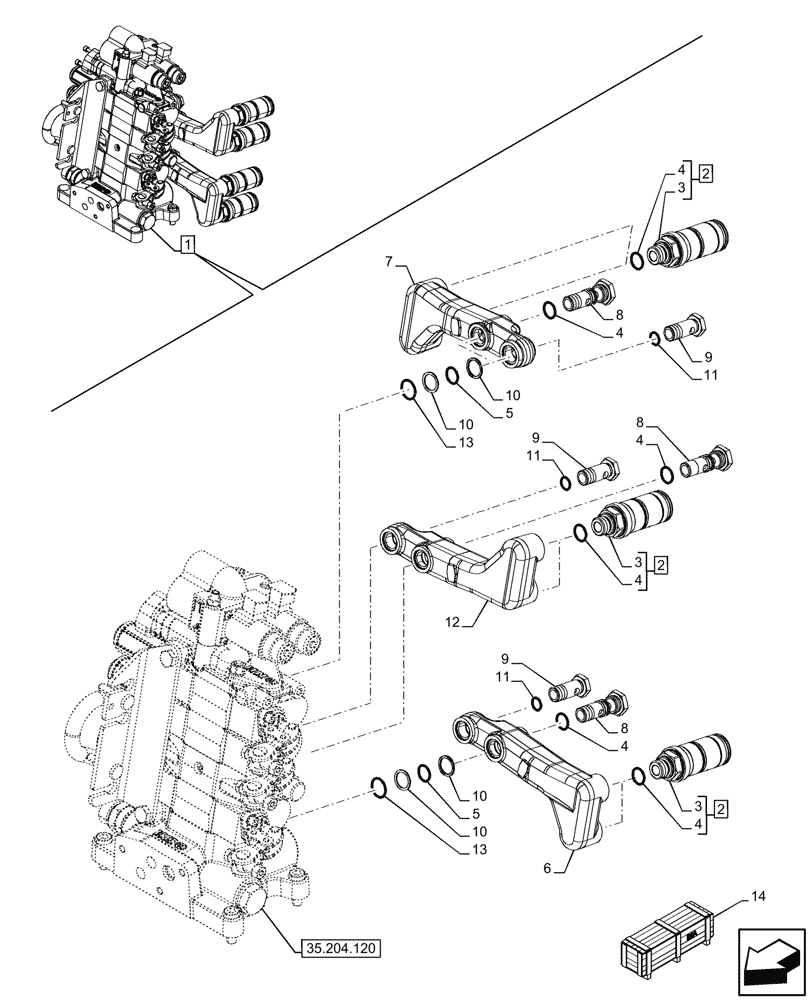

Запчасти Case IH FARMALL 120U (35.204.125) - VAR - 334121 - 3 REMOTE CONTROL VALVES, REAR, W/ FLOW CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

47556435

DISTRIBUTOR

With Flow Control, ASSY, Incl 2 - 13

1шт.

2

5179558

COUPLING, QUICK, FEM,Hex, M22 x 1.5 x 110.8mm L

ASSY, Incl 3, 4 (Qty 1)

6шт.

3

NSS

NOT SOLD SEPARAT

Coupling, Incl in 2

6шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

5шт.

5

14457281

O-RING,0.612" ID x 0.103" Width

3шт.

6

47555666

MANIFOLD

Lower Left

1шт.

7

47555672

MANIFOLD

1шт.

8

47135700

BANJO BOLT

3шт.

9

47136004

BANJO BOLT

3шт.

10

4958830

BACK-UP RING,16.26mm ID x 20.62mm OD x 1.14mm Thk

6шт.

11

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

12

47555670

MANIFOLD

Upper Left

1шт.

13

14457480

O-RING,18.72mm ID x 2.62mm Thk , -116, Cl 5

6шт.

14

719195090

DIA KIT, TRACTOR

3 Remote - 2 Coupler De Luxe and Oil Collecton Bottle, Incl 2, 3, 4 (Qty 1), 5 (Qty 1), 7, 8 (Qty 1), 9 (Qty 1), 10 (Qty 2), 11 (Qty 1), 13 (Qty 2)

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
