(35.204.110) - VAR - 334121 - 3 REMOTE CONTROL VALVES, REAR, W/ FLOW CONTROL

Запчасти Case IH FARMALL 120U (35.204.110) - VAR - 334121 - 3 REMOTE CONTROL VALVES, REAR, W/ FLOW CONTROL (35) - HYDRAULIC SYSTEMS

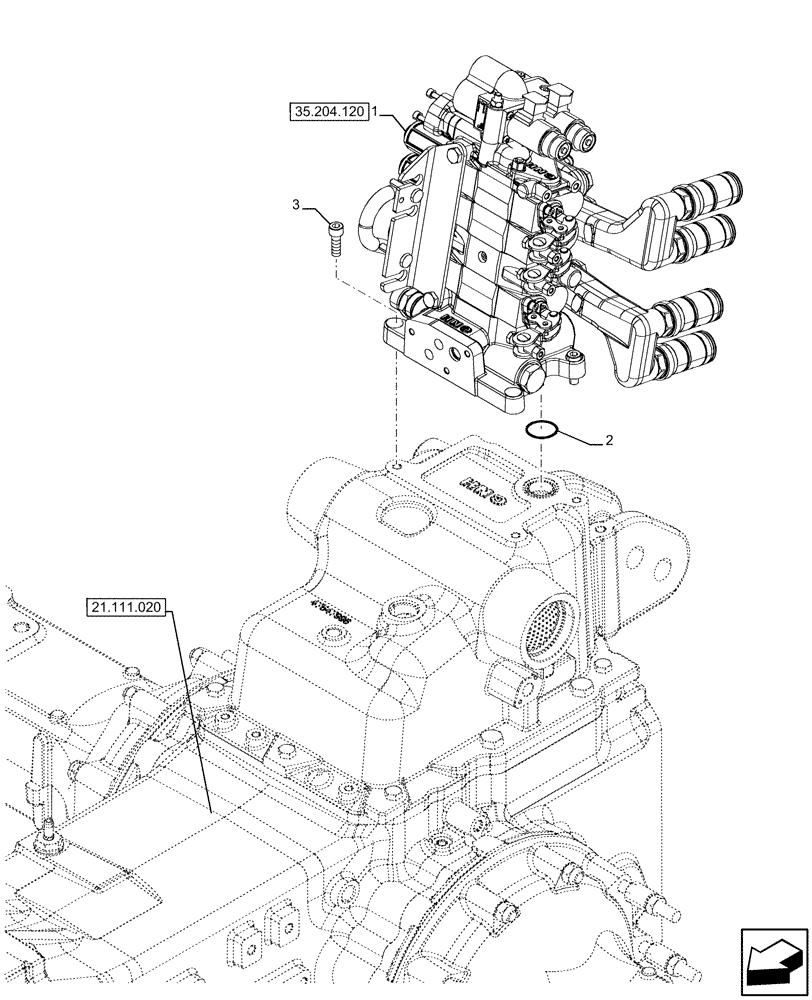

Схема запчастей Case IH FARMALL 120U - (35.204.110) - VAR - 334121 - 3 REMOTE CONTROL VALVES, REAR, W/ FLOW CONTROL (35) - HYDRAULIC SYSTEMS
21.111.020
3
2
1
35.204.120
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47556435

DISTRIBUTOR

With Flow Control

1шт.

2

14463881

O-RING,1.359" ID x 0.139" Width

1шт.

3

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.
