(35.204.100) - VAR - 334121, 334195, 758294, 331844 - 3 REMOTE CONTROL VALVES, REAR, CONTROL LEVER

Запчасти Case IH FARMALL 120U (35.204.100) - VAR - 334121, 334195, 758294, 331844 - 3 REMOTE CONTROL VALVES, REAR, CONTROL LEVER (35) - HYDRAULIC SYSTEMS

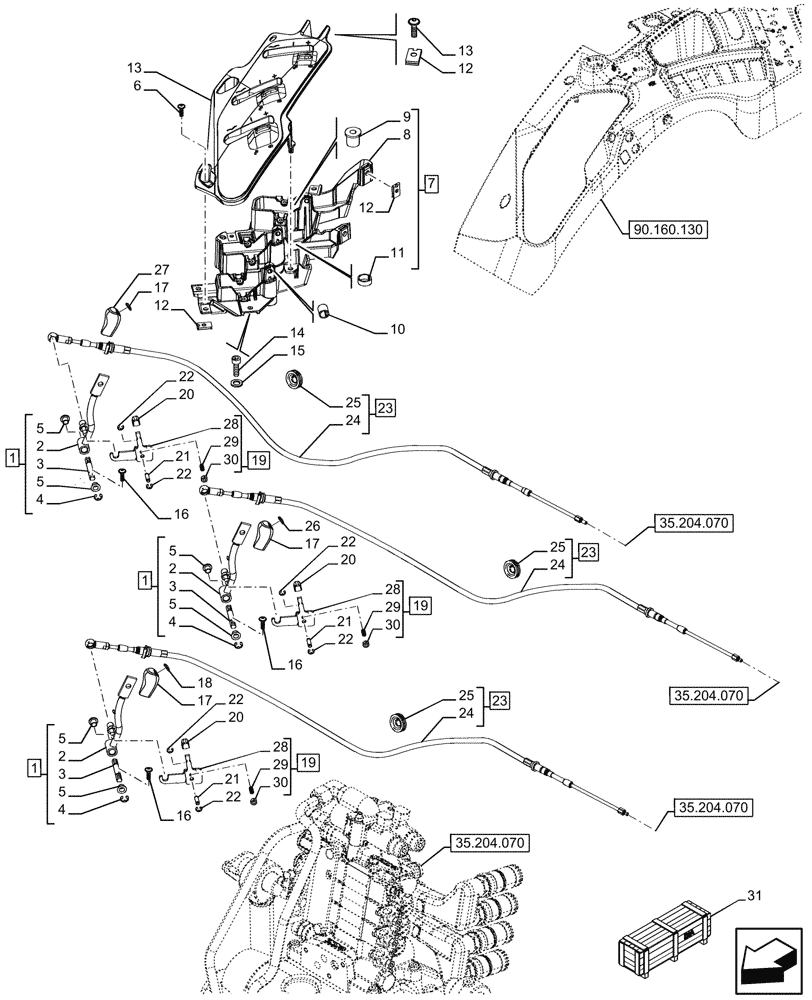

Схема запчастей Case IH FARMALL 120U - (35.204.100) - VAR - 334121, 334195, 758294, 331844 - 3 REMOTE CONTROL VALVES, REAR, CONTROL LEVER (35) - HYDRAULIC SYSTEMS
3
4
5
19
23
1
29
28
21
2
28
23
3
8
12
12
21
7
19
22
5
20
30
11
29
24
14
17
25
31
25
16
9
3
1
4
24
22
25
5
10
13
5
22
4
18
21
12
2
15
29
19
20
5
16
28
22
22
24
17
5
27
22
30
20
1
13
16
6
26
2
30
23
17
90.160.130
35.204.070
35.204.070
35.204.070
35.204.070
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47516894

CONTROL LEVER

ASSY, Incl 2 - 5

3шт.

2

NSS

NOT SOLD SEPARAT

Lever, Incl in 1

3шт.

3

47552978

PIN

1шт.

4

16160974

CIRCLIP,M9

2шт.

5

84295562

BUSHING,10mm ID x 12mm OD x 10mm L

2шт.

6

47573768

BEZEL

1шт.

7

47516897

ASSY, Incl 8 -11

1шт.

8

NSS

NOT SOLD SEPARAT

Support, Incl in 7

1шт.

9

47833175

BUSHING

6шт.

10

47553030

BUSHING

3шт.

11

47553019

BUSHING

5шт.

12

14371774

SPRING NUT,M6, U, 12mm long

6шт.

13

1983037

HEX SOC SCREW,Btn Hd Flg, M6 x 16mm, Cl 10.9

3шт.

14

86531615

HEX SOC SCREW,M6 x 20mm, Cl 8.8

5шт.

15

10260860

SEALING WASHER,M8.2 x 14 x 1.5, Copper

5шт.

16

87698793

SCREW,Hex, M6 x 20mm L

6шт.

17

47381094

KNOB,Black

3шт.

18

87698505

DATA PLAQUE

1шт.

19

47777861

LEVER

3шт.

20

47778158

KNOB

3шт.

21

47565014

PIN

3шт.

22

11087674

WASHER,4mm, CST DAC

6шт.

23

47593056

CONTROL

ASSY, Incl 24, 25

3шт.

24

NSS

NOT SOLD SEPARAT

Cable. Incl in 23

3шт.

25

84325372

GROMMET,9mm ID x 30mm OD x 9mm L

1шт.

26

87698506

DATA PLAQUE

1шт.

27

87698516

DATA PLAQUE

1шт.

28

NSS

NOT SOLD SEPARAT

Lever, Incl in 19

3шт.

29

47915848

PLUNGER

3шт.

30

47908158

NUT

3шт.

31

718194080

DIA KIT, TRACTOR

Diverter for 3 Remotes, Incl 27

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
