(35.204.080) - VAR - 334195 - 3 REMOTE CONTROL VALVES, REAR, COMPONENTS

Запчасти Case IH FARMALL 120U (35.204.080) - VAR - 334195 - 3 REMOTE CONTROL VALVES, REAR, COMPONENTS (35) - HYDRAULIC SYSTEMS

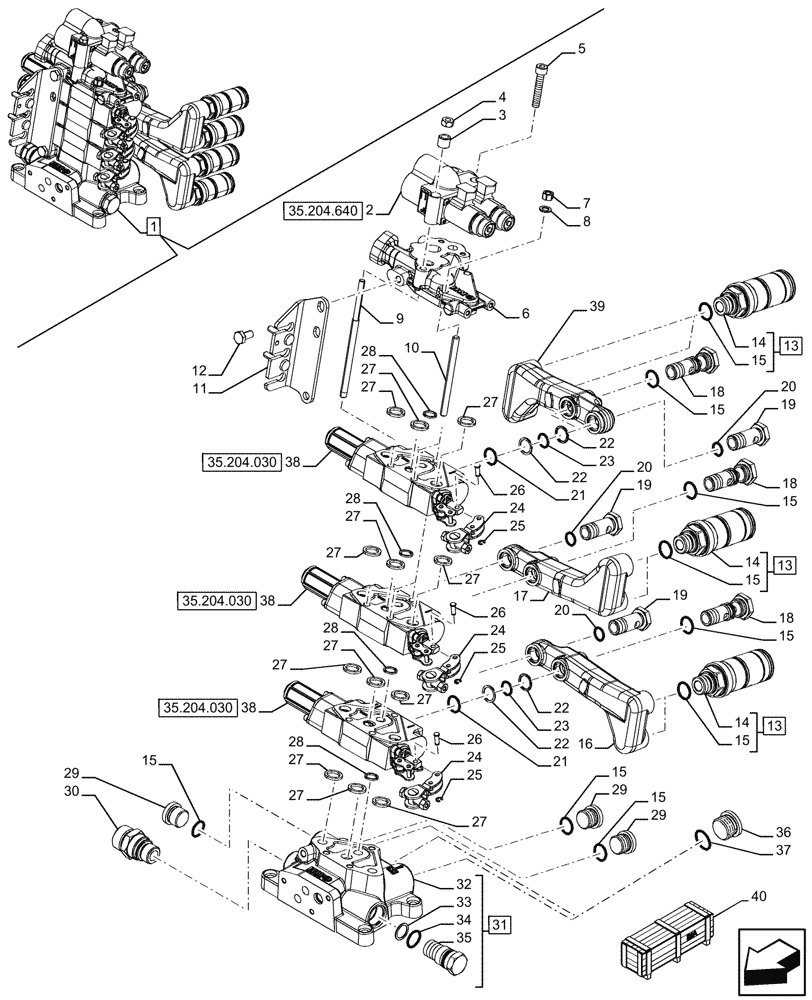

Схема запчастей Case IH FARMALL 120U - (35.204.080) - VAR - 334195 - 3 REMOTE CONTROL VALVES, REAR, COMPONENTS (35) - HYDRAULIC SYSTEMS
35.204.030
24
33
14
20
29
16
19
4
15
28
13
27
15
29
27
19
27
25
14
18
22
2
26
15
15
18
5
22
38
27
27
36
15
10
27
27
20
28
15
24
20
12
23
38
32
14
23
19
27
9
40
15
26
18
21
27
22
1
27
6
13
22
25
8
37
15
38
29
3
7
21
28
31
26
28
27
30
11
34
13
17
27
15
35
39
24
25
35.204.640
35.204.030
35.204.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47556434

DISTRIBUTOR

ASSY, Incl 2 - 39

1шт.

2

47671314

INCHING VALVE

ASSY

1шт.

3

47136143

SPACER,8.5mm ID x 14mm OD x 12mm L

1шт.

4

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

5

14306821

HEX SOC SCREW,M8 x 45mm, Cl 8.8

2шт.

6

87396841

FLANGE

1шт.

7

5116857

NUT,3/8" - 24

2шт.

8

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

2шт.

9

87325125

STUD

1шт.

10

5151506

THREADED ROD,3/8" - 24 x 6-5/8"

2шт.

11

47866161

BRACKET

1шт.

12

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

13

5179558

COUPLING, QUICK, FEM,Hex, M22 x 1.5 x 110.8mm L

ASSY, Incl 14, 15 (Qty 1)

6шт.

14

NSS

NOT SOLD SEPARAT

Coupling, Incl in 13

1шт.

15

14438085

O-RING,19.3mm ID x 2.4mm

9шт.

16

47555666

MANIFOLD

Lower Left

1шт.

17

47555670

MANIFOLD

Upper Left

1шт.

18

47135700

BANJO BOLT

3шт.

19

47136004

BANJO BOLT

3шт.

20

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

21

14457480

O-RING,18.72mm ID x 2.62mm Thk , -116, Cl 5

6шт.

22

4958830

BACK-UP RING,16.26mm ID x 20.62mm OD x 1.14mm Thk

6шт.

23

14457281

O-RING,0.612" ID x 0.103" Width

3шт.

24

47787867

LEVER

3шт.

25

11087876

CIRCLIP,M7

3шт.

26

5172456

PIN,6mm OD x 20mm L

3шт.

27

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

12шт.

28

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

4шт.

29

10118811

PLUG,M22 x 1.5 x 14, Cl5.8

3шт.

30

47592023

HYD CONNECTOR

1шт.

31

84563608

MANIFOLD VALVE

ASSY. Incl 32 - 35

1шт.

32

NSS

NOT SOLD SEPARAT

Valve, Incl in 31

1шт.

33

10263360

SEAL,20.3mm ID x 26mm OD x 1mm Thk

1шт.

34

14453980

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

1шт.

35

84563631

PLUG,M28 x 1.5

1шт.

36

10119011

PLUG,M27 x 2 x 20, Cl5.8

2шт.

37

14438185

O-RING,24mm ID x 3mm

2шт.

38

84406706

REMOTE CONTROL VALVE

3шт.

39

47555672

MANIFOLD

1шт.

40

719195090

DIA KIT, TRACTOR

3 Remote - 2 Coupler De Luxe and Oil Collecton Bottle, Incl 9 - 11, 24, 26, 27 (Qty 3), 28 (Qty 1), 38

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

40

719405070

DIA KIT, TRACTOR

Flow Control, Incl 9 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
