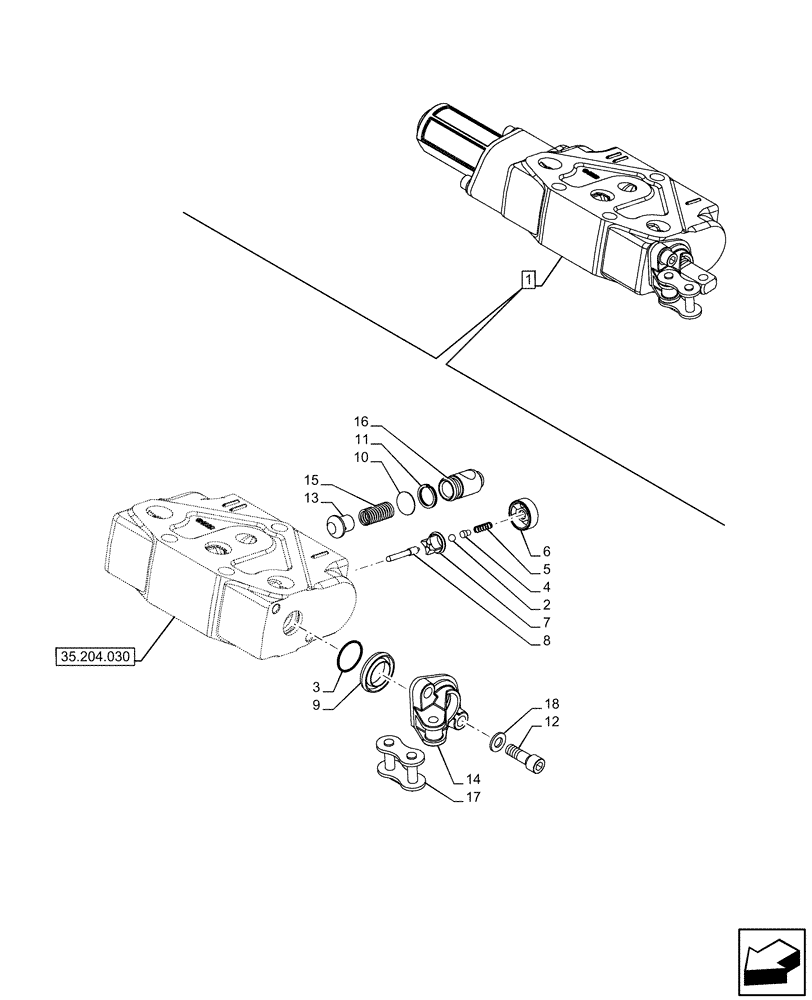

Запчасти Case IH FARMALL 120U (35.204.035) - VAR - 390183, 334195 - 2 REMOTE CONTROL VALVES, REAR, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84406706

REMOTE CONTROL VALVE

ASSY, Incl 2 - 18

1шт.

2

20063420

BALL,3.96mm OD, Gr 100

1шт.

3

5135734

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

2шт.

4

84587372

PIN,3mm OD x 4mm L

1шт.

5

87750880

VALVE SPRING,Compression, 3.8mm OD x 11.5mm L

1шт.

6

47439670

RETAINER CUP,M18 x 1.5 x 6.5mm Thk

1шт.

7

5143556

SPRING,Compression, 9mm OD x 21.2mm L

1шт.

8

5143555

PIN,5.5mm OD x 12mm L

1шт.

9

5116889

SCRAPER RING,15.6mm ID x 25.4mm OD x 4.8mm Thk

1шт.

10

5135732

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

1шт.

11

5138508

BACK-UP RING,Back Up, 10mm ID x 12mm OD x 10mm Thk

1шт.

12

5124338

HEX SOC SCREW,6.35mm OD x 19mm L

2шт.

13

5116886

PIN,9.4mm OD x 10.5mm L

1шт.

14

84283452

SUPPORT

1шт.

15

5116884

SPRING,Compression, 6mm OD x 16mm L

1шт.

16

5135835

VALVE GUIDE,14.25mm OD x 28.5mm L

1шт.

17

87658153

LINK,19.05mm Pitch

1шт.

18

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.
