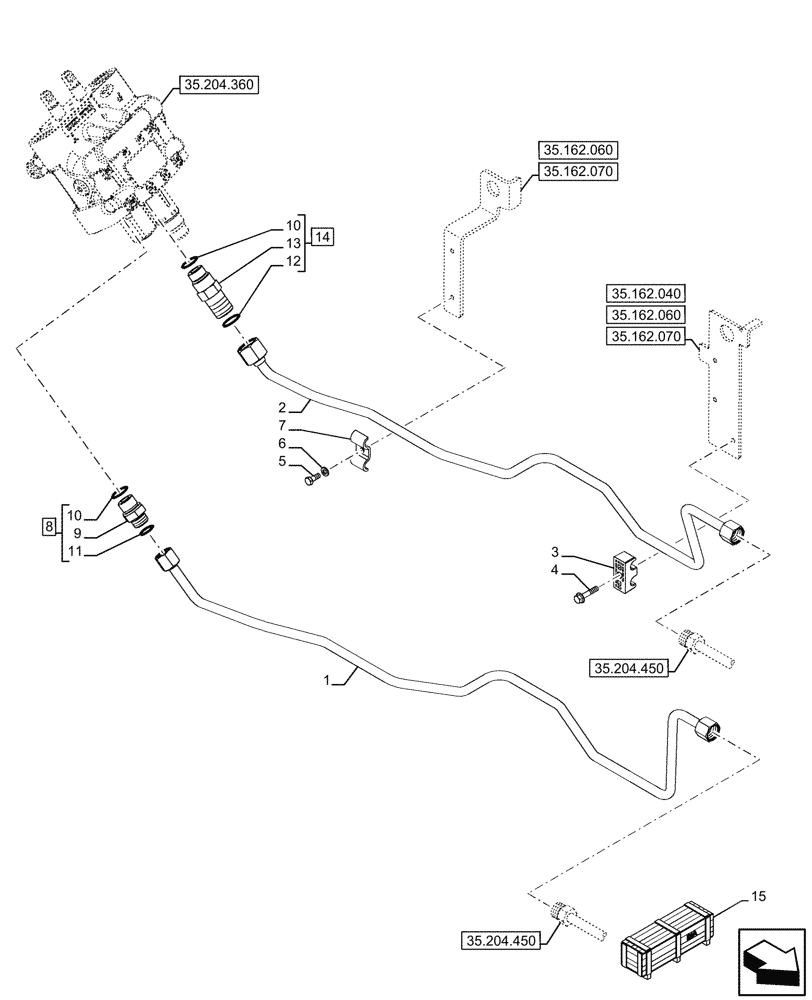

Запчасти Case IH FARMALL 120U (35.162.120) - VAR - 744942, 744943 - FRONT 3 POINT HITCH, LINE (35) - HYDRAULIC SYSTEMS

1

47766141

TUBE

1шт.

2

47766133

TUBE

1шт.

3

84528172

BRACKET

1шт.

4

16286324

BOLT,Hex, M6 x 30mm, Cl 8.8

1шт.

5

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

6

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

7

44906584

RETAINER COLLAR,12mm ID

1шт.

8

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

ASSY, Incl 9, 10 (Qty 1), 11

1шт.

9

NSS

NOT SOLD SEPARAT

Connector, Incl in 8

1шт.

10

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

11

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

12

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

13

NSS

NOT SOLD SEPARAT

Connector, Incl in 14

1шт.

14

87480324

HYD CONNECTOR

ASSY, Incl 10 (Qty 1), 12, 13

1шт.

15

718033010

DIA KIT, TRACTOR

Chassis Mounted D/A less FPTO F/Suspended Front Axle, Incl 1, 2

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

15

718034010

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO F/Suspended Front Axle, Incl 1, 2

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
