(35.162.070) - VAR - 758336, 758578 - FRONT 3 POINT HITCH, LINE

Запчасти Case IH FARMALL 120U (35.162.070) - VAR - 758336, 758578 - FRONT 3 POINT HITCH, LINE (35) - HYDRAULIC SYSTEMS

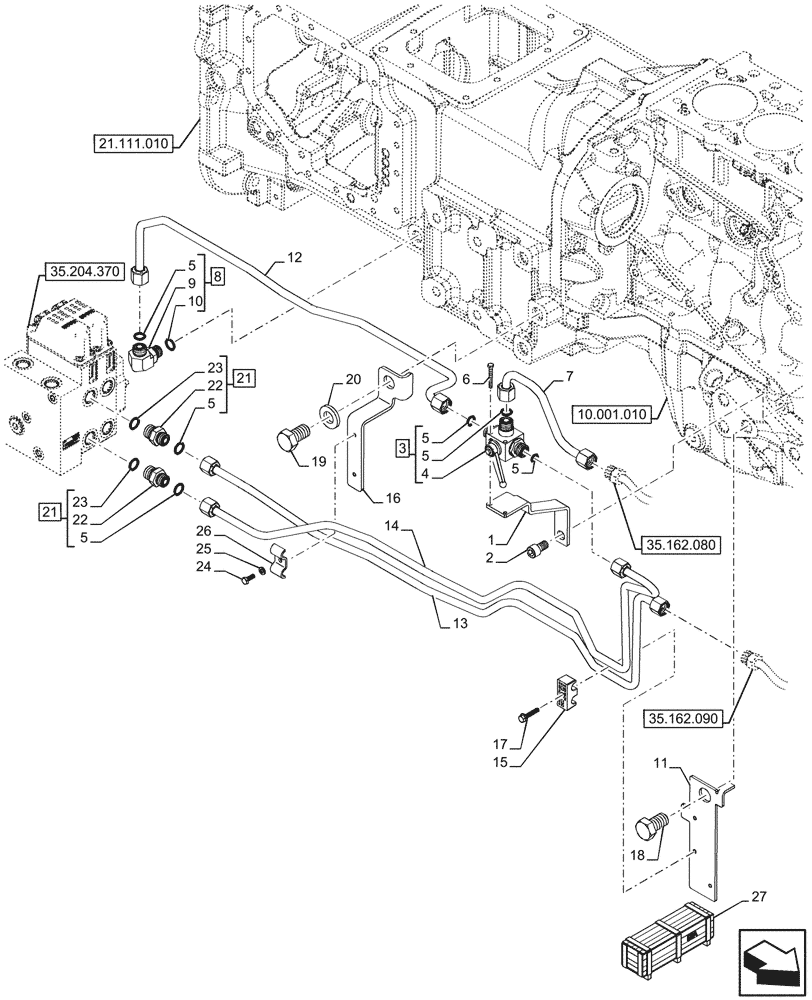

Схема запчастей Case IH FARMALL 120U - (35.162.070) - VAR - 758336, 758578 - FRONT 3 POINT HITCH, LINE (35) - HYDRAULIC SYSTEMS
21.111.010
22
3
23
8
5
22
9
5
5
12
19
6
25
2
26
1
11
15
7
18
20
24
17
16
5
21
23
5
13
14
4
10
27
5
21
10.001.010
35.162.090
35.162.080
35.204.370
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47715202

BRACKET

1шт.

2

14432424

HEX SOC SCREW,M12 x 1.75 x 20mm, Cl 8.8, Full Thd

1шт.

3

47442853

HYDRAULIC VALVE,13/16" - 16 x 13/16" - 16

ASSY, Incl 4, 5 (Qty 3)

1шт.

4

NSS

NOT SOLD SEPARAT

Valve, Incl in 3

1шт.

5

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

5шт.

6

10978621

BOLT,Hex, M5 x 40mm, Cl 8.8

2шт.

7

47617866

PIPE

from Hydraulic Valve to Steering Cylinder

1шт.

8

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

ASSY, Incl 5 (Qty 1), 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Elbow, Incl in 8

1шт.

10

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

11

47548554

BRACKET

1шт.

12

47879852

PIPE

from Hydraulic Valve to Transmission Housing

1шт.

13

47701385

TUBE

from Mid Mount Valve to Steering Cylinder

1шт.

14

47701380

TUBE

from Mid Mount Valve to Hydraulic Valve

1шт.

15

84528172

BRACKET

1шт.

16

47701402

BRACKET

1шт.

17

16286324

BOLT,Hex, M6 x 30mm, Cl 8.8

1шт.

18

15987724

SCREW

1шт.

19

86500658

BOLT,Hex, M20 x 2.5 x 45mm, Cl 10.9

1шт.

20

11191879

BELLEVILLE WASHER,Belleville, 20mm ID x 38mm OD x 5.2mm Thk

1шт.

21

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

ASSY, Incl 5 (Qty 1), 22, 23

2шт.

22

NSS

NOT SOLD SEPARAT

Connector, Incl in 21

2шт.

23

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

24

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

25

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

26

44906584

RETAINER COLLAR,12mm ID

1шт.

27

718235020

DIA KIT, TRACTOR

Chassis Mounted D/A less FPTO F/Suspended Front Axle, Incl 1 - 26

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

27

718090010

DIA KIT, TRACTOR

Chassis Mounted D/A less FPTO for Standard Front Axle, Incl 1 - 26

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

27

718091010

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO F/Standard Front Axle, Incl 1 - 26

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

27

718237020

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO F/Suspended Front Axle, Incl 1 - 26

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
