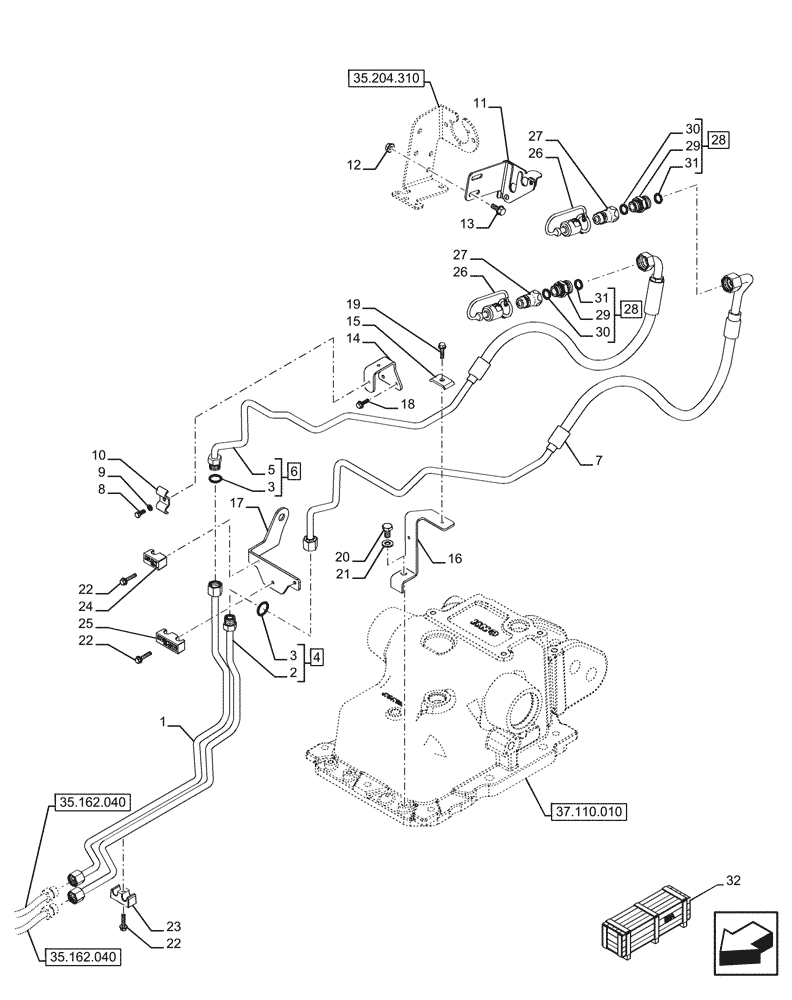

Запчасти Case IH FARMALL 120U (35.162.050) - VAR - 744558, 758288 - FRONT 3 POINT HITCH, REAR QUICK COUPLER (35) - HYDRAULIC SYSTEMS

1

47744445

PIPE

from Hydraulic Valve

1шт.

2

NSS

NOT SOLD SEPARAT

Pipe, Incl in 4

1шт.

3

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

4

47744399

PIPE

ASSY, from Hydraulic Valve, Incl 2, 3 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

Pipe, Incl in 6

1шт.

6

47744456

HOSE

ASSY, from Hydraulic Valve, Incl 3 (Qty 1), 5

1шт.

7

47744405

HOSE

from Hydraulic Valve

1шт.

8

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

9

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

10

44906584

RETAINER COLLAR,12mm ID

1шт.

11

47769780

SUPPORT

1шт.

12

14059314

FLANGE NUT,Hex, M8 x 1, Cl 8

2шт.

13

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

14

47548819

BRACKET

1шт.

15

84519154

HOSE CLAMP

1шт.

16

47874074

BRACKET

1шт.

17

47744563

BRACKET

1шт.

18

16286124

BOLT,M6 x 20mm, 8.8 DAC

2шт.

19

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

1шт.

20

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

21

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

22

16286324

BOLT,Hex, M6 x 30mm, Cl 8.8

3шт.

23

84528172

BRACKET

1шт.

24

87532290

BRACKET

1шт.

25

87325889

BRACKET

1шт.

26

47781126

DUST CAP

2шт.

27

83972881

COUPLING

2шт.

28

5185524

HYD CONNECTOR

ASSY, Incl 29 - 31

2шт.

29

NSS

NOT SOLD SEPARAT

Connector, Incl in 28

2шт.

30

14457380

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

2шт.

31

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

32

718212010

DIA KIT, TRACTOR

Hydraulic Top Link, Incl 11 - 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

32

718031010

DIA KIT, TRACTOR

Chassis Mounted, Incl 1 - 14, 17, 18, 22 - 31

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

32

718746070

DIA KIT, TRACTOR

Chassis Mounted D/A less FPTO, Incl 1 - 14, 17, 18, 21 - 31

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

32

718032010

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO, Incl 1 - 14, 17, 18, 21 - 31

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

32

718747070

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO, Incl 1 - 14, 17, 18, 21 - 31

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
