(35.162.030) - VAR - 744558, 744942, 744943, 758288, 758578 - FRONT 3 POINT HITCH, LINE, LOWER

Запчасти Case IH FARMALL 120U (35.162.030) - VAR - 744558, 744942, 744943, 758288, 758578 - FRONT 3 POINT HITCH, LINE, LOWER (35) - HYDRAULIC SYSTEMS

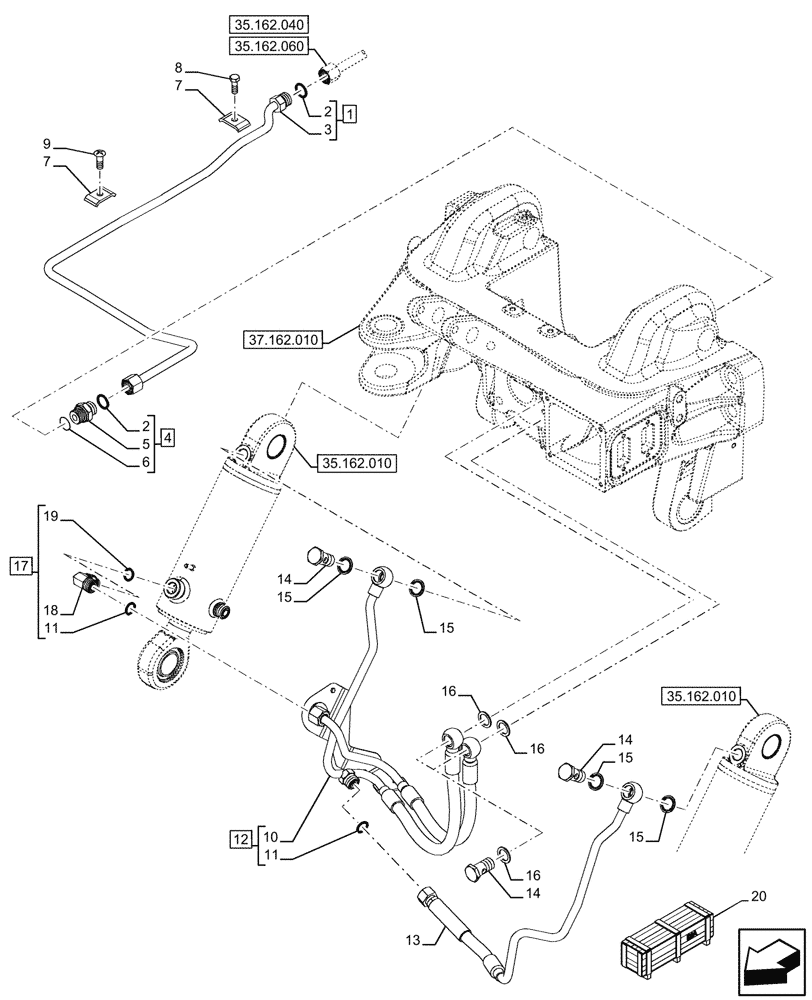

Схема запчастей Case IH FARMALL 120U - (35.162.030) - VAR - 744558, 744942, 744943, 758288, 758578 - FRONT 3 POINT HITCH, LINE, LOWER (35) - HYDRAULIC SYSTEMS
35.162.060
16
16
8
5
14
14
9
3
17
6
11
10
20
15
12
7
18
16
2
11
15
1
13
14
15
4
7
15
2
19
35.162.040
35.162.010
35.162.010
37.162.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84413200

TUBE

ASSY, from Hydraulic Valve to Cylinder, Incl 2 (Qty 1), 3

1шт.

2

81845038

O-RING,0.5" ID x 0.07" Thk

2шт.

3

NSS

NOT SOLD SEPARAT

Tube, Incl in 1

1шт.

4

82016497

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5

ASSY, Incl 2 (Qty 1), 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 4

1шт.

6

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

7

84519154

HOSE CLAMP

2шт.

8

16043628

BOLT,Hex, M8 x 25mm, Cl 8.8

1шт.

9

920017519

SCREW,Oval, M8 x 25mm, Stainless

1шт.

10

NSS

NOT SOLD SEPARAT

Tube, Incl in 12

1шт.

11

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

2шт.

12

47407395

HYD TUBE

ASSY, Incl 10, 11 (Qty 1)

1шт.

13

47953258

TUBE

1шт.

14

5170235

BANJO BOLT,M18 x 1.5 x 35mm

4шт.

15

87667806

SEALING WASHER,18mm ID x 26mm OD x 1.5mm

4шт.

16

10261660

SEALING WASHER,M18.3 x 26 x 1.5, Copper

4шт.

17

5185054

ELBOW,90 Degrees, M18 x 1.5 ORB 13/16-16 ORFS

ASSY, Incl 11 (Qty 1), 18, 19

1шт.

18

NSS

NOT SOLD SEPARAT

Elbow, Incl in 17

1шт.

19

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

20

718746070

DIA KIT, TRACTOR

Chassis Mounted D/A less FPTO, Incl 1 - 19

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

20

718090010

DIA KIT, TRACTOR

Chassis Mounted D/A less FPTO for Standard Front Axle, Incl 1 - 19

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

20

718088010

DIA KIT, TRACTOR

Chassis Mounted D/A less FPTO for Standard Front Axle, Incl 1 - 19

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

20

718747070

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO, Incl 1 - 19

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

20

718091010

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO F/Standard Front Axle, Incl 1 - 19

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

20

718089010

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO F/Standard Front Axle, Incl 1 - 19

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
