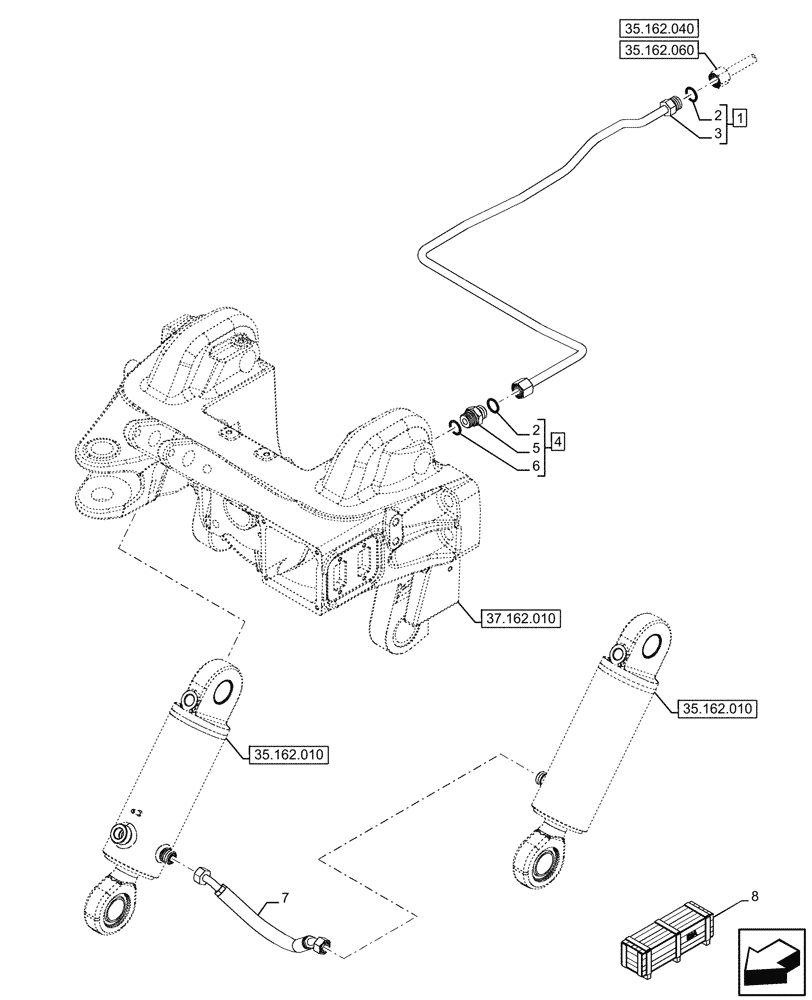

Запчасти Case IH FARMALL 120U (35.162.020) - VAR - 744558, 744942, 744943, 758288 - FRONT 3 POINT HITCH, LINE, LIFT (35) - HYDRAULIC SYSTEMS

1

47589542

HYD TUBE

ASSY, Incl 2 (Qty 1), 3

1шт.

2

81845038

O-RING,0.5" ID x 0.07" Thk

2шт.

3

NSS

NOT SOLD SEPARAT

Tube, Incl in 1

1шт.

4

82016497

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5

ASSY, Incl 2 (Qty 1), 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 4

1шт.

6

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

7

47397095

HYDRAULIC HOSE,9.53mm ID x 300mm L, SAE 100R2

1шт.

8

718746070

DIA KIT, TRACTOR

Chassis Mounted D/A less FPTO, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

718090010

DIA KIT, TRACTOR

Chassis Mounted D/A less FPTO for Standard Front Axle, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

718088010

DIA KIT, TRACTOR

Chassis Mounted D/A less FPTO for Standard Front Axle, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

718747070

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

718091010

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO F/Standard Front Axle, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

718089010

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO F/Standard Front Axle, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
