/ / / / / / / / (35.116.020) - VAR - 330849, 338844, 758294, 331844, 758295, 332844 - LIFT CYLINDER, FLEXIBLE HOSE

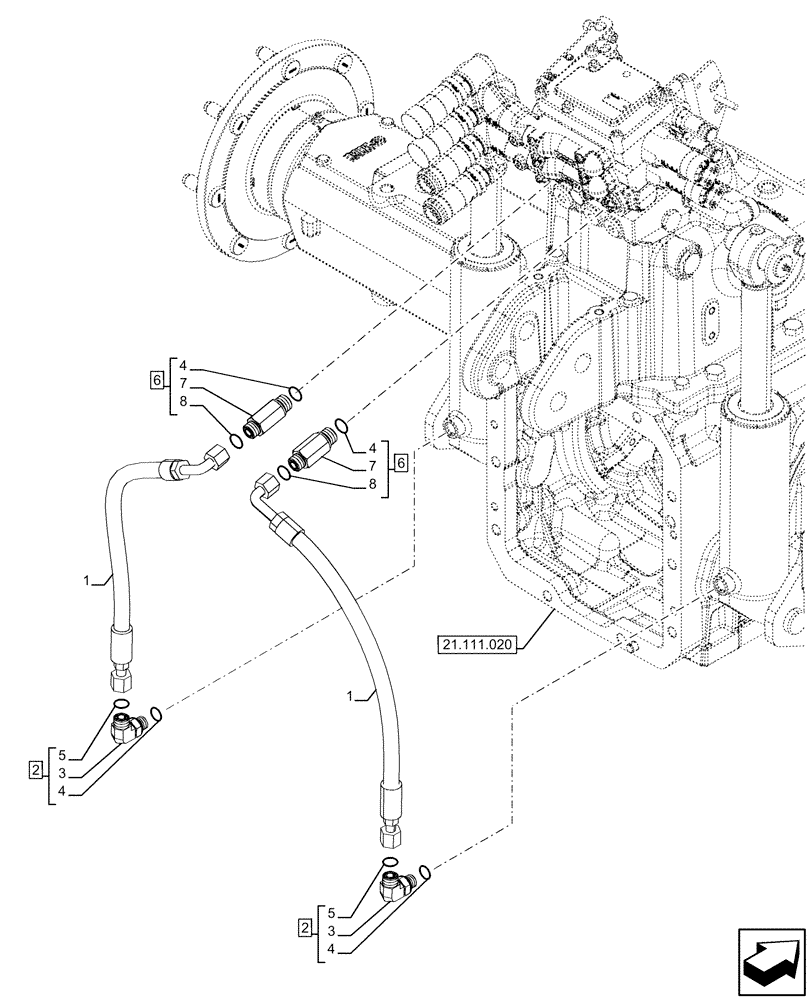

Запчасти Case IH FARMALL 120U (35.116.020) - VAR - 330849, 338844, 758294, 331844, 758295, 332844 - LIFT CYLINDER, FLEXIBLE HOSE (35) - HYDRAULIC SYSTEMS
21.111.020
5
4
3
1
3
7
8
6
4
4
4
2
2
8
5
7
6
1
1
47568600
HOSE
Lift Cylinder
2шт.
2
5185052
90 ELBOW,13/16"-16 x M18 x 1.5
ASSY, Incl 3, 4 (Qty 1), 5
2шт.
3
NSS
NOT SOLD SEPARAT
Elbow, Incl in 2
2шт.
4
5185511
O-RING,1.78mm Thk x 12.42mm ID, 85 Duro
2шт.
5
14437985
O-RING,15.3mm ID x 2.4mm
1шт.
6
87519164
HYD CONNECTOR
ASSY, Incl 4 (Qty 1), 7, 8
2шт.
7
NSS
NOT SOLD SEPARAT
Connector, Incl in 6
2шт.
8
14438085
O-RING,19.3mm ID x 2.4mm
1шт.
