(35.114.010) - VAR - 758295, 332844 - W/ 3 REAR REMOTE CONTROL VALVES, AUTOMATIC PICK-UP HITCH

Запчасти Case IH FARMALL 120U (35.114.010) - VAR - 758295, 332844 - W/ 3 REAR REMOTE CONTROL VALVES, AUTOMATIC PICK-UP HITCH (35) - HYDRAULIC SYSTEMS

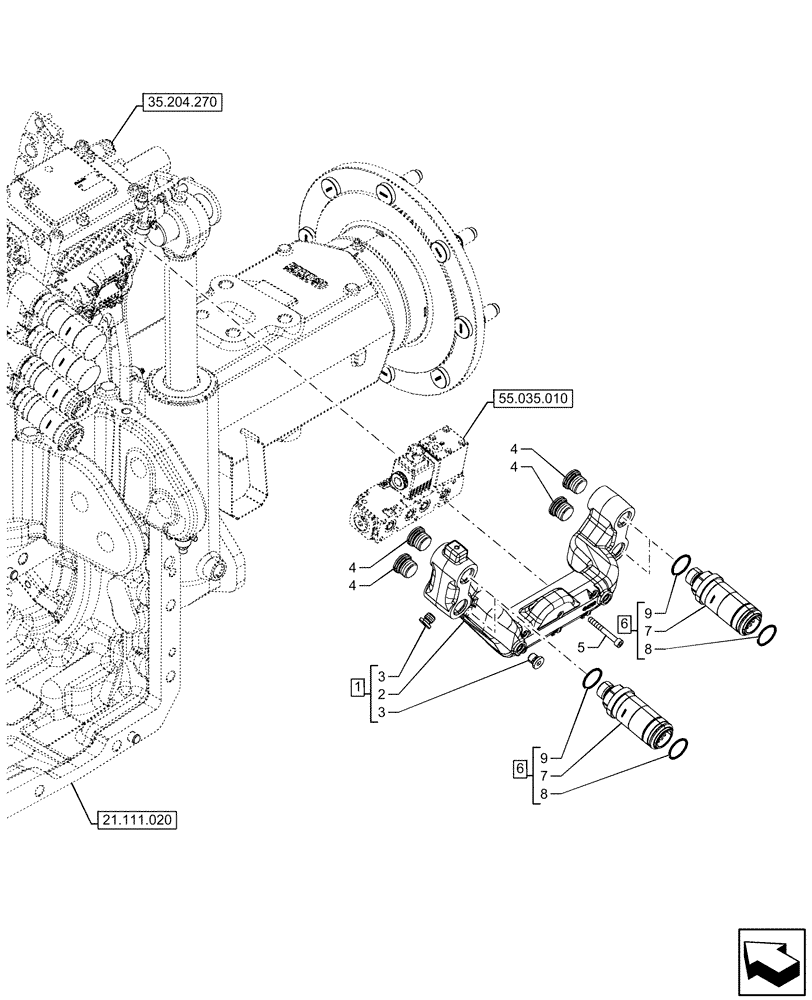

Схема запчастей Case IH FARMALL 120U - (35.114.010) - VAR - 758295, 332844 - W/ 3 REAR REMOTE CONTROL VALVES, AUTOMATIC PICK-UP HITCH (35) - HYDRAULIC SYSTEMS
21.111.020
1
7
5
6
3
3
6
4
9
2
9
8
4
8
4
7
4
55.035.010
35.204.270
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47801444

MANIFOLD

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Manifold, Incl in 1

1шт.

3

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

3шт.

4

86598047

PLUG,Hex Soc, M22 x 1.5, ORB

4шт.

5

356464

HEX SOC SCREW,M6 x 50mm, Cl 8.8

6шт.

6

47370116

COUPLING

ASSY, Incl 7 - 9

4шт.

7

NSS

NOT SOLD SEPARAT

Coupler, Incl in 6

4шт.

8

87382012

SEAL KIT

1шт.

9

14438085

O-RING,19.3mm ID x 2.4mm

1шт.
