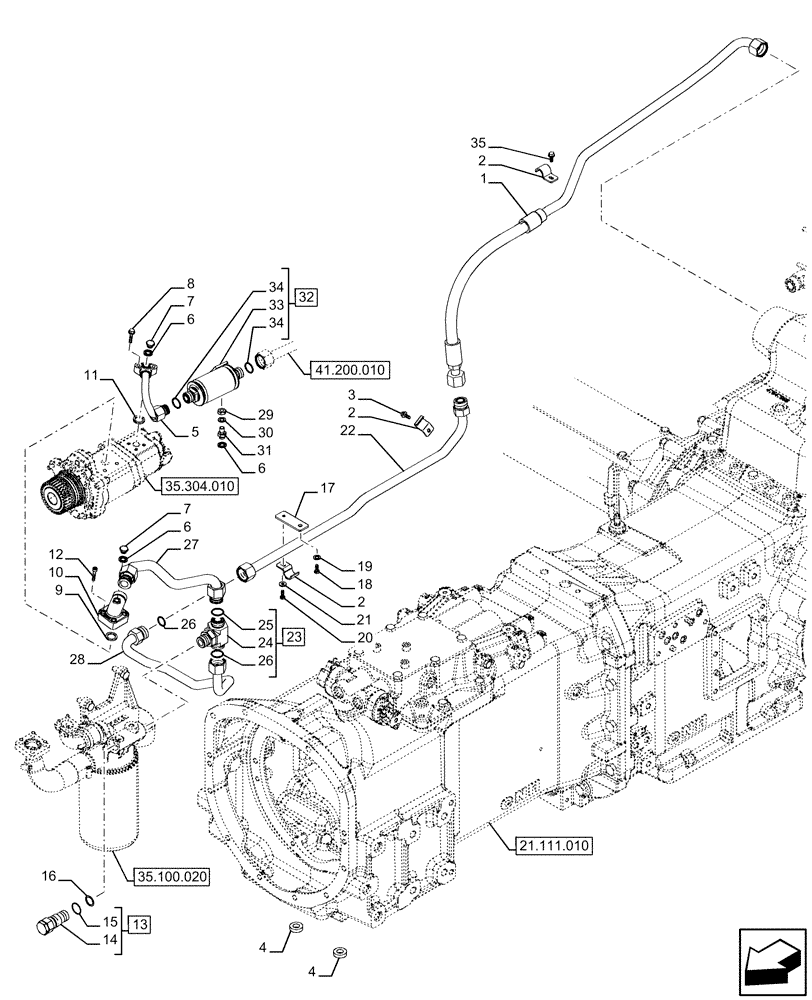

1
47746871
PIPE
from Remote Control Valve to Pump
1шт.
2
84585106
CLAMP,R12.5mm x 25mm W
3шт.
3
87015907
BOLT,M6 x 10mm, Full Thd, 8.8 PHC
1шт.
4
5165001
SPACER,15mm ID x 30mm OD x 8mm L
2шт.
5
84564122
HYDRAULIC HOSE
1шт.
6
5183780
SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk
3шт.
7
10300511
PLUG,M12 x 1.5 x 12, Cl5.8
2шт.
8
86511839
BOLT,Hvy Hex, M6 x 30mm, Cl 8.8
2шт.
9
87335172
SEALING RING,19mm ID x 26mm OD x 3mm Thk
1шт.
10
47505499
HYD CONNECTOR,M22 x 1.5/M27 x 3 x 54mm L
1шт.
11
47505593
SEAL,Square, 2.62mm Thk x 34.59mm ID, 90 Duro
1шт.
12
14306621
HEX SOC SCREW,M8 x 35mm, Cl 8.8, Full Thd
3шт.
13
47128782
VALVE PRESSURE RELIE
ASSY, Incl 14, 15
1шт.
14
NSS
NOT SOLD SEPARAT
Valve, Incl in 13
1шт.
15
14453980
O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro
1шт.
16
10263360
SEAL,20.3mm ID x 26mm OD x 1mm Thk
1шт.
17
47691871
BRACKET
1шт.
18
16586324
BOLT,Hex, M8 x 20mm, Cl 8.8, Full Thd
1шт.
19
13507104
WASHER,9.2mm ID x 16mm OD x 1.5mm Thk
1шт.
20
86508568
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8
1шт.
21
12647621
WASHER,6.15mm ID x 16mm OD x 2mm Thk
1шт.
22
47862757
PIPE
from Remote Control Valve to Pump
1шт.
23
84568335
HYD CONNECTOR,M27 x 2 x 84mm L
ASSY, Incl 24 - 26 (Qty 1)
1шт.
24
NSS
NOT SOLD SEPARAT
Fitting, Incl in 23
1шт.
25
86598103
O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro
1шт.
26
9825770
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
2шт.
27
47508580
PIPE
from Pump to Oil Support
1шт.
28
47679148
HOSE
from Support Filter
1шт.
29
11691311
NUT
1шт.
30
12648301
WASHER,10.2mm ID x 17mm OD x 1.5mm Thk
1шт.
31
84564689
SCREW,M10 x 1, M12 x 1.5 x 29mm L
1шт.
32
84606407
HYDRAULIC OIL FILTER
ASSY, Incl 33, 34
1шт.
33
NSS
NOT SOLD SEPARAT
Filter, Incl in 32
1шт.
34
9992069
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
2шт.
35
16296924
FLANGE BOLT,Hvy Hex, M6 x 14mm, Cl 8.8, Full Thd
1шт.
