(35.100.020) - VAR - 334119 - FILTER, SUCTION PIPE

Запчасти Case IH FARMALL 120U (35.100.020) - VAR - 334119 - FILTER, SUCTION PIPE (35) - HYDRAULIC SYSTEMS

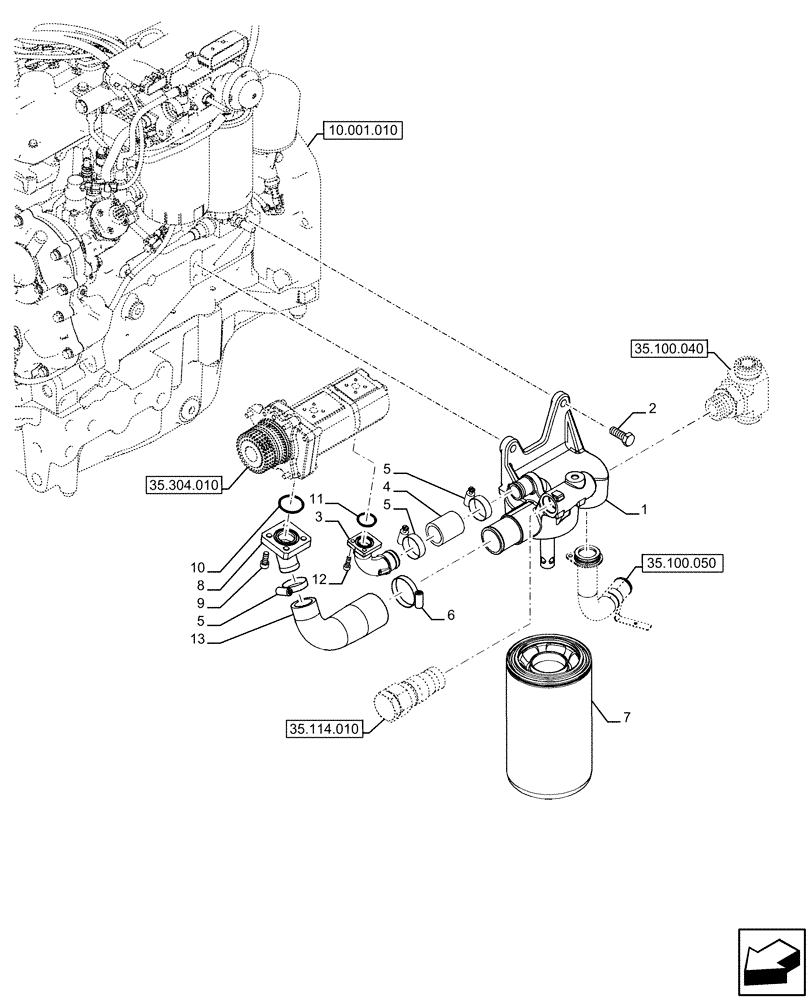

Схема запчастей Case IH FARMALL 120U - (35.100.020) - VAR - 334119 - FILTER, SUCTION PIPE (35) - HYDRAULIC SYSTEMS
35.304.010
5
8
3
1
10
6
5
7
2
5
11
12
4
9
13
10.001.010
35.114.010
35.100.050
35.100.040
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84581495

SUPPORT

1шт.

2

11112624

BOLT,M12 x 35, 8.8, Full Thd

2шт.

3

84581955

HYDRAULIC MANIFOLD

1шт.

4

84581957

SLEEVE,32mm ID x 42mm OD x 50mm L

1шт.

5

13000690

HOSE CLAMP,32mm - 50mm, Worm Gear

3шт.

6

13000790

HOSE CLAMP,40mm - 60mm, Worm Gear

1шт.

7

84581942

HYDRAULIC OIL FILTER,135mm OD x 244mm L, M55 x 1.5, 50 Microns

1шт.

8

84348891

TUBE

1шт.

9

14306321

HEX SOC SCREW,M8 x 20mm, Cl 8.8

4шт.

10

14458380

O-RING,0.103" Thk x 1.299" ID, -125, Cl 5, 75 Duro

1шт.

11

14457780

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

1шт.

12

86531615

HEX SOC SCREW,M6 x 20mm, Cl 8.8

3шт.

13

84348893

SLEEVE

1шт.
