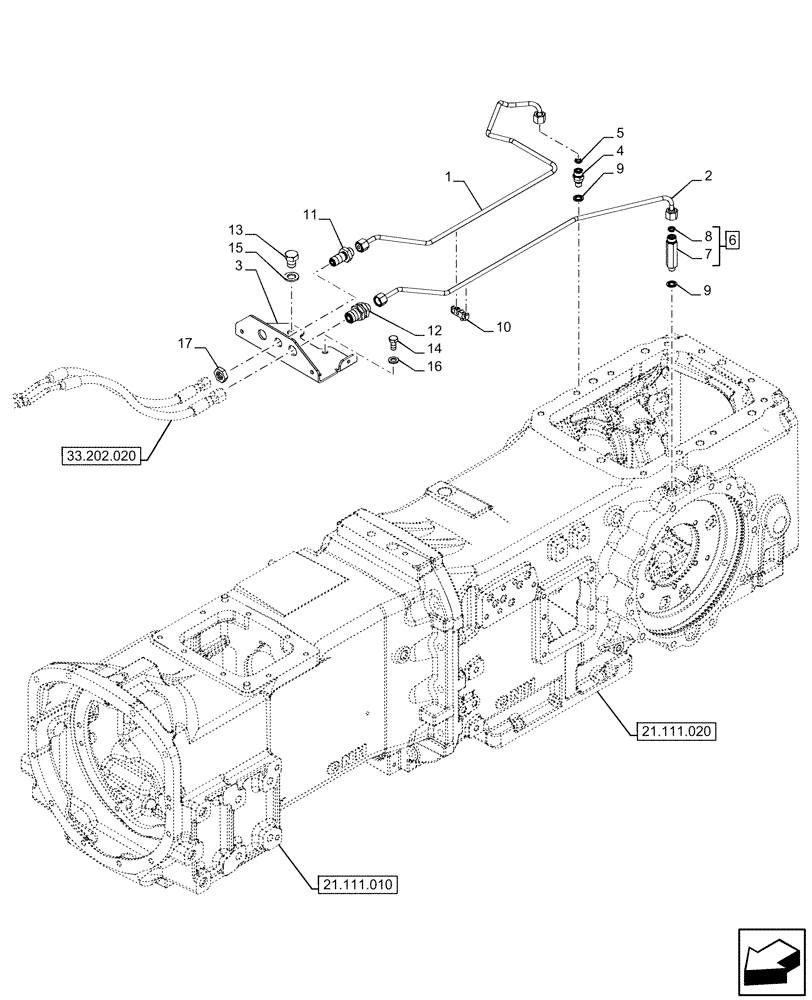

Запчасти Case IH FARMALL 120U (33.202.040) - VAR - 333166, 390166 - BRAKE LINES (33) - BRAKES & CONTROLS

1

47391786

PIPE

from Transmission to Brake Cylinder

1шт.

2

47404768

TUBE

from Transmission to Brake Cylinder

1шт.

3

47394426

BRACKET

1шт.

4

47131549

FITTING,M12 x 1.5

1шт.

5

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

6

47495312

HYD CONNECTOR

ASSY, Incl 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

8

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.

10

14579580

CLIP

1шт.

11

86978770

UNION,11/16"-6, ORFS

1шт.

12

87711900

HYD CONNECTOR

1шт.

13

15983121

SCREW,Hex, M16 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

14

86637962

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

15

10520205

WASHER,Flat, 16.40mm ID x 28.00mm OD x 3.00mm, CST, ZND

1шт.

16

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

17

87010704

BHD LOCK NUT,11/16"-16

1шт.
