Запчасти Case IH FARMALL 120U (31.146.020) - VAR - 744943, 758578, 758288 - FRONT PTO, CLUTCH (31) - IMPLEMENT POWER TAKE OFF

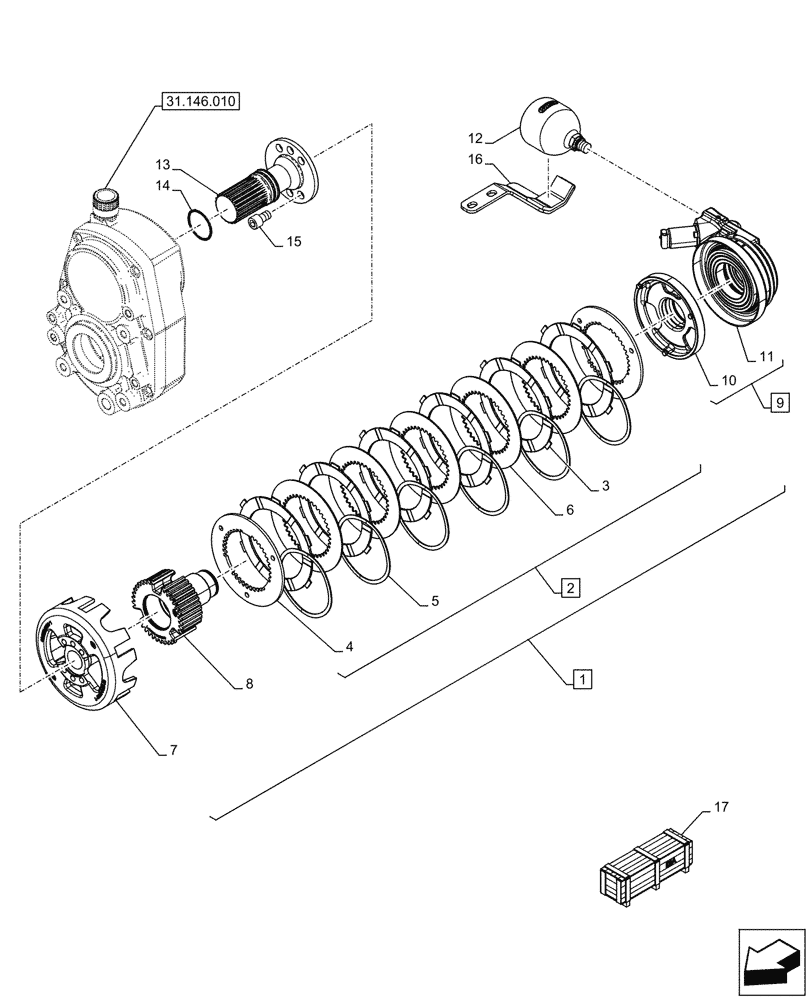

Схема запчастей Case IH FARMALL 120U - (31.146.020) - VAR - 744943, 758578, 758288 - FRONT PTO, CLUTCH (31) - IMPLEMENT POWER TAKE OFF
16
5
10
11
3
31.146.010
9
8
17
1
7
14
6
12
15
2
4
13

Артикул

Название

Примечание

Количество

1

84153845

PTO CLUTCH

ASSY, Incl 2, 7 - 9

1шт.

2

47733462

DISC

ASSY, Incl 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

Cover, Incl in 2

6шт.

4

NSS

NOT SOLD SEPARAT

Cover, Incl in 2

2шт.

5

NSS

NOT SOLD SEPARAT

Wave Washer, Incl in 2

6шт.

6

NSS

NOT SOLD SEPARAT

Cover, Incl in 2

5шт.

7

47874866

CLUTCH HOUSING

1шт.

8

47874867

HUB

1шт.

9

47733461

CLUTCH

ASSY , Incl 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

Release Ring, Incl in 9

1шт.

11

NSS

NOT SOLD SEPARAT

Clutch Slave Cylinder, Incl in 9

1шт.

12

47455512

ACCUMULATOR,0.16L

1шт.

13

84548419

SHAFT

1шт.

14

9820460

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

1шт.

15

84603135

HEX SOC SCREW,M12 x 1.25 x 20mm, Cl 12.9

6шт.

16

47556974

SUPPORT

1шт.

17

718048010

DIA KIT, TRACTOR

Front PTO, Incl 1 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

17

718273070

DIA KIT, TRACTOR

FPTO for FHPL, Incl 1 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

17

718823070

DIA KIT, TRACTOR

FPTO less FHPL F/Suspended Front Axle, Incl 1 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

17

718047010

DIA KIT, TRACTOR

FPTO less FHPL F/Suspended Front Axle, Incl 1 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

17

718032010

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO, Incl 1 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

17

718747070

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO, Incl 1 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

17

718091010

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO F/Standard Front Axle, Incl 1 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

17

718237020

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO F/Suspended Front Axle, Incl 1 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

17

718034010

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO F/Suspended Front Axle, Incl 1 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

17

718089010

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO F/Standard Front Axle, Incl 1 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 36
