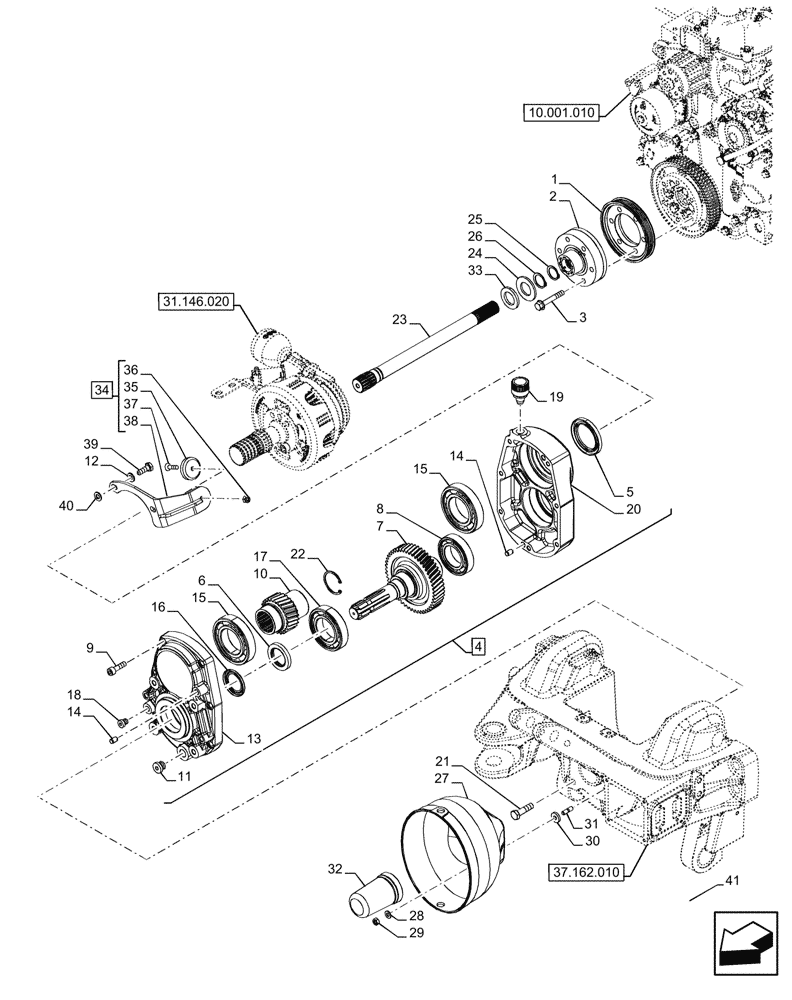

Запчасти Case IH FARMALL 120U (31.146.010) - VAR - 744943, 758578, 758288 - FRONT PTO (31) - IMPLEMENT POWER TAKE OFF

1

87310284

PULLEY

1шт.

2

47632579

DAMPER

1шт.

3

84278116

FLANGE BOLT,Hex, M10 x 65mm, Cl 10.9

6шт.

4

84313806

GEARBOX

ASSY, Incl 5 - 11, 13, 14 (Qty 2), 15 - 20

1шт.

5

5119540

SEAL,60mm ID x 85mm OD x 8mm Thk

1шт.

6

87350856

SEAL,38.4mm ID x 62mm OD x 10mm Thk

1шт.

7

84313812

GEAR,48T

1шт.

8

26794660

BALL BEARING,50.00mm x 90.00mm x 20.00mm

1шт.

9

14307634

HEX SOC SCREW,M10 x 1.25 x 35mm, Cl 10.9, Full Thd

7шт.

10

84313811

GEAR,25T

1шт.

11

1009480

PLUG,Hex, M18 x 1.5

1шт.

12

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

13

84313810

HOUSING

1шт.

14

10839710

DOWEL,M10 x 15.00mm

3шт.

15

20141040

BALL BEARING,60mm ID x 110mm OD x 22mm W

2шт.

16

4996762

RETAINER,40.2mm ID x 62mm OD x 6mm L

1шт.

17

20973340

BALL BEARING,55.00mm x 100.00mm x 21.00mm

1шт.

18

970659

PLUG,Hex, M12 x 1.5 x 17.3mm L

1шт.

19

47781932

BREATHER,M18 x 1.5

1шт.

20

84313808

HOUSING

1шт.

21

412087

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

6шт.

22

370011

CIRCLIP,M52 x 2mm Thk, Internal

1шт.

23

47437763

DRIVE SHAFT

1шт.

24

86511329

WASHER,31mm ID x 56mm OD x 4mm Thk

1шт.

25

300629

SNAP RING,M28, Ext

1шт.

26

370003

SNAP RING,M30, External

1шт.

27

84556976

PROTECTING COVER

1шт.

28

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

29

43362

NUT,M8 x 1.25, Cl 10

2шт.

30

86592699

WASHER,8.4mm ID x 23mm OD x 4mm Thk

2шт.

31

13516624

STUD,M8 x 28mm L

2шт.

32

5165104

COVER

1шт.

33

47461145

SPACER,31mm ID x 50mm OD x 5mm L

1шт.

34

47527662

BRACKET

ASSY, Incl 35 - 38

1шт.

35

47508595

MAGNET

1шт.

36

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

37

14442231

SCREW,Flat Csk Hd, M8 x 1.25 x 30mm, Cl 10.9

1шт.

38

NSS

NOT SOLD SEPARAT

Bracket, Incl in 34

1шт.

39

11306934

BOLT,Hex, M10 x 1.25 x 30, 10.9, Full Thd

2шт.

40

13550404

WASHER,10.2mm ID x 20mm OD x 2mm Thk

2шт.

41

718048010

DIA KIT, TRACTOR

Front PTO, Incl 1 - 40

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

41

718273070

DIA KIT, TRACTOR

FPTO for FHPL, Incl 1 - 13, 14 (Qty 1), 15 - 40

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

41

718823070

DIA KIT, TRACTOR

FPTO less FHPL, Incl 1 - 13, 14 (Qty 1), 15 - 40

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

41

718047010

DIA KIT, TRACTOR

FPTO less FHPL, Incl 1 - 13, 14 (Qty 1), 15 - 40

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

41

718032010

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO, Incl 1 - 40

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

41

718747070

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO, Incl 1 - 40

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

41

718091010

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO F/Standard Front Axle, Incl 1 - 40

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

41

718237020

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO F/Suspended Front Axle, Incl 1 - 40

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

41

718034010

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO F/Suspended Front Axle, Incl 1 - 40

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

41

718089010

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO F/Standard Front Axle, Incl 1 - 40

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
