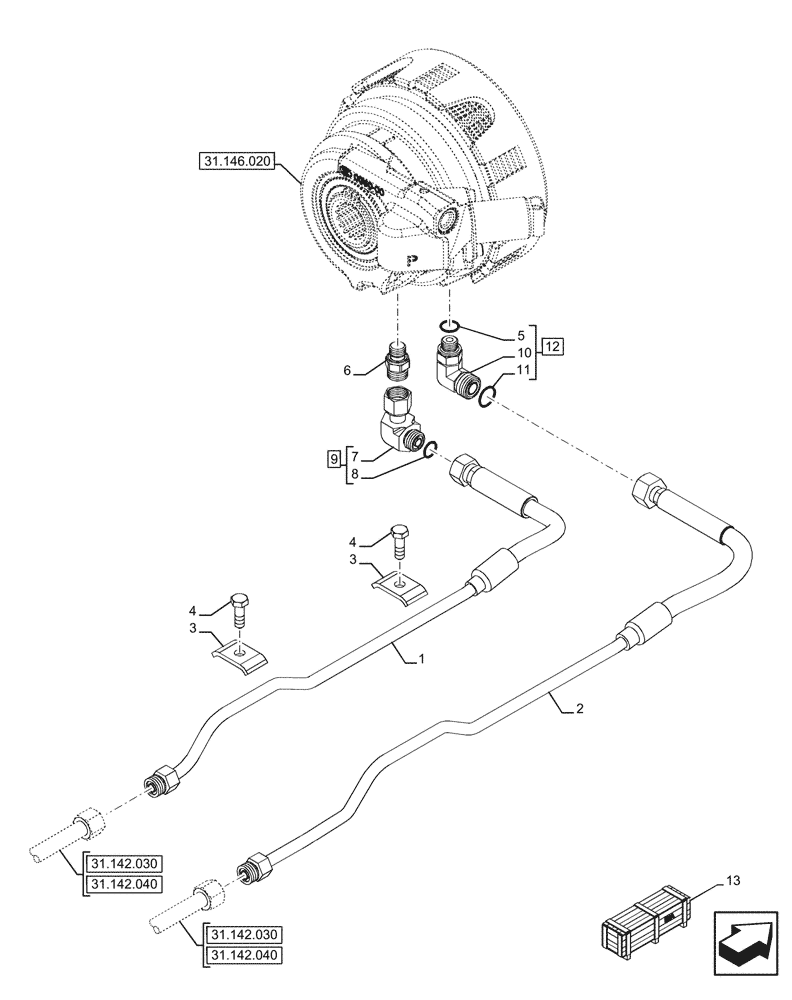

Запчасти Case IH FARMALL 120U (31.142.020) - VAR - 758288, 744943, 758578 - FRONT PTO, HYDRAULIC LINE (31) - IMPLEMENT POWER TAKE OFF

1

47675354

PIPE

Delivery Front PTO

1шт.

2

47675351

PIPE

Return Front PTO

1шт.

3

84519154

HOSE CLAMP

2шт.

4

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

5

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

6

47376245

HYD CONNECTOR,Straight, M14 x 1.5 ORB, 11/16"-16" UNF

1шт.

7

NSS

NOT SOLD SEPARAT

Elbow, Incl in 9

1шт.

8

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

ASSY, Incl 7, 8

1шт.

10

NSS

NOT SOLD SEPARAT

Elbow, Incl in 12

1шт.

11

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

12

5185548

ELBOW,M14 x 1.5mm ORB, 13/16"-16" ORFS

ASSY, Incl 5, 10, 11

1шт.

13

718048010

DIA KIT, TRACTOR

Front PTO, Incl 1 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

13

718047010

DIA KIT, TRACTOR

FPTO less FHPL F/Suspended Front Axle, Incl 1 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

13

718032010

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO, Incl 1 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

13

718237020

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO F/Suspended Front Axle, Incl 1 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

13

718034010

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO F/Suspended Front Axle, Incl 1 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
