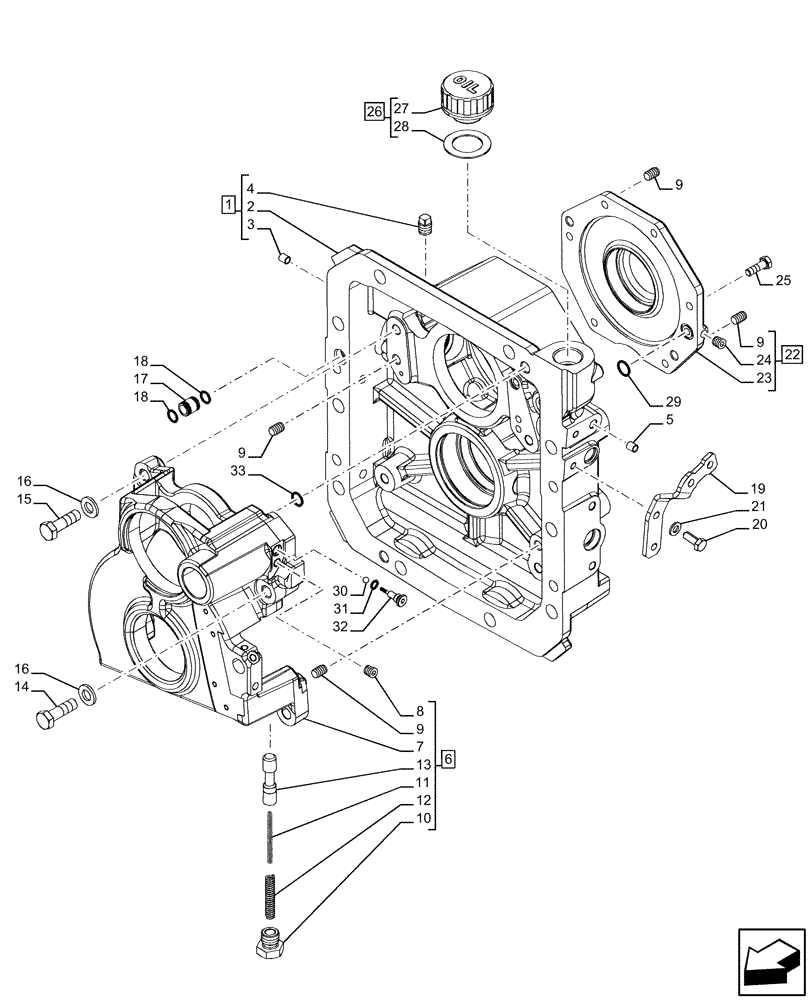

Запчасти Case IH FARMALL 120U (31.116.040) - VAR - 331729 - REAR PTO, HOUSING & COVERS, 3-SPEED, NA (31) - IMPLEMENT POWER TAKE OFF

1

47404218

COVER

ASSY, Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

3

14536290

PLUG,6mm

1шт.

4

14324014

PLUG

1шт.

5

14536590

PLUG,10.00mm Dia x 19.80mm L

1шт.

6

47601529

SUPPORT

ASSY, Incl 7 - 13

1шт.

7

NSS

NOT SOLD SEPARAT

Support, Incl in 6

1шт.

8

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

1шт.

9

10839710

DOWEL,M10 x 15.00mm

2шт.

10

47361972

PLUG

1шт.

11

47362554

SPRING

1шт.

12

47362555

SPRING

1шт.

13

47361985

SPOOL

1шт.

14

15540921

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

1шт.

15

15540621

SCREW,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

3шт.

16

11190779

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

4шт.

17

87740885

UNION

1шт.

18

14453180

O-RING,12.42mm ID x 1.78mm

2шт.

19

47650375

BRACKET

1шт.

20

16043534

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9, Full Thd

2шт.

21

11194079

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

2шт.

22

5165974

COVER

ASSY, Incl 23, 24, 9 (Qty 2)

1шт.

23

NSS

NOT SOLD SEPARAT

Cover, Incl in 22

1шт.

24

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

1шт.

25

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

26

47392388

PLUG

ASSY, Incl 27, 28

1шт.

27

NSS

NOT SOLD SEPARAT

Plug, Incl in 26

1шт.

28

47398524

SEAL

1шт.

29

14453380

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

2шт.

30

20063470

BALL,7.9mm OD

1шт.

31

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

32

5183078

PLUG

1шт.

33

14456880

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

1шт.
