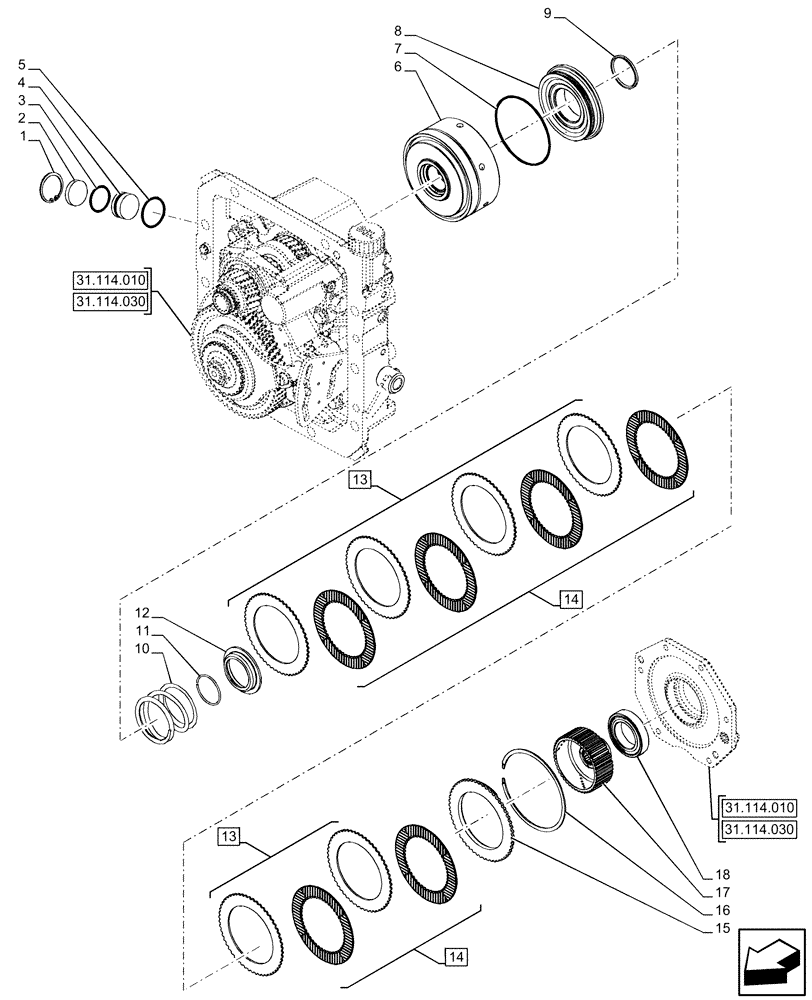

Запчасти Case IH FARMALL 120U (31.114.050) - VAR - 330801, 331729, 331819, 334792, 334793, 390433, 391727 - REAR PTO, CLUTCH, DISC (31) - IMPLEMENT POWER TAKE OFF

1

11060176

CIRCLIP,M45 x 1.75mm Thk, Int

1шт.

2

5165946

DISC

1шт.

3

14459080

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

1шт.

4

5165953

PISTON

1шт.

5

14458480

O-RING,0.103" Thk x 1.362" ID, -126, Cl 5, 75 Duro

1шт.

6

5189184

HOUSING

1шт.

7

5172413

SLIPPER,107.5mm ID x 115mm OD x 3.2mm Thk

1шт.

8

87650341

PISTON

1шт.

9

5137564

SEAL,48.55mm ID x 56mm OD x 3.2mm Thk

1шт.

10

5171681

SPRING,Compression, 79mm OD x 61mm L

1шт.

11

13399376

SNAP RING,M50, Int

1шт.

12

5193205

RETAINER CUP

1шт.

13

5189182

CLUTCH PLATE,98.8mm ID x 139.11mm OD x 2.3mm Thk

6шт.

14

5165951

CLUTCH PLATE

6шт.

15

47389353

CLUTCH DISC,98mm ID x 139.11mm OD x 8.5mm Thk

1шт.

16

5124067

CIRCLIP

1шт.

17

87650342

HUB

1шт.

18

24905130

BALL BEARING,45 mm ID x 75 mm OD x 16 mm

1шт.
