Запчасти Case IH FARMALL 120U (31.114.020) - VAR - 391727 - REAR PTO, DRIVEN SHAFT, 2-SPEED, EU (31) - IMPLEMENT POWER TAKE OFF

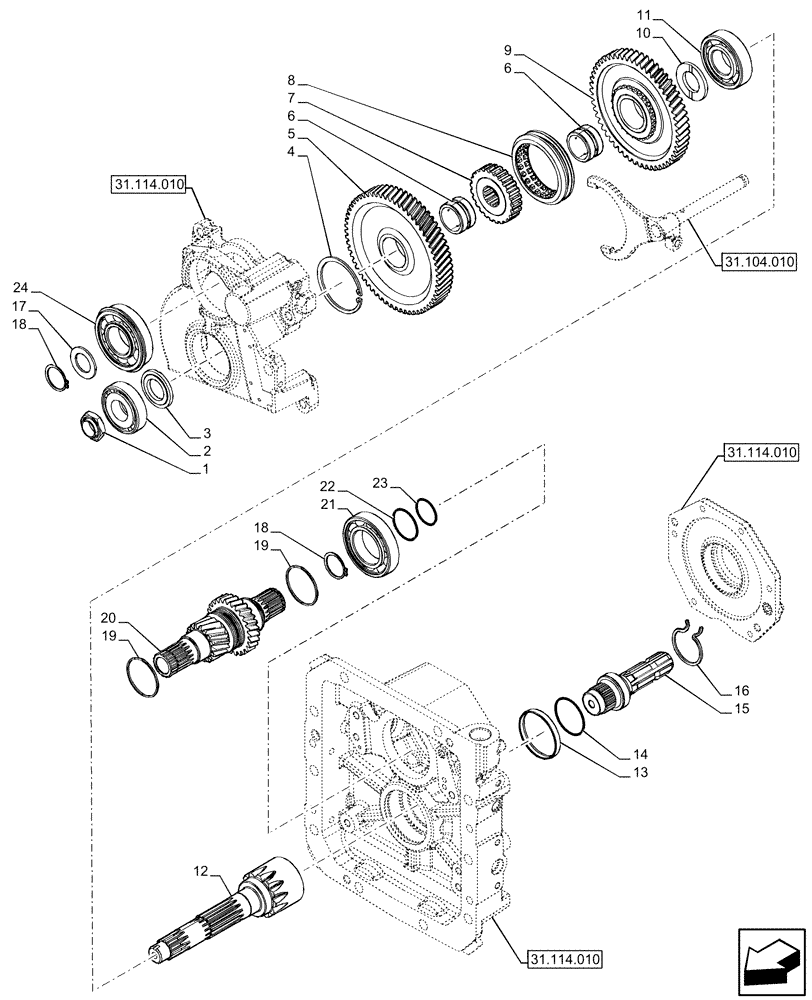

Схема запчастей Case IH FARMALL 120U - (31.114.020) - VAR - 391727 - REAR PTO, DRIVEN SHAFT, 2-SPEED, EU (31) - IMPLEMENT POWER TAKE OFF
31.114.010
18
2
21
16
6
24
5
20
19
4
22
6
8
15
9
14
13
18
11
3
10
7
23
12
17
19
1
31.104.010
31.114.010
31.114.010

Артикул

Название

Примечание

Количество

1

5122985

NUT,Ring, M32, 1.5 Pitch

1шт.

2

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

1шт.

3

5162811

THRUST WASHER,35.1mm ID x 62mm OD x 6.5mm Thk

1шт.

4

11062476

SNAP RING,M90, Int

1шт.

5

84483099

GEAR,24T/ 61T

1шт.

6

5101537

BUSHING,39.2mm ID x 50mm OD x 29.04mm L

2шт.

7

5129512

SLEEVE,24T, 14T

1шт.

8

5129513

SYNCHRONIZER,24T

1шт.

9

84483100

GEAR,52T/ 90T

1шт.

10

5109656

THRUST WASHER,39.25mm ID x 64mm OD x 4mm Thk

1шт.

11

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

1шт.

12

5198353

SHAFT

1шт.

13

5165976

OIL SEAL,60mm ID x 80mm OD x 10mm Thk

1шт.

14

14459881

O-RING,2.237" ID x 2.443" OD x 0.103"

1шт.

15

47133081

PTO SHAFT

1шт.

16

87347166

SNAP RING,M45 x 3.12mm Thk, Ext

1шт.

17

4996869

THRUST WASHER,40.1mm ID x 62mm OD x 5mm Thk

1шт.

18

11068876

SNAP RING,M40, Ext

2шт.

19

5175996

RETAINER

2шт.

20

84492914

PTO SHAFT

1шт.

21

20973340

BALL BEARING,55.00mm x 100.00mm x 21.00mm

1шт.

22

14455080

O-RING,50.52mm ID x 1.78mm

1шт.

23

14454680

O-RING,1.489" ID x 0.07" Width

1шт.

24

28995900

BALL BEARING,45mm ID x 100mm OD x 25mm W

1шт.

Выбрано товаров: 24
