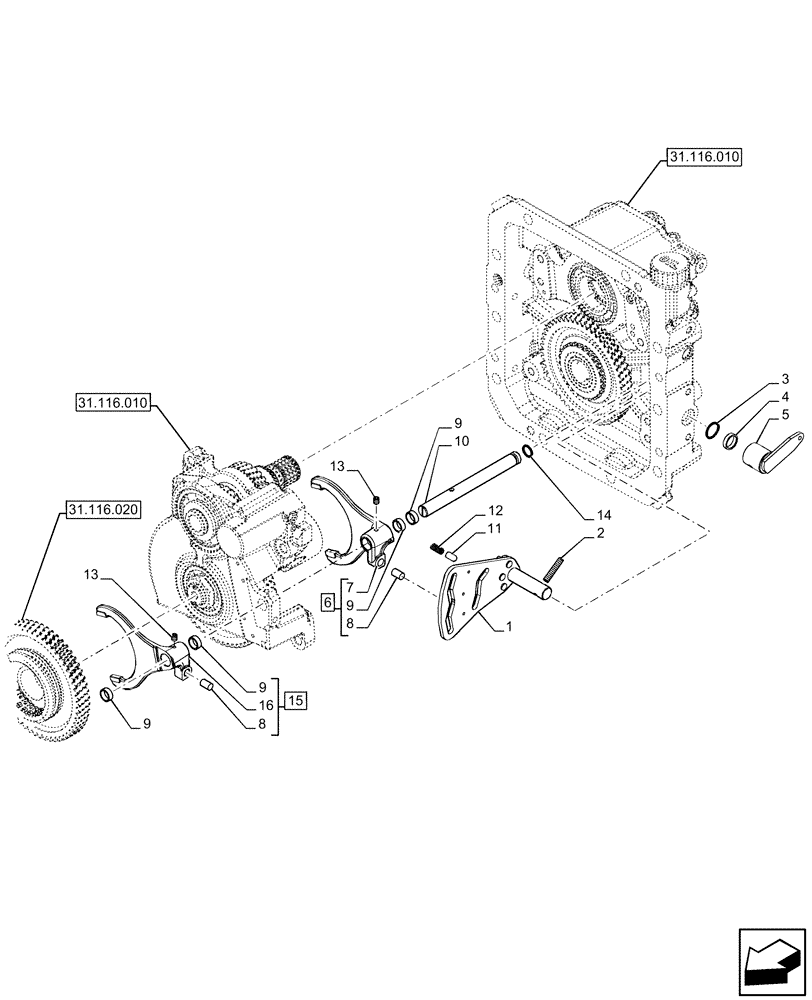

Запчасти Case IH FARMALL 120U (31.104.060) - VAR - 330801, 331819 - REAR PTO, ROD & FORKS, 3-SPEED, EU (31) - IMPLEMENT POWER TAKE OFF

1

84586363

PIVOT

1шт.

2

14607270

LOCK PIN,M8 x 40, Slotted

1шт.

3

14457580

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

1шт.

4

594832

RING,20.1mm ID x 24.75-24.8mm OD x 6mm Thk

1шт.

5

47544022

LEVER

1шт.

6

84497598

YOKE

ASSY, Incl 7, 8 (Qty 1), 9 (Qty 2)

1шт.

7

84497596

PAD

1шт.

8

5154545

PIN,10mm OD x 25mm L

2шт.

9

84496649

BUSHING,18mm ID x 20.035mm OD x 10.0mm L

4шт.

10

84497073

ROD

1шт.

11

5150839

PAWL,8.5mm OD x 15.4mm L

1шт.

12

5128251

SPRING,Compression, 8.5mm OD x 20mm L

1шт.

13

13798621

SET SCREW,Hex Skt, M8 x 12mm, Cone Pt

2шт.

14

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

15

84496489

YOKE

ASSY, Incl 8 (Qty 1), 9 (Qty 2), 16

1шт.

16

84496486

YOKE

1шт.
