(27.106.030) - VAR - 330333 - DIFFERENTIAL GEAR, WET, DIFFERENTIAL LOCK

Запчасти Case IH FARMALL 120U (27.106.030) - VAR - 330333 - DIFFERENTIAL GEAR, WET, DIFFERENTIAL LOCK (27) - REAR AXLE SYSTEM

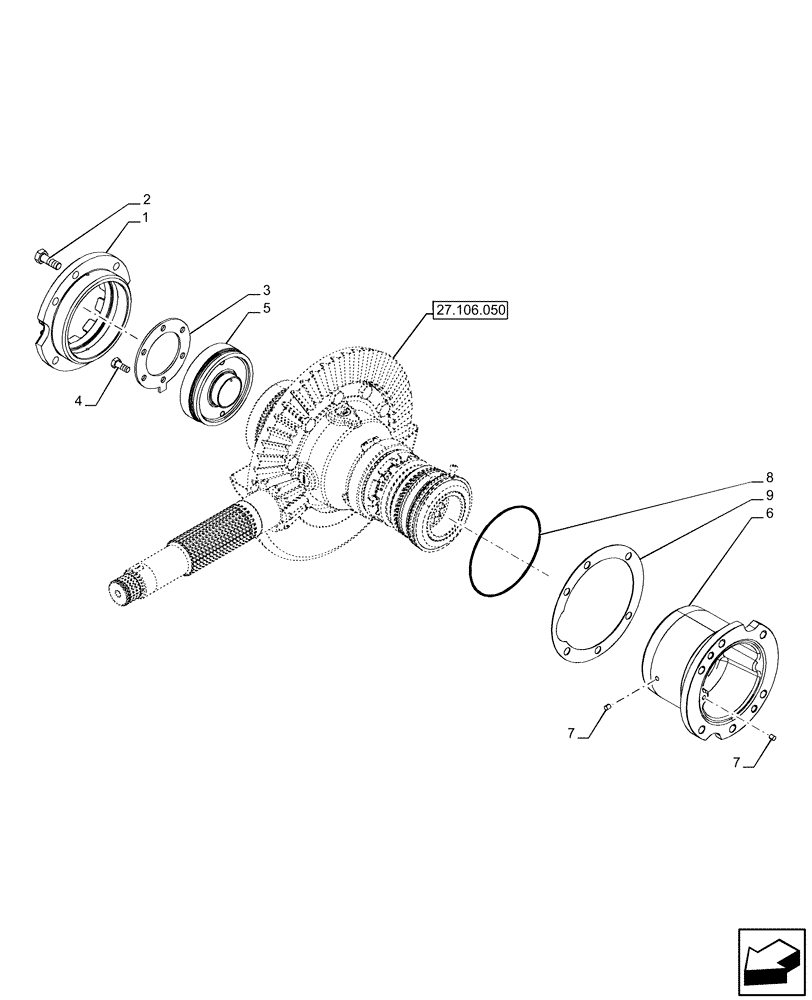

Схема запчастей Case IH FARMALL 120U - (27.106.030) - VAR - 330333 - DIFFERENTIAL GEAR, WET, DIFFERENTIAL LOCK (27) - REAR AXLE SYSTEM
27.106.050
6
4
2
8
3
1
9
5
7
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84558851

SUPPORT

RH

1шт.

2

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

3

84561304

STOP LOCK

1шт.

4

14238024

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

5

84554073

BEARING LOCK NUT

1шт.

6

47547823

SUPPORT

LH

1шт.

7

14536290

PLUG,6mm

2шт.

8

87564746

O-RING,0.103" Thk x 4.987" ID, -159, Cl 7, 75 Duro

1шт.

9

47480760

SHIM,136mm ID x 174mm OD x 1mm Thk

1шт.
