(25.122.030) - VAR - 744558, 758288, 758385, 758578 - SUSPENDED FRONT AXLE, CYLINDER

Запчасти Case IH FARMALL 120U (25.122.030) - VAR - 744558, 758288, 758385, 758578 - SUSPENDED FRONT AXLE, CYLINDER (25) - FRONT AXLE SYSTEM

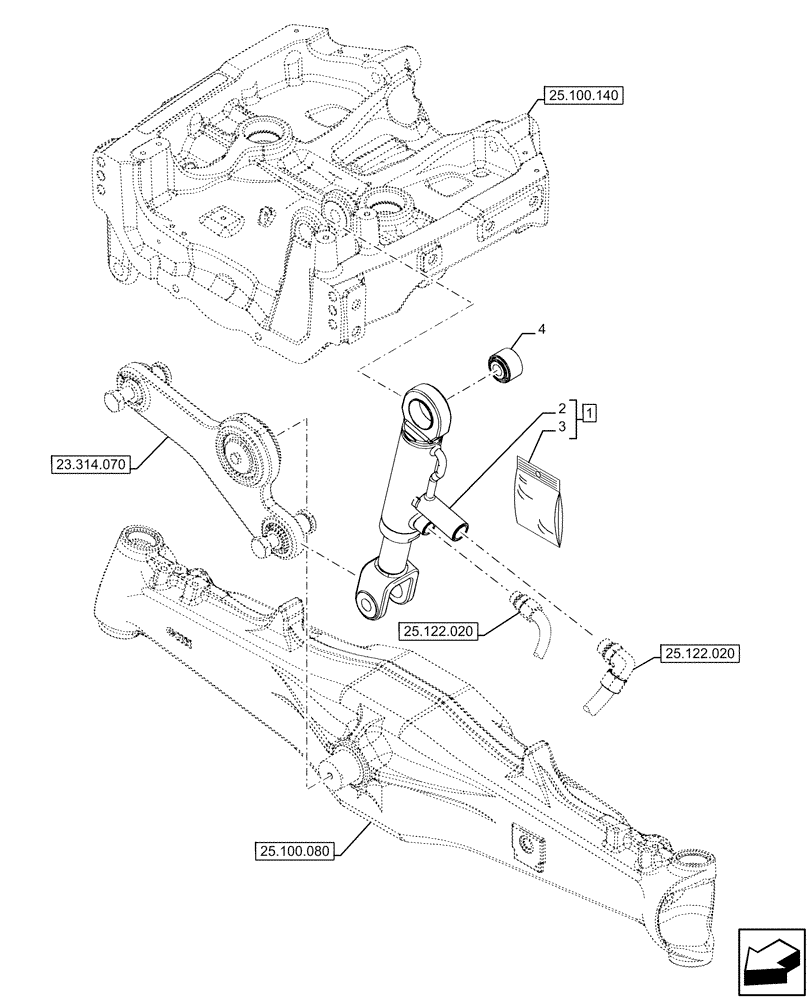

Схема запчастей Case IH FARMALL 120U - (25.122.030) - VAR - 744558, 758288, 758385, 758578 - SUSPENDED FRONT AXLE, CYLINDER (25) - FRONT AXLE SYSTEM
25.122.020
1
4
3
2
25.100.080
23.314.070
25.100.140
25.122.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47885483

LIFT CYLINDER

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder, Incl in 1

1шт.

3

47793355

SEAL KIT

1шт.

4

47672223

RUBBER BUSHING

1шт.
