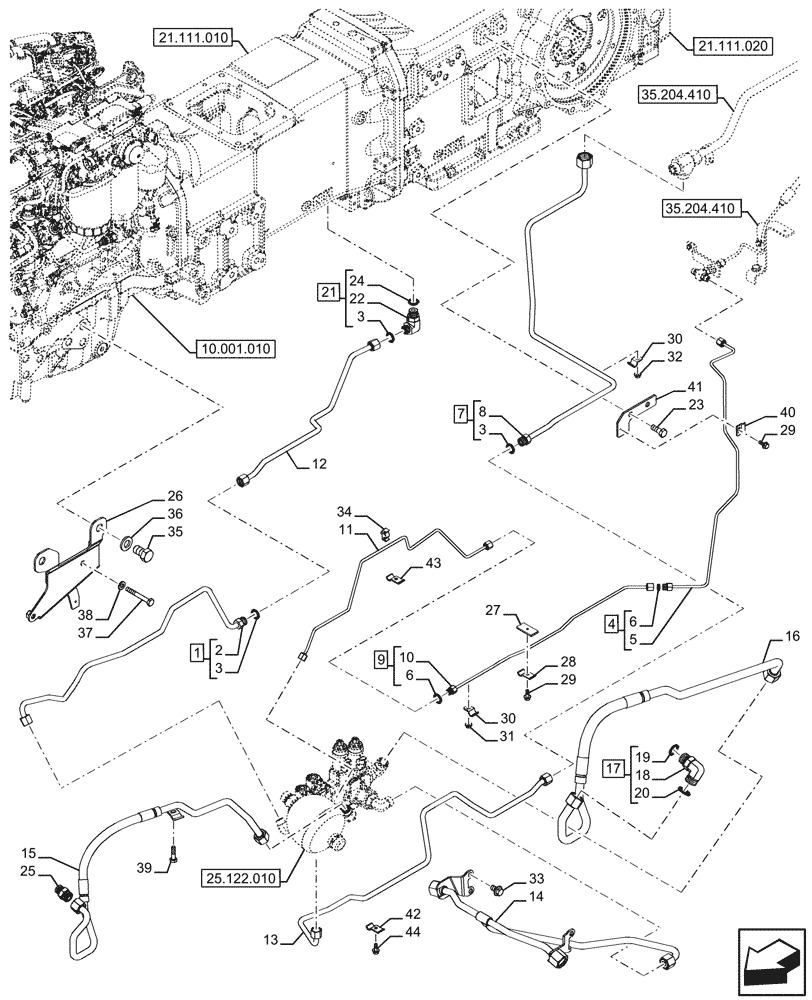

Запчасти Case IH FARMALL 120U (25.122.020) - VAR - 337707, 758604 - SUSPENDED FRONT AXLE, VALVE, LINES (25) - FRONT AXLE SYSTEM

1

47807211

PIPE

ASSY, Return from Valve, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Pipe, Incl in 1

1шт.

3

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

4

47662933

PIPE

ASSY, from Remote Control Valve to Control Valve, Incl 5, 6 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

Pipe, Incl in 4

1шт.

6

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

7

47746924

PIPE

ASSY, from Remote Control Valve to Control Valve, Incl 3 (Qty 1), 8

1шт.

8

NSS

NOT SOLD SEPARAT

Pipe, Incl in 7

1шт.

9

47807221

PIPE

ASSY, from Remote Control Valve to Control valve, Incl 6 (Qty 1), 10

1шт.

10

NSS

NOT SOLD SEPARAT

Pipe, Incl in 9

1шт.

11

47807216

PIPE

from Remote Control Valve to Control Valve

1шт.

12

47807226

PIPE

Return from Valve

1шт.

13

47807214

PIPE

Supply to Valve

1шт.

14

47801877

HYD TUBE

1шт.

15

47884770

HYD TUBE

1шт.

16

47885315

HYD TUBE

1шт.

17

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

ASSY, Incl 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

Elbow, Incl in 17

1шт.

19

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

20

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

21

86579692

90 ELBOW,90 Degree, 13/16"-18 ORFS x M22 x 1.5 ORB

ASSY, Incl 3 (Qty 1), 22, 24

1шт.

22

NSS

NOT SOLD SEPARAT

Elbow, Incl in 21

1шт.

23

15540524

SCREW,Hex, M12 x 1.25 x 35mm, Cl 8.8

2шт.

24

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

25

47509078

ELBOW

1шт.

26

47814942

BRACKET

1шт.

27

84534676

BRACKET

2шт.

28

47694596

BRACKET

2шт.

29

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

3шт.

30

84168456

CLAMP BRACKET

2шт.

31

14059214

FLANGE NUT,Hex, M6 x 6 Thd, Cl 8

1шт.

32

14059211

FLANGE NUT,M6 x 1, Flg, Cl 8

1шт.

33

87698844

BOLT,Hex, M12 x 1.75 x 20mm, Full Thd, Cl 10.9

3шт.

34

14581180

SPRING CLIP,2x6.3mm OD x 37mm L

1шт.

35

15987724

SCREW

2шт.

36

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

2шт.

37

15971421

BOLT,Hex, M10 x 1.25 x 80mm, Cl 8.8

2шт.

38

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

2шт.

39

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

1шт.

40

84604570

BRACKET

1шт.

41

47662981

BRACKET

1шт.

42

47885320

HOSE CLAMP

1шт.

43

47885321

HOSE CLAMP

1шт.

44

8446030

1шт.
