Запчасти Case IH FARMALL 120U (25.122.010) - VAR - 337707, 758604 - SUSPENDED FRONT AXLE, VALVE (25) - FRONT AXLE SYSTEM

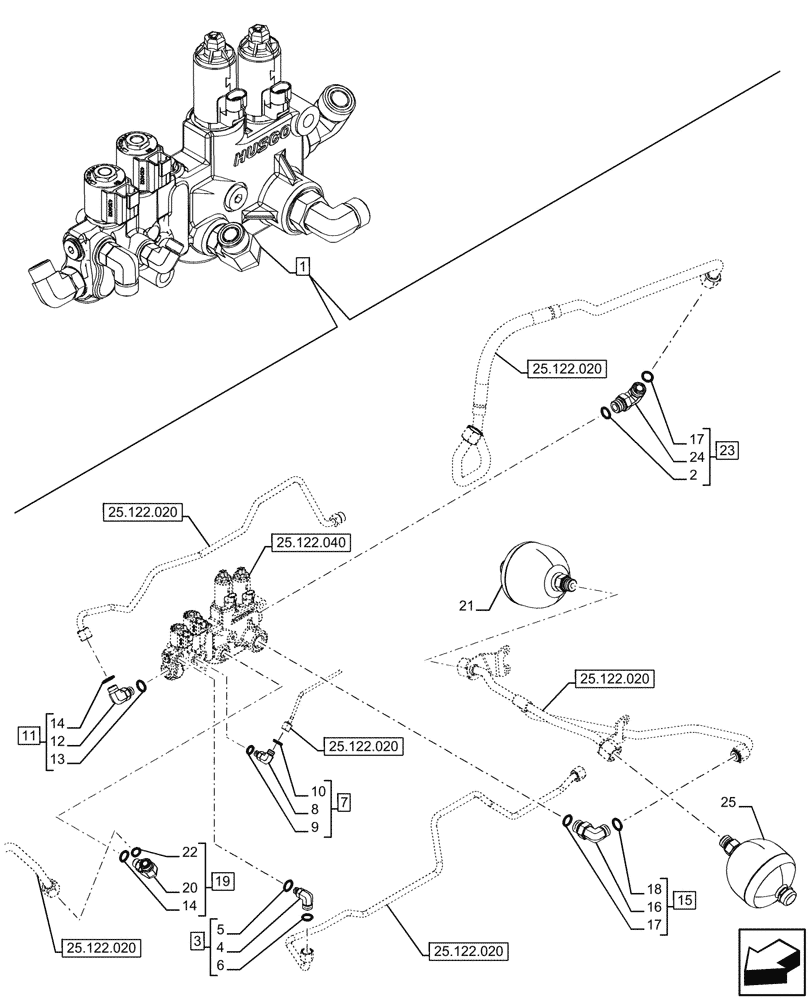

Схема запчастей Case IH FARMALL 120U - (25.122.010) - VAR - 337707, 758604 - SUSPENDED FRONT AXLE, VALVE (25) - FRONT AXLE SYSTEM
25.122.040
21
23
1
12
17
18
24
22
14
10
4
14
2
7
16
17
19
9
5
15
3
13
8
20
11
25
6
25.122.020
25.122.020
25.122.020
25.122.020
25.122.020
25.122.020

Артикул

Название

Примечание

Количество

1

47874391

CONTROL VALVE

ASSY, Incl 2 - 20, 22 - 24, 26

1шт.

2

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

3

86579689

ELBOW,90 Degree, 13/16" - 16 ORFS x M14 x 1.5 ORB

ASSY, Incl 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

Elbow, Incl in 3

1шт.

5

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

6

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

7

84431522

ELBOW,90 Degree, 9/16"-18 ORFS x M12 x 1.5 ORB

ASSY, Incl 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

Elbow, Incl in 7

1шт.

9

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

10

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

11

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

ASSY, Incl 12, 13, 14 (Qty 1)

1шт.

12

NSS

NOT SOLD SEPARAT

Elbow, Incl in 11

1шт.

13

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

14

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

15

84100209

90 ELBOW,1"-14 ORFS x M27 x 2 ORB

ASSY, Incl 16, 17 (Qty 1), 18

1шт.

16

NSS

NOT SOLD SEPARAT

Elbow, Incl in 15

1шт.

17

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

18

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

19

5185562

ELBOW

ASSY, Incl 14 (Qty 1), 20, 22

1шт.

20

NSS

NOT SOLD SEPARAT

Elbow, Incl in 19

1шт.

21

47821264

ACCUMULATOR

1шт.

22

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

23

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

ASSY, Incl 17 (Qty 1), 24, 26

1шт.

24

NSS

NOT SOLD SEPARAT

Elbow, Incl in 23

1шт.

25

47821259

ACCUMULATOR

1шт.

Выбрано товаров: 25
