Запчасти Case IH FARMALL 120U (25.108.150) - VAR - 337707 - ADVANCED, 4WD, SUSPENDED FRONT AXLE, W/O BRAKES, WHEEL HUB & STEERING KNUCKLE (25) - FRONT AXLE SYSTEM

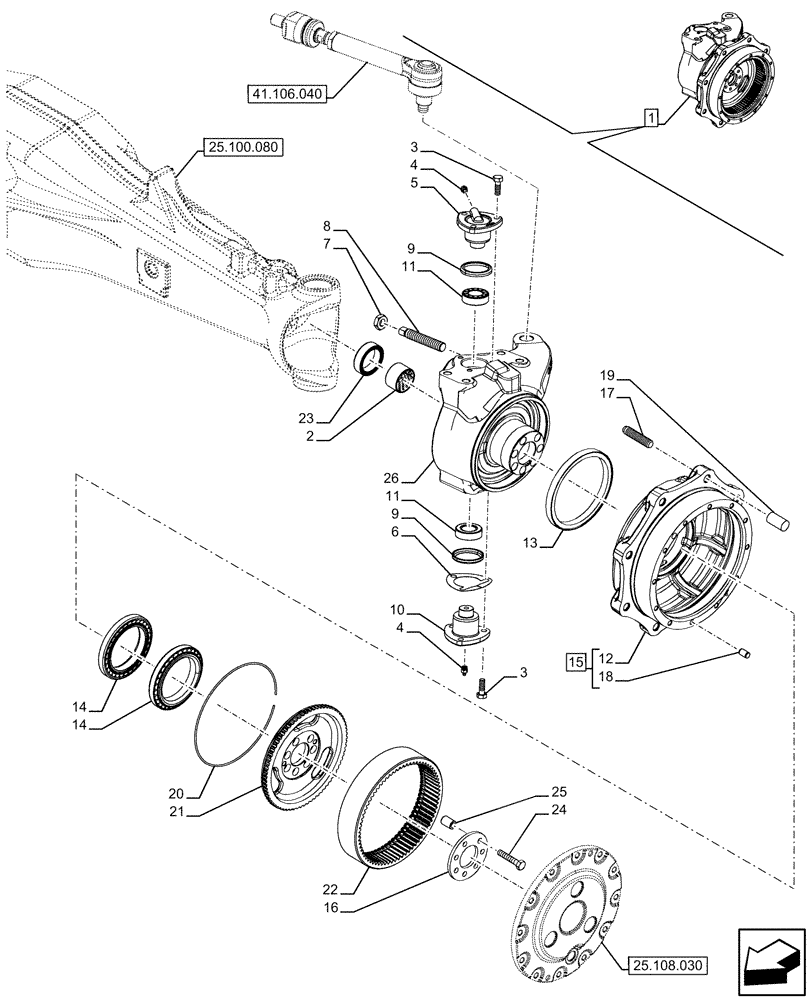

Схема запчастей Case IH FARMALL 120U - (25.108.150) - VAR - 337707 - ADVANCED, 4WD, SUSPENDED FRONT AXLE, W/O BRAKES, WHEEL HUB & STEERING KNUCKLE (25) - FRONT AXLE SYSTEM
41.106.040
20
8
13
12
16
15
10
23
3
24
21
2
7
6
9
1
17
14
11
5
3
11
22
4
19
25
4
26
14
9
18
25.108.030
25.100.080

Артикул

Название

Примечание

Количество

1

47523276

ASSY, Knuckle RH, Incl 2, 12 - 16, 18, 20 - 26

1шт.

1

47523263

ASSY, Knuckle LH, Incl 2, 12 - 16, 18, 20 - 26

1шт.

2

87529111

BUSHING,47.1mm ID x 51mm OD x 30mm L

2шт.

3

47945875

SERRATED BOLT

12шт.

4

13407211

LUBE NIPPLE,M10 x 1

4шт.

5

47945867

PIN

2шт.

6

5100789

SHIM,53mm ID x 86mm OD x 0.1mm Thk

1шт.

6

5100790

SHIM,53mm ID x 75mm OD x 0.15mm Thk

1шт.

6

5100791

SHIM,.20mm Thk

1шт.

6

5100792

SHIM,.25mm Thk

1шт.

6

5100793

SHIM,.30mm Thk

4шт.

7

10717624

THIN NUT,Thin, M18 x 2.5, Cl 05

2шт.

8

87471124

STUD,M18

2шт.

9

5122548

SEAL,50mm ID x 62mm OD x 7mm Thk

4шт.

10

47946592

PIN

2шт.

11

87523063

SPHERICAL BEARING,28mm ID x 52mm OD x 16mm W

4шт.

12

NSS

NOT SOLD SEPARAT

Hub, Incl 15

1шт.

13

87309584

OIL SEAL,165mm ID x 190mm OD x 16.5mm Thk

1шт.

14

47539809

TAPERED BEARING,95mm ID x 135mm OD x 20mm L

2шт.

15

47523254

ASSY, Incl 12, 18

1шт.

16

47805064

PLATE

1шт.

17

87618916

STUD

8шт.

18

4985063

DOWEL,12mm OD x 20mm L

2шт.

19

87671955

CAP,15.50mm ID x 22.00mm OD x 40.00mm

8шт.

20

87383414

SNAP RING

1шт.

21

47805062

CARRIER

1шт.

22

47523262

GEAR,72T

1шт.

23

47584791

SEAL,46mm ID x 65mm OD x 19mm Thk

1шт.

24

47797649

SCREW

7шт.

25

47805056

BUSHING

7шт.

26

47805054

KNUCKLE

RH

1шт.

26

47805051

KNUCKLE

LH

1шт.

Выбрано товаров: 32
