(25.108.140) - VAR - 337707 - ADVANCED, 4WD, SUSPENDED FRONT AXLE, W/O BRAKES, HALF SHAFT, COMPONENTS

Запчасти Case IH FARMALL 120U (25.108.140) - VAR - 337707 - ADVANCED, 4WD, SUSPENDED FRONT AXLE, W/O BRAKES, HALF SHAFT, COMPONENTS (25) - FRONT AXLE SYSTEM

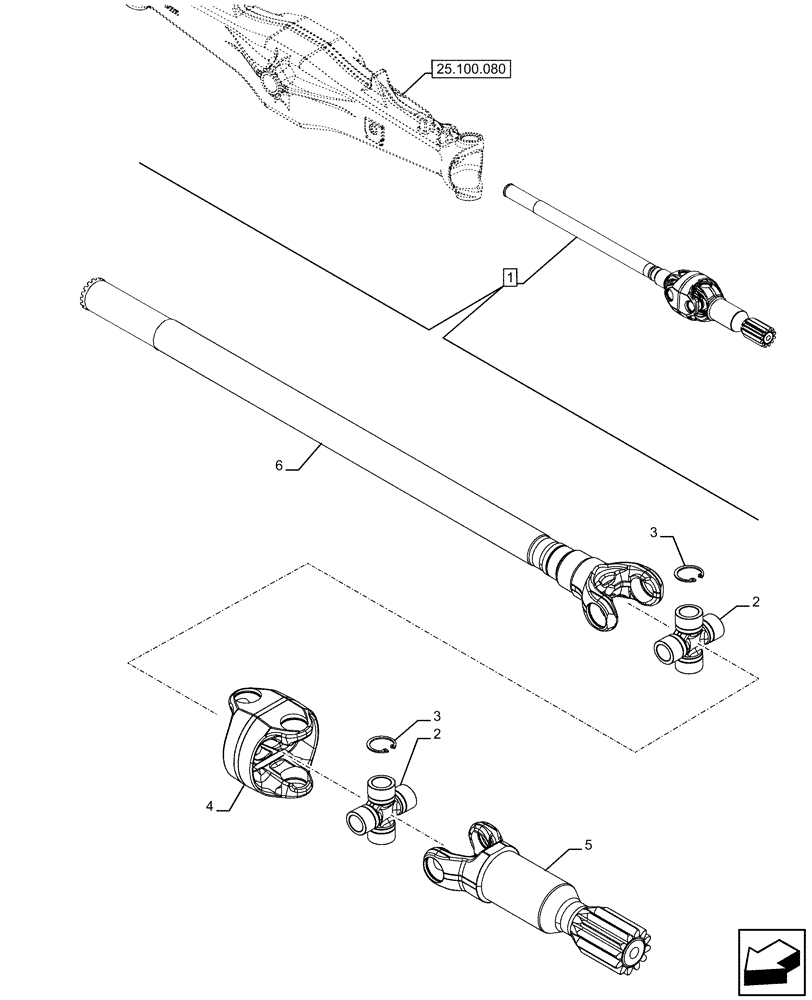

Схема запчастей Case IH FARMALL 120U - (25.108.140) - VAR - 337707 - ADVANCED, 4WD, SUSPENDED FRONT AXLE, W/O BRAKES, HALF SHAFT, COMPONENTS (25) - FRONT AXLE SYSTEM
25.100.080
6
3
4
2
3
5
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47523958

ARTICULATED SHAFT

ASSY, Shaft LH, Incl 2 - 6

1шт.

1

47523333

SHAFT

ASSY, Shaft RH, Incl 2 - 6

1шт.

2

5191457

SPIDER

2шт.

3

5191458

LOCKING RING

8шт.

4

47126200

YOKE

1шт.

5

47636690

YOKE

1шт.

6

47636691

YOKE

LH

1шт.

6

47636689

YOKE

RH

1шт.
