Запчасти Case IH FARMALL 120U (25.108.130) - VAR - 337707 - ADVANCED, 4WD, SUSPENDED FRONT AXLE, W/O BRAKES, HALF SHAFT (25) - FRONT AXLE SYSTEM

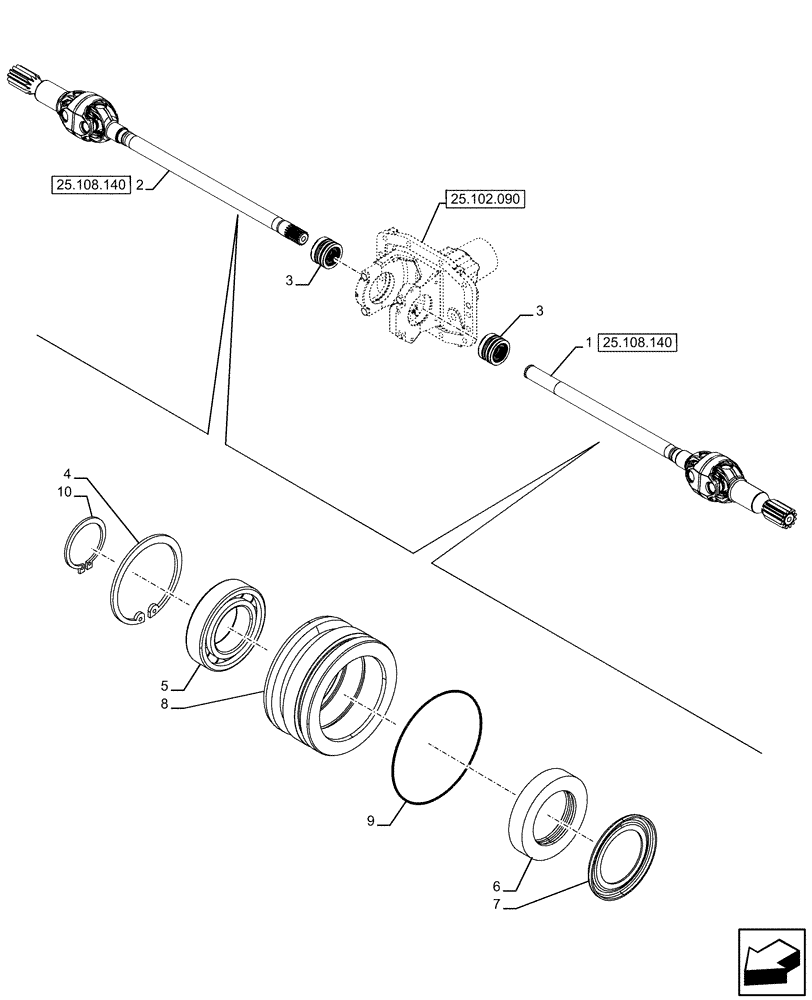

Схема запчастей Case IH FARMALL 120U - (25.108.130) - VAR - 337707 - ADVANCED, 4WD, SUSPENDED FRONT AXLE, W/O BRAKES, HALF SHAFT (25) - FRONT AXLE SYSTEM
25.102.090
7
3
3
5
6
9
8
10
4
2
1
25.108.140
25.108.140

Артикул

Название

Примечание

Количество

1

47523958

ARTICULATED SHAFT

1шт.

2

47523333

SHAFT

1шт.

3

NS

NOT SERVICED

2шт.

4

11060676

CIRCLIP,M55, Int

2шт.

5

28042460

BALL BEARING,30mm ID x 55mm OD x 13mm W

2шт.

6

47558301

SEAL,33mm ID x 52mm OD x 17mm Thk

35 x 52 x 18.5

2шт.

7

4997436

RETAINER,35.2mm ID x 55mm OD

2шт.

8

84351856

BUSHING,46mm ID x 75mm OD x 48mm L

2шт.

9

14464980

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

2шт.

10

11067876

SNAP RING,M30, Ext

2шт.

Выбрано товаров: 10
