(25.108.030) - VAR - 330308, 390399 - 4WD FRONT AXLE, PLANETARY GEAR

Запчасти Case IH FARMALL 120U (25.108.030) - VAR - 330308, 390399 - 4WD FRONT AXLE, PLANETARY GEAR (25) - FRONT AXLE SYSTEM

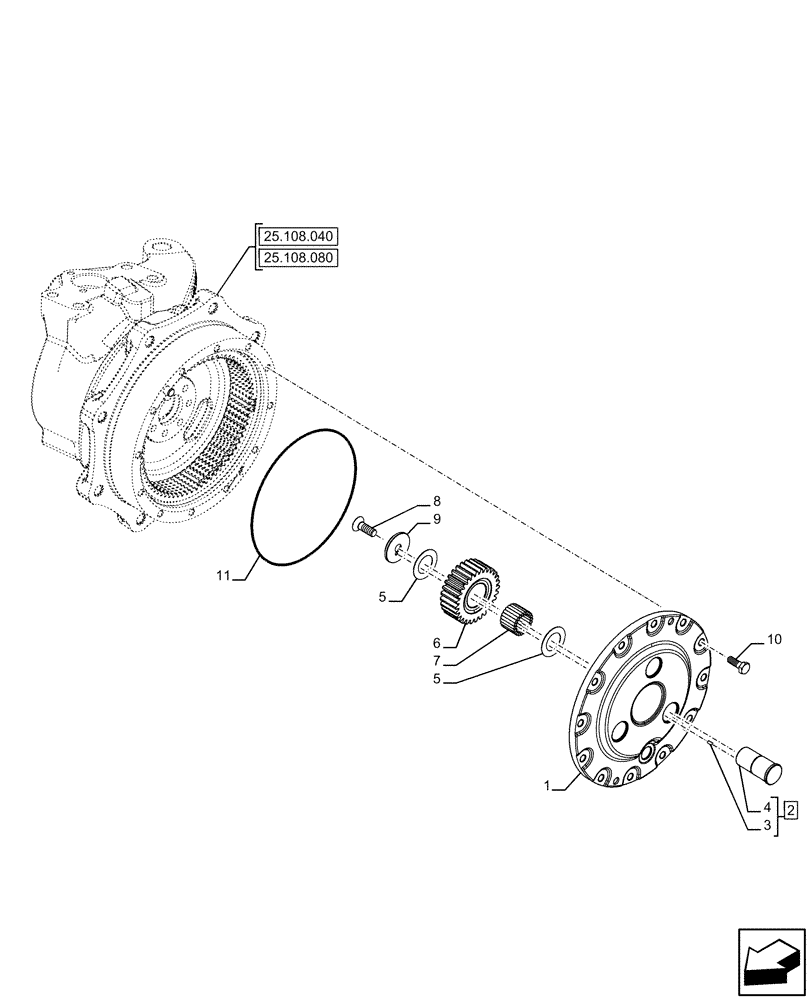

Схема запчастей Case IH FARMALL 120U - (25.108.030) - VAR - 330308, 390399 - 4WD FRONT AXLE, PLANETARY GEAR (25) - FRONT AXLE SYSTEM
25.108.040
9
6
11
10
1
5
3
2
5
7
8
25.108.080
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47929208

CARRIER

1шт.

2

47523344

PIN

ASSY, Incl 3, 4

3шт.

3

NSS

NOT SOLD SEPARAT

Pin, Incl in 2

1шт.

4

10333210

DOWEL,M4 x 10.00mm

1шт.

5

5145499

THRUST WASHER,30mm ID x 50mm OD x 0.8mm Thk

6шт.

6

47523351

PLANETARY GEAR,29T

3шт.

7

5145492

ROLLER BEARING,30.3mm ID x 40.3mm OD x 29.8mm W

3шт.

8

87571800

HEX SOC SCREW,M12 x 1.25 x 35mm

3шт.

9

87660404

SPACER

3шт.

10

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

11

9823349

O-RING,0.139" Thk x 9.484" ID, -272, Cl 5, 75 Duro

1шт.
