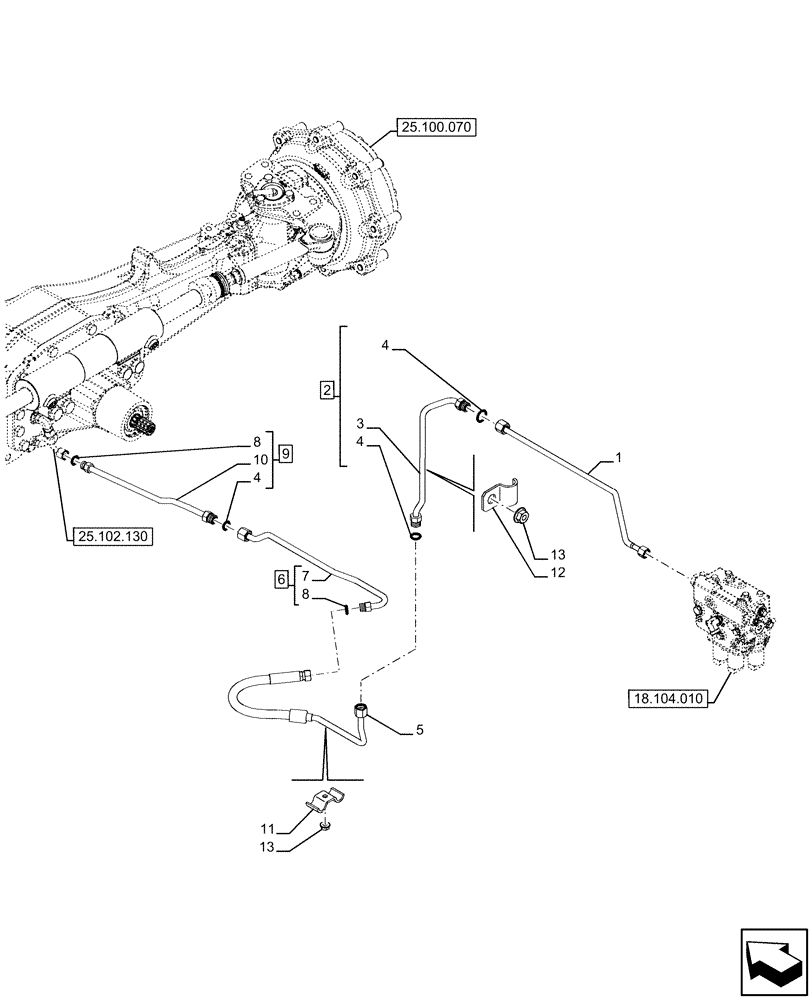

Запчасти Case IH FARMALL 120U (25.102.140) - VAR - 337707, 758604 - ELECTROHYDRAULIC DIFFERENTIAL LOCK, OIL LINE (25) - FRONT AXLE SYSTEM

1

84577728

TUBE

from Pto Clutch Valve to Differential Lock

1шт.

2

47674290

PIPE

ASSY, from Pto Clutch Valve to Differential Lock, Incl 3, 4 (Qty 2)

1шт.

3

NSS

NOT SOLD SEPARAT

Pipe, Incl in 2

1шт.

4

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

5

47803304

PIPE

from Pto Clutch Valve to Differential Lock

1шт.

6

47858703

PIPE

ASSY, from Pto Clutch Valve to Differential Lock, Incl 7, 8 (Qty 1)

1шт.

7

NSS

NOT SOLD SEPARAT

Pipe, Incl in 6

1шт.

8

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

9

47858482

PIPE

ASSY, from Pto Clutch Valve to Differential Lock, Incl 4 (Qty 1), 8 (Qty 1), 10

1шт.

10

NSS

NOT SOLD SEPARAT

Pipe, Incl in 9

1шт.

11

44906584

RETAINER COLLAR,12mm ID

1шт.

12

84168456

CLAMP BRACKET

1шт.

13

14059214

FLANGE NUT,Hex, M6 x 6 Thd, Cl 8

M6

2шт.
