Запчасти Case IH FARMALL 120U (25.102.120) - VAR - 330308, 758331 - ELECTROHYDRAULIC DIFFERENTIAL LOCK, OIL LINE (25) - FRONT AXLE SYSTEM

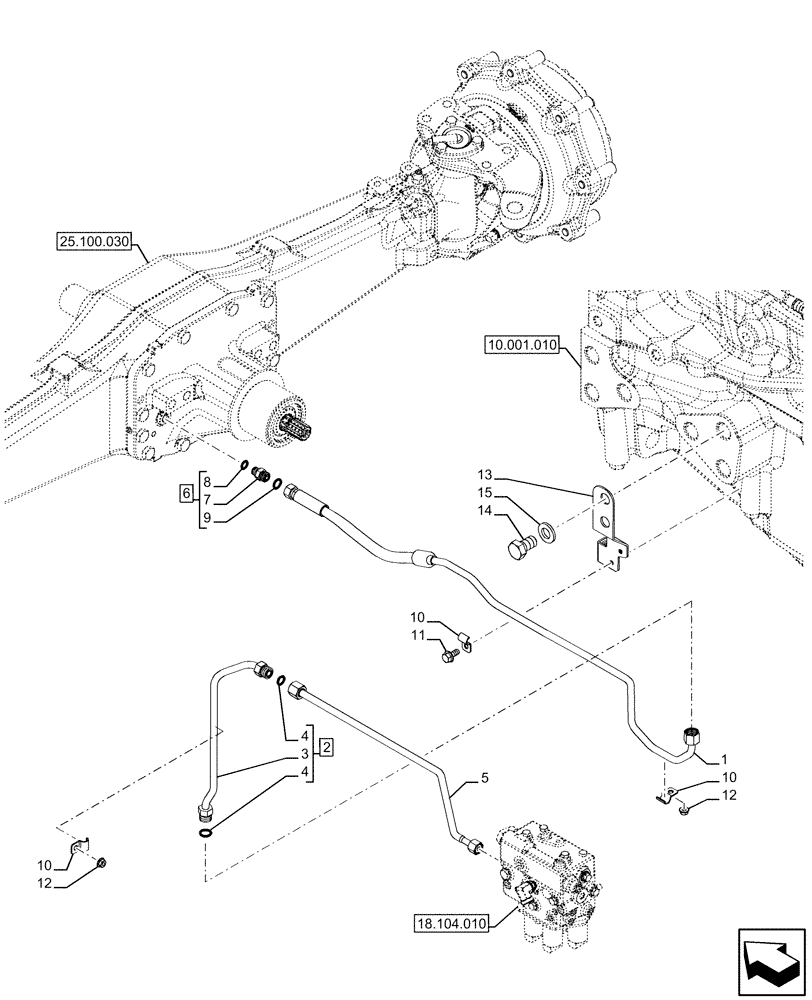

Схема запчастей Case IH FARMALL 120U - (25.102.120) - VAR - 330308, 758331 - ELECTROHYDRAULIC DIFFERENTIAL LOCK, OIL LINE (25) - FRONT AXLE SYSTEM
25.100.030
4
4
1
10
5
2
7
15
6
8
13
9
3
12
12
10
10
11
10.001.010
18.104.010
14

Артикул

Название

Примечание

Количество

1

47859448

PIPE

from Pto Clutch Valve to Front Axle

1шт.

2

47674290

PIPE

ASSY, from Pto Clutch Valve to Front Axle Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Pipe, Incl in 2

1шт.

4

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

5

84577728

TUBE

from Pto Clutch Valve to Front Axle

1шт.

6

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

ASSY, Incl 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

Incl in 6

1шт.

8

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

10

84168456

CLAMP BRACKET

3шт.

11

16296924

FLANGE BOLT,Hvy Hex, M6 x 14mm, Cl 8.8, Full Thd

1шт.

12

14059214

FLANGE NUT,Hex, M6 x 6 Thd, Cl 8

2шт.

13

47714356

BRACKET

1шт.

14

15987724

SCREW

M20 x 35

2шт.

15

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

2шт.

Выбрано товаров: 15
