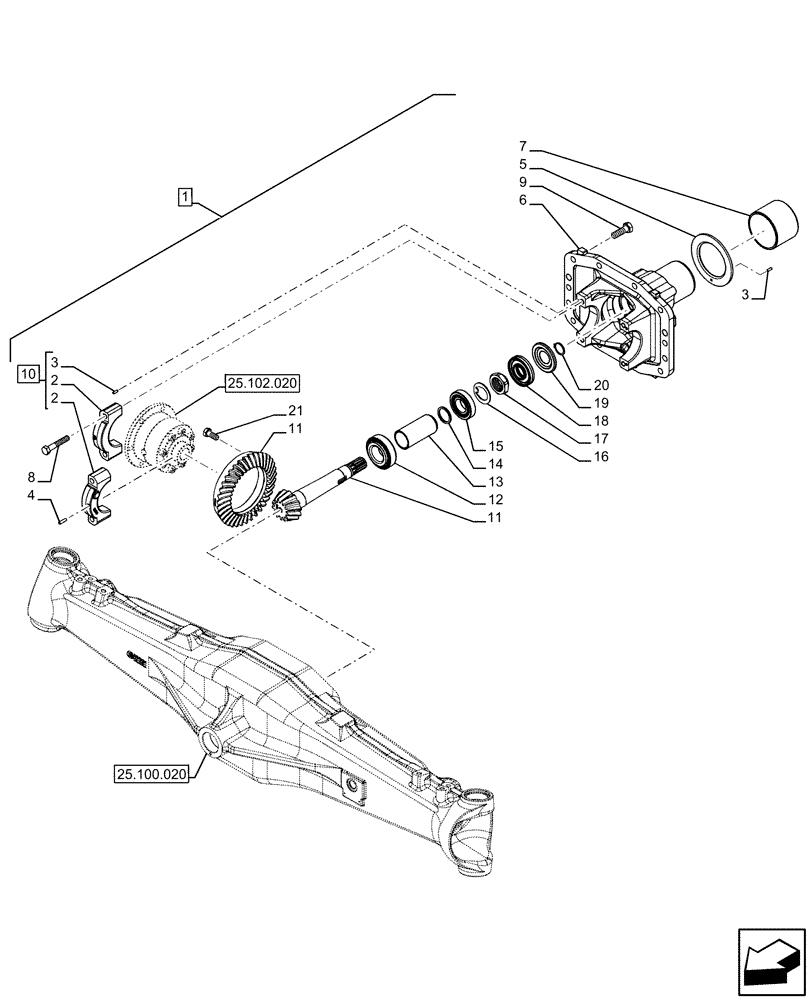

Запчасти Case IH FARMALL 120U (25.102.010) - VAR - 390399 - 4WD FRONT AXLE, BEVEL GEAR, DIFFERENTIAL CARRIER, SUPPORT (25) - FRONT AXLE SYSTEM

1

84541020

SUPPORT

ASSY, Incl 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

Incl in 10

2шт.

3

4966244

PIN,5mm OD x 15mm L

2шт.

4

14275331

LOCK BOLT,Hex, M12 x 1.25 x 70mm, Cl 10.9

4шт.

5

5136119

RING,90.3mm ID x 136mm OD x 5mm Thk

1шт.

6

NSS

NOT SOLD SEPARAT

Support, Incl in 1

1шт.

7

5136120

BUSHING,90mm ID x 99.05mm OD x 72mm L

1шт.

8

13798231

SET SCREW,Hex Skt, M6 x 25mm, Cl 10.9, Full Thd, Cone Pt

2шт.

9

11394334

BOLT,Hex, M14 x 1.5 x 45, 8.8, Full Thd

12шт.

10

87383437

SUPPORT

ASSY, Incl 2, 3

2шт.

11

84541015

BEVEL GEAR,13/36

1шт.

12

87387938

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

1шт.

13

84477817

SPACER

1шт.

14

4997456

SHIM,35.1mm ID x 43mm OD x 2.5mm Thk

1шт.

14

5129151

SHIM,35.1mm ID x 43mm OD x 2.55mm Thk

1шт.

14

4997457

SHIM,35.1mm ID x 43mm OD x 2.6mm Thk

1шт.

14

5129152

SHIM,35.1mm ID x 43mm OD x 2.65mm Thk

1шт.

14

4997458

SHIM,35.1mm ID x 43mm OD x 2.7mm Thk

1шт.

14

5129153

SHIM,35.1mm ID x 43mm OD x 2.75mm Thk

1шт.

14

4997459

SHIM,35.1mm ID x 43mm OD x 2.8mm Thk

1шт.

14

5129154

SHIM,35.1mm ID x 43mm OD x 2.85mm Thk

1шт.

14

4997460

SHIM,35.1mm ID x 43mm OD x 2.9mm Thk

1шт.

14

5129155

SHIM,35.1mm ID x 43mm OD x 2.95mm Thk

1шт.

14

4997461

SHIM,35.00mm ID x 43.00mm OD x 3.00mm T

1шт.

14

5129156

SHIM,35.00mm ID x 43.00mm OD x 3.05mm T

1шт.

14

4997462

SHIM,35.00mm ID x 43.00mm OD x 3.10mm T

1шт.

14

5129157

SHIM,35.00mm ID x 43.00mm OD x 3.15mm T

1шт.

14

4997463

SHIM,35.00mm ID x 43.00mm OD x 3.20mm T

1шт.

14

5129158

SHIM,35.00mm ID x 43.00mm OD x 3.25mm T

1шт.

14

5101234

SHIM,35.00mm ID x 43.00mm OD x 3.30mm Thk

1шт.

14

5129159

SHIM,35.00mm ID x 43.00mm OD x 3.35mm T

1шт.

14

5101235

SHIM,35.00mm ID x 43.00mm OD x 3.40mm T

1шт.

14

5129160

SHIM,35.00mm ID x 43.00mm OD x 3.45mm Thk

1шт.

14

5101236

SHIM,35.00mm ID x 43.00mm OD x 3.50mm Thk

1шт.

14

5129161

SHIM,35.00mm ID x 43.00mm OD x 3.55mm T

1шт.

14

5101237

SHIM,35.00mm ID x 43.00mm OD x 3.60mm T

1шт.

14

5129162

SHIM,35.00mm ID x 43.00mm OD x 3.65mm T

1шт.

14

5101238

SHIM,35.00mm ID x 43.00mm OD x 3.70mm T

1шт.

14

5169313

SHIM,35.10 - 35.40mm ID x 43mm OD x 3.75mm Thk

1шт.

14

5169314

SHIM,35.10 - 35.40mm ID x 43mm OD x 3.80mm Thk

1шт.

14

5169315

SHIM,35.10 - 35.40mm ID x 43mm OD x 3.85mm Thk

1шт.

14

5169316

SHIM,35.10 - 35.40mm ID x 43mm OD x 3.90mm Thk

1шт.

14

5169317

SHIM,35.10 - 35.40mm ID x 43mm OD x 3.95mm Thk

1шт.

14

5169318

SHIM,35.1mm ID x 43mm OD x 4mm Thk

1шт.

14

5169319

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.05mm Thk

1шт.

14

5169320

SHIM,35.1mm ID x 43mm OD x 4.1mm Thk

1шт.

14

5169321

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.15mm Thk

1шт.

14

5169322

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.20mm Thk

1шт.

14

5169323

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.25mm Thk

1шт.

14

5169324

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.30mm Thk

1шт.

14

5169325

SHIM,35.1mm ID x 43mm OD x 4.35mm Thk

1шт.

14

5169326

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.40mm Thk

1шт.

14

5169327

SHIM,35.1mm ID x 43mm OD x 4.45mm Thk

1шт.

14

5169328

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.50mm Thk

1шт.

14

5169329

SHIM,35.1mm ID x 43mm OD x 4.55mm Thk

1шт.

14

5169330

SHIM,35.1mm ID x 43mm OD x 4.6mm Thk

1шт.

14

5169331

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.65mm Thk

1шт.

14

5169332

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.70mm Thk

1шт.

14

5169333

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.75mm Thk

1шт.

14

5169334

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.80mm Thk

1шт.

15

26799950

TAPERED BEARING,35mm ID x 72mm OD x 18.25mm W

1шт.

16

84285936

SPECIAL WASHER

1шт.

17

84289068

CROWN NUT,M35 x 1.5

1шт.

18

87349652

SEAL,32.5mm ID x 75mm OD x 15mm Thk

1шт.

19

87527839

SEAL PROTECTION

1шт.

20

11067776

SNAP RING,M29, Ext

1шт.

21

14274434

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.
